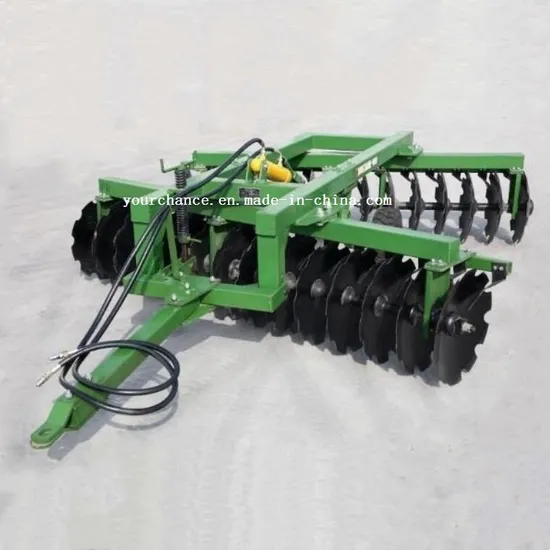

Hot Sale 1bz-1.8 65-90HP Tractor Trailed 1.8m Width 16 Discs Hydraulic Offset Heavy Duty Disc Harrow

Product Description

Hot sale 1BZ-1.8 65-90HP tractor trailed 1.8m width 16 discs Hydraulic Offset Heavy duty Disc harrow
Main Features and Usage:
1BZ series hydraulic trailed offset heavy-duty disc harrow is mainly applicable to clear the crop residue before tillage,break the hardened and impervious soil surface, crush and spread straw into the field, shatter soil after tillage, and level the land and preserve soil moisture.
It can be used as tillage machine instead of plough on the cultivated land. With the efficient productivity, reasonable utilization of the power, great ability of cutting and shattering the soil , the soil surface is smooth and loosening after harrowing, it is well suitable for heavy clay soil, waste land and weedy field as well.
Having absorbed all advantages from such machines of foreigners and Chinese, it is designed according to the standard assembled structure, the main frame is welded with rectangular tubes, on which assembled with hydraulic lifting transportation wheels, adjustable spring device and special used bearing assemblies.
Therefore this machine is strong and durable for operation and easy to be adjusted and maintained with the reasonable structure, small turning radius ,and is convenient for transportation , etc.
Main Technical Parameters and Specification :

Model	1BZ-1.8	1BZ-2.0	1BZ-2.2	1BZ-2.5	1BZ-3.0	1BZ-3.4	1BZ-4.0	1BZ-5.3
Working width (m)	1.8	2.0	2.2	2.5	3.0	3.4	4.0	5.3
Working depth (mm)	200
No. of disc (pcs)	16	18	20	24	28	32	36	48
Space of Disc (mm)	230
Diameter of disc (mm)	660
Transport clearance (mm)	>160
Max. working angle	23°
Linkage	Trailed
Productivity (Ha/h)	1.0	1.1	1.3	1.4	1.7	1.9	2.4	3.0

1BZ Series Disc harrow main Features and Specification :
Disc harrow by Iron crate packing:
High quality Disc harrow have ISO,CE, PVOC COC, CO etc certificates:
Best price will be quoted for you as soon as receive your Requirement !
