US$700.00-1,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Plant Name
Screw Oil Press,Soybean Oil Extractor Machine
Capacity
1ton Per Day for Seeds
Raw Material
Peanut,Canola,Groundnut,Sunflower Seed,Mustard
Function
Extract Crude Oil From Oil Seed by Worm Pressure
Shaft Speed
38rpm for Zx60,42rpm for Zx85
Oil Seed Processing
Cleaner,Roaster,Press,Filter,Refinery
Transport Package
Wooden Package
Production Capacity
200sets Per Month
Product Description

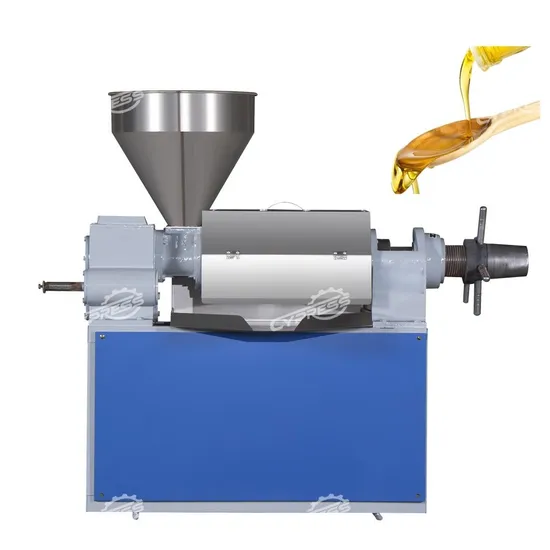

YZYX60 YZYX85 Screw oil press soybean oil extractor mustard oil making machine
Product Description
YZYX series screw oil press is suitable for pressing rapeseed,cottonseeds,soybean,peanut,sesame,tea seed,flaxseed other oil seeds.
Working Principle
The working principle of the oil press is mainly to extract oil from the oil by physical pressing. The oil press usually adopts the screw pressing method. The oil enters the pressing chamber from the hopper. Through the rotation and advancement of the screw shaft, the oil is subjected to high pressure and high friction, thereby squeezing out the oil.
Product Parameters
model;YZYX60 Main power:3kw Capacity:1ton per day Shaft speed:38rpm Size:1020*400*1180mm Weight:150kg | Model:YZYX85 capacity:1.8ton/day Main power:5.5kw Shaft speed:42rpm Size:1085*500*1130mm Weight:250kg | Model:YZYX95-10 capacity:4.5t/day Main power:7.5kw-11kw Shaft speed:30rpm Size:1650*500*1320mm Weight:500kg | Model:YZYX120 capacity:6.5t/day Main power:11-15kw Shaft speed:30rpm Size:1800*500*1400mm Weight:600kg | Model:YZYX130 Capacity:10ton/day Main power:18.5kw Size:1900*650*1600mm Shaft speed:34rpm Weight:800kg | Model:YZYX150 Capacity:12t/day Main power:22kw Shaft speed:34rpm Size:2100*650*1600mm Weight:900kg |
Detailed Photos
