High Quality Fipfg PU Foam Gasket Machine with German Technology

Product Description

JINJIE FIPFG (Form In Place Foam Gasket) Machine details: Product Description
High quality FIPFG PU Foam Gasket Machine with German Technology
This equipment can produce and glue sealing strips automatically; it can mix two or three kinds of raw material together and pour to pre-set position, groove, mould, or the surface of workpiece etc directly. Through chemical reaction, the liquid raw materials form elastic sealing strip in seconds. There is no joint or cut point, so comparing with other kind of sealing its effect is much better. And, during the forming process, the sealing strip surface become very smooth and without any crack, so its sealing effect is perfect. And, because it can stick on the workpiece naturally and tightly, no gluing worker is needed, huge cost is saved from labor and time, etc.
Foam sealing equipment is used more and more in sealing fields like controlling cabinets, lighting, motor vehicle, machining industry, etc. It is leak proof, oil proof, water proof, damping, noise proof, and sealing, etc. It is in accordance with certifications like UL/CE, MIL-STD-167, EN50298, and so on.

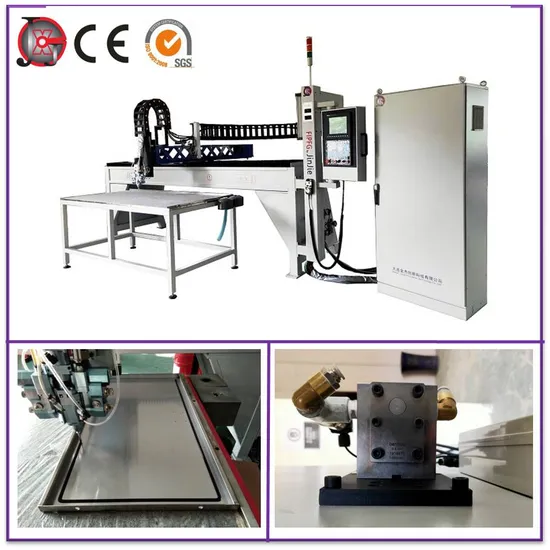

Overall Appearance
Advantages 1. Mixing Head: German technology, easy to maintain and clean, Patents. 2. Quality & Price: top level quality with competitive price 3. Clean: Water. 4. Control system: CNC system, Windows, 3D mode, very easy to learn and operate. 5. Gasket width: 5-30mm for standard type, 2-8mm for micro type; 6. Work Stroke: 3D, X*Y*Z=2400*1200*200mm or specified. Product Parameters

3-Axis Robot	3500W*3000D*2500H mm
Work Bench	2000W*900D*850H mm
Material Tanks	1250W*800D*1400H mm
Control Cabinet	1000W*600D*2050H mm
Floor Area	6000W*5000D*2500H mm
Work Stoke	3D, 2400X*1200Y*250Z mm
Gasket Width	5-30mm
Work Speed	0-12m/min
Work Precision	0.01mm
Power	4.5KW
Operation Pressure	0-2MPa
Power Supply	380V, 50HZ
Operate Mode	Automatic or Manual
Clean	Water Rinsing

Detailed Photos
Main parts Details 1. Mixing Head Modular design with technology origins from Germany, be made of aviation aluminum, comes with automatic valves, no mechanical valves outside. Nozzle locking system "Stop-Drop DVS-3" is controlled by using axial movable drive shaft, it is anti dripping, maintenance-free, etc. 2. Water Cleaning System Patented high pressure water rinsing system, environment-friendly; with special anti-sticking coating treatment inside the mixing head, good for continuous working, especially for automatic production lines. 3. Operation system Taiwan Syntec CNC operation system, Windows system, 3D working mode. Automatic control, response quick and steady, strong anti-inference capability, very low failure rate. Colorful LED screen matches with key pad and hand controller, very easy to operate. Convenient program input modes: internal storage for common graphs, CAD drawings input through storage card, G-code, or manual test. The programs and processing data can be stored. Different language is optional. 4. Dosing System German Barmag metering pumps, Brand Servo Motor, etc. High quality pressure transmitter and pressure show tables to guarantee the gasket uniformity. The Raw Material Barrels are Double-deck stainless steel tanks, 40L, with sensitive liquid level alarm. Automatic mixing and air entraining function for A tank. (guarantee the foam gasket quality). Durable material pipes, etc. Certifications
Applications
Fields request for high standard dustproof, moisture proof, waterproof, shock absorption or damping functions like electrical cabinets, vehicle, appliances, lighting, filter, package, etc. 1. Electrical cabinets: control cabinet, switch cabinet, explosion-proof tank, distribution cabinet, electric cases, switch box, etc.2. Vehicle: car body, car door, windshield, engine cover, air vent, horn, lighting, etc.3. Lighting: indoor lighting, outdoor lighting, automotive lighting, LED lighting, etc.4. Appliances: Cleaner, air conditioner, television, induction cooker, etc.5. Others: filter, small case, package box, door lock, phone shell, etc.
