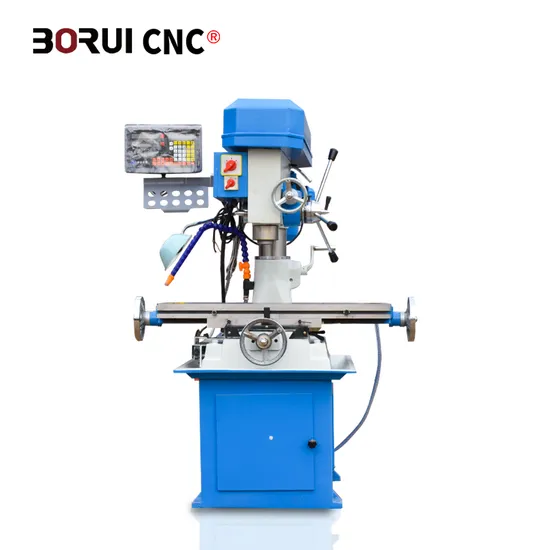

Zxtm-40 Small Drilling and Milling Machine

Product Description

ZXTM-40 China Cheapest Mini Economic High Precision Drilling Machine Product Description
The ZXTM-40 drilling and milling especially suitable for all kinds of small and medium sized parts processing, especially metal materials, plastic, nylon cutting, the structure is simple, flexible operation, etc. Widely used for single piece or the bulk of the mechanical manufacturing; Instrument industry; Building decoration and repair match means department.
The main feature :
1.ZXTM-40 milling machine has a milling; drilling; boring; milling; tapping and other machining functions.
2. This machine uses a belt drive, low noise, suitable for a variety of commonly used materials in drilling, expanding, reaming and milling.
3.This machine has 12 variable speed, wide speed range, suitable for all kinds of hard and soft materials commonly used process.
4.The headstock and worktable can lift, but also around the column rotation, expanding the range of processing.
5. The body steady and strong.
6.ZXTM-40 drilling and milling machine can be equipped with multi-axis according to user needs be porous while drilling, expanding, reaming, tapping.
The main specification :

Model	ZXTM40
Max. Drilling Dia. (mm)	40
Max. Horizontal Milling Dia.	100
Max. Vertical Milling Dia.	20
Distance from Spindle Nose to Table	550
Distance from Spindle Axis to Column	300
Spindle Travel	120
Spindle Taper	MT4
Spindle Speed Range	(9 step) 168-3168
Table Size (mm)	800*240
Table Travel (mm)	400*250
Main Motor Power (KW)	1.5
N.W./G.W.(Kg)	410/460

Standard accessories: Optional accessories :
1.Drilling Chuck 1. Coolant.
2. Milling Chuck 2. Halogen work ligh
3.V-Belt (on machine) 3. Electric power feed on X-axis.
4.Hexagon Spanner 4.Clamping kit
5.Wedge Shifter
6.Reduction Sleeve
7.Draw Bar
8.Wrench
9.Grinding Wheel
10.Boring Bar
11.Spindle bar
12.Machine Vice(125)
13.Quanlity certificate
14.Operation Manual
15.Packing list
Details Display
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
Since 1996,20 years' history for machine tool manufacturing
10 years' history for export
Total 2 manufacturing bases in china
Sino-germany technology cooperation
Production of 8 categories, more than 130 kinds of products
Set up design&research center at TAIWAN
Exported to total 48 countries in the world covered most areas
One-stop shopping for nearly all other types' machine tools
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
