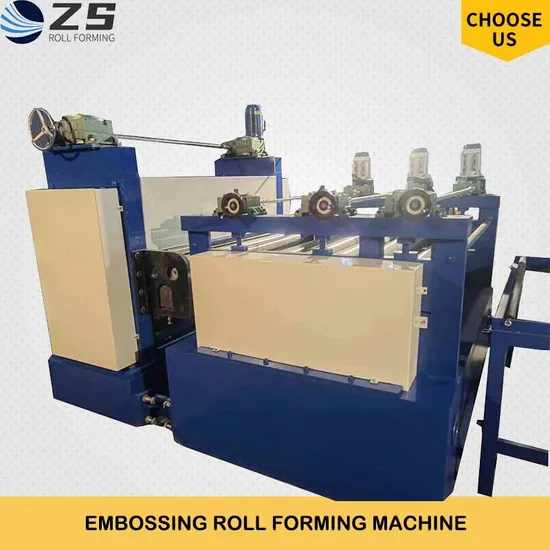

Metal Sheet-Roll Single Side Wood Grain Embossing Machine and Leveller

Product Description

Product Description

Material Metal Sheet Embossing Machine Embossing machine is used to press partten through the up and down roller.We will make the machine design according to your coil or metal sheet width, raw material, thickness and other require. Also the embossing depth can be design if you have needed for this point. About the partten, you can send me your partten or we can recommand you some normal type.
We can customize many kinds of design follow with your requirements:
Product parameter
Material (where applied to the figure): stainless steel/Carbon steel
• Harvesting before stamping sheet.
• Material sheet stamping: sheet 0.8-1.5mm/1.5-5.0mm
• Billet size (sheets): 1250 mm x 2500 mm.
• Sheet metal thickness (where it leaves an imprint): from 0.5 to 5.0 mm.
• Depth footprint (the depth of the picture after embossing): 50 microns = 1/20 mm = 0,05 mm.
• Speed stamping: not important (but not less than 3 metres per minute).
• Type of stamping: unilateral model rolling. (Figure applied only on the front side. Back ready sheet, remains smooth and clean.)
• Roller type: removable. (That we could change the picture.)
• In the proposal. Specify the cost of additional rollers.

el	ZS-1000	ZS-1400	ZS-1600	ZS-1900
Overall size(mm)	2900*1200*1500	3300*1200*1500	3500*1200*1500	3800*1200*1500
Roller size	φ350*1000mm	φ380*1400mm	φ400*1600mm	φ450*1900mm
Material of roller	42CrMo	42CrMo	42CrMo	42CrMo
Roller hardness	HRC55-58	HRC55-58	HRC55-58	HRC55-58
Way of embossing	Both up and down rollers embossing	Both up and down rollers embossing	Both up and down rollers embossing	Both up and down rollers embossing
Embossing regulation	By screw	By screw	By screw	By screw
Motor power(KW)	7.5	11	15	15
Line speed	0-18m/min	0-30m/min	0-40m/min	0-45m/min

Detail Photos:
With feeding material guide, body frame made from H450 type steel by welding Side wall thickness: Q235 t30mm ; Tie rod:ф22 Galvanized Rollers manufactured from Cr42mov steel,CNC lathes,Heat Treatment,hard Chrome Coated with thickness 0.04mm,surface with mirror treatment The warranty for the rollers is 2 years Shafts Diameter=ф90 mm,precision machined Gear/Sprocket driving,about 21-step to form(19-step to form and 3 step for final shaping). Main Motor=15KW , Frequency speed control Speed redcucer motor:K series; Size changing motor:6pcs, Automatically controlled by PLC Programing. Sliding block:150*150mm; All the screw bolts with grade 8.8 Real forming speed 20m/min (depending on the number of punching holes)With squareness roller setup
