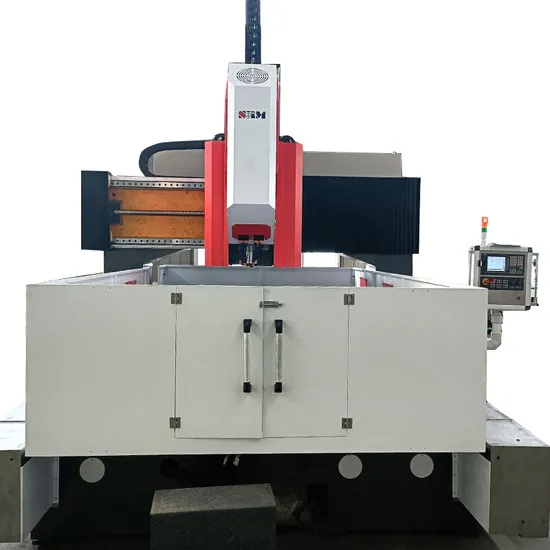

Phd2016 Chinese Suppliers High Speed Plate Drilling Machine

Product Description

PSD2016 Chinese Suppliers High Speed Plate Drilling Machine
Product Description
Product Parameters

Model		PSD2016	PSD2020	PSD3016	PSD4030
Workpiece size	LengthxWidth(mm)	2000*1600	2000*2000	3000*1600	4000*3000
	Max stack Thickness(mm)	200
Sliding CNC power head	Spindle taper hole	BT50
	Drilling diameter (mm)	Ф50 (Optional Ф63)
	Tapping diameter (mm)	M30
	Spindle speed (rpm)	30-3000(frequency conversion stepless)
	Spindle motor power (KW)	11/15/22/25
	Torque (n<600r/min)	190/240/360Nm
	Spindle surface to worktable distance (mm)	230-630
Longitudinal movement of gantry(Xaxis)	Maximum stroke (mm)	PSD2016:2000 PSD2020:2000 PSD3016:3000 PSD4030:4000
	Servo motor power (KW)	2*2
	Maximum moving speed (m/min)	10
Power head vertical movement (Zaxis)	Maximum moving speed(m/min)	8
	Servo motor power (KW)	2
	Maximum stroke (mm)	400

Product Application
PSD Series machine is mainly used for drilling and milling of connection plates and anchor plates in steel structures, iron towers, bridges, machining and other industries. Drilling and milling of tube sheets, baffles and flanges in pan frying, petrochemical, pressure vessel and other industries; it can drill through holes, blind holes, stepped holes, hole end chamfering and light milling.
