Maple Back Boards Crooking Press Machine, Bamboo Silk Boards, and Cement Particle Boards Making Machine, Solid Corestock-Laminated Board Curly Bending Machine

Product Description

Application:
This Wood Bending Press Machine is mainly used for the production of various bent wood veneer laminates and bamboo wood-based panel machinery and equipment. Production of bent wood sofa armrests, tables and chairs, bent wood furniture, curved surfaces of musical instruments, wooden soles and various bamboo and wood products with complex shapes. High-frequency heating is used to complete the pressing and shaping of the product at one time. One set is: one for one, one for two. (For example, one drive two, that is, two presses share one hydraulic system, one high-frequency cabinet, and two presses are controlled separately). Press: one-way, three-way, multi-way. The degree of automation is high, and the series of actions are sensitive and reliable.
It combined the HF heating with the hydraulic press, then bending the material into the required shape.
It applier to bent plywood for the furniture or chair or bed and other plywood products like close hanger.

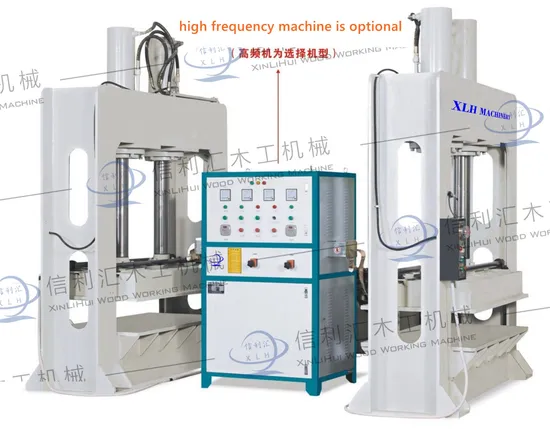

1, Product Show
220T The main technical indicators of the three-way press (can be customized)
Frist press machine
1.Total pressure(T) 220
2.Vertical pressure(T) 120
3.Horizontal pressure(T) 50×2
4.Middle push plate width(mm) 2200×1200
5.Vertical cylinder stroke(mm) 1200
6.Side push plate width(mm) 700×1200
7.Left and right cylinder stroke(mm) 800
8.Max distance between up and down working table(mm) 1500
9.Max distance between left and right(mm) 1600
Second press machine
1.Total pressure(T) 220
2.Vertical pressure(T) 120
3.Horizontal pressure(T) 50×2
4.Middle push plate width(mm) 1800×900
5.Vertical cylinder stroke(mm) 1200
6.Side push plate width(mm) 700×1200
7.Left and right cylinder stroke(mm) 800
8.Max distance between up and down working table(mm) 1500
9.Max distance between left and right(mm) 160
Total power 7.5Kw
High frequency machine(XLH-30)

Item	Main details	Details
1	Max input power(KVA)	40
2	Max output power(KW)	30
3	Working frequency(MHz)	2-6.78
4	Out put type	Double out put
5	Voltage	AC380V 50HZ 3Phase
6	Tube	FU-924FA
7	Filament voltage	10V
8	Rectification method	Three-phase bridge rectifier
9	Tube cooling method	Air cooling
10	Transformer power	42KVA All copper wire package
11	Tuning method	Manual Vacuum Capacitor Tuning
12	Protection method	Phase loss, overcurrent, door open, air cooling

Detail picture:
Usage:
1,Panel furniture,cabinet doors,the surface of profiled drawer;2,Seating board and back of stacking chair,3,Seating board and back of recreational furniture, office furniture;4,Cabinets,hotel furniture, curved doors,coamings;5,The head of a bed and seating board of children's furniture ;6,Profiled door's frame.
2 Sample Show:
3 End Product:
4 Working Process:
5 Other Related Machine:
Features
1 Good quality;
2 Competitive price;
3 Customer's design is welcome.
