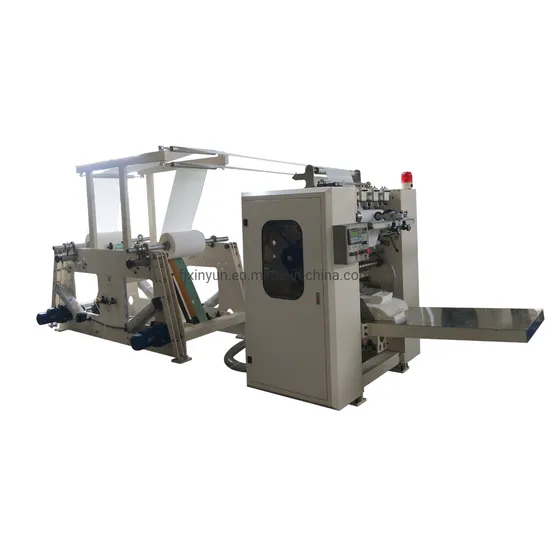

Automatic Counting Facial Paper Folding Machine

Product Description

Product Overview XY-GU-20A Automatic counting facial paper folding machine Box drawing type facial tissue machine use tissue jumbo roll to Process folded into "V" type paper processing equipment. The machine adopts the vacuum adsorption principle and auxiliary manipulator folding. Function and characteristics
1. Automatic counting points a whole row output
2. Helical blade shear, vacuum adsorption folding
3. Stepless speed regulation unwind and can adapt to rewind high-low tension paper material
4. Adopt PLC computer programming control, pneumatic paper and easy to operate;
5. Frequency conversion control, saves energy.
6. The product width is adjustable, to meet different market requirement.
7. Supporting paper rolling pattern device, pattern obvious, flexible to market demand. (The embossing pattern is chosen by the customers ).
8. It can make "V"type single layer towel and two layers glue lamination .(Optional) VIDEO LINK: https://youtu.be/qCWwj1W2vd8 Production specifications

Machine Model	XY-GU-20A
Folded size of finished products	100*200±2mm
Unfold size of finished products	200*200±2mm
Diameter of raw material	1100mm
Diameter of raw material inner core	76.2mm
Daily Output (8 hours)	2000Kg
Embossing unit	Steel to steel
Slitting unit	Pneumatic slitting
Power	4.0KW Main motor
Vacuum suction unit	15KW Fan (Taiwan brand)
Pneumatic system	3 HP air compressor ,mini pressure 5kg/cm2PA
Driving system	Timing belt
Overall dimension	6000*2000*1850mm
Weight	3.0T

Slitting round knife Jumbo roll stand Counting device
Drawing Embossing pattern
Production line
Finished product Workshop
Company profile
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Packing and Shipping
FAQ
Q: Are you trading company or manufacturer A: We are factory.Q: How long is your delivery time?A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to quantity.Q: What is your terms of payment ?A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
