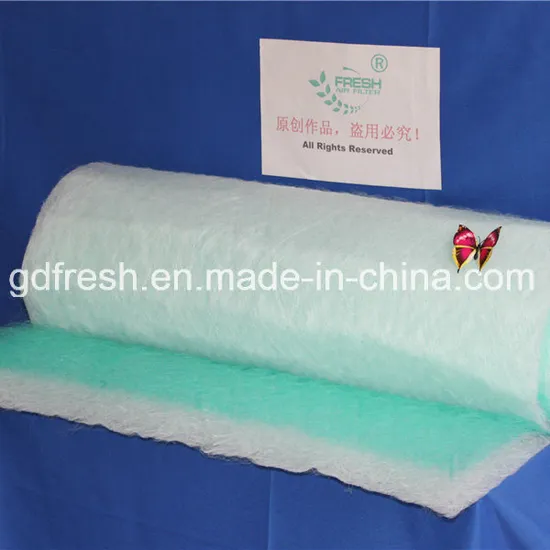

Dust Collector Painting Designed Filter

Product Description

Spray Booth Filter Fiberglass Filter Paint Stop Filter
Product Description FORSTF Paint Stop Fiberglass Floor Filter:
Characteristic:
1.Fiberglass filter media
2.Large ventilation quantity
3.Small resistance
4.High dust holding capacity
5.Long operating life

Speciality:
1. Fiberglass filter media is made of long fiberglass in non-woven way, large ventilation quantity, small resistance, good efficiency of the dust arrestance for the over-spray.
2. It is applied to the superficial spray coating high quality painting-spray filtration, high dust catching for PA-50/60/PA-100, especially suitable for using heat recovery system;
3. High strength fiberglass increasing structure; the windward side is green, the leeward side is white;
4. The low compression preformance maintains its outlook, which is completely useful for the filtration fiber to keep the oil mist and the dust;
5. Nonflammability, temperature resistance at 170°C;
6. The compression packing may save the fare and the storage in the transportation. After decompression, it will regain its original condition;
7. Outer frame may choose the paper frame, the falvanization iron frame, or aluminium alloy frame.

Functions:
1.Main application to the auto electrophoretic paint filter and the fire-resistant steel casting plant for the flue gas dust removal processing system;
2.Used for the explosion grinding bag dust collector in the blast furnace and cement plant.

Performance parameters:

Model	SFF/PA-50/60	SFF/PA-100
Average arrestance	92%-96%	97%-99%
Initial pressure drop	15Pa	20Pa
Final pressure drop	250 Pa	280 Pa
Air velocity	0.7-1.5.m/s	0.7-1.75.m/s
Dust holding at final	3200-3600g/m2	3600-4900g/m2
Temperature resistance	170°C	170°C
Temperature short peaks	190°C	190°C
Normal thickness	50/60mm	100mm
Normal size	0.8m*20 1.0m*20m 2.0m*20m	0.8m*20 1.0m*20m 2.0m*20m
