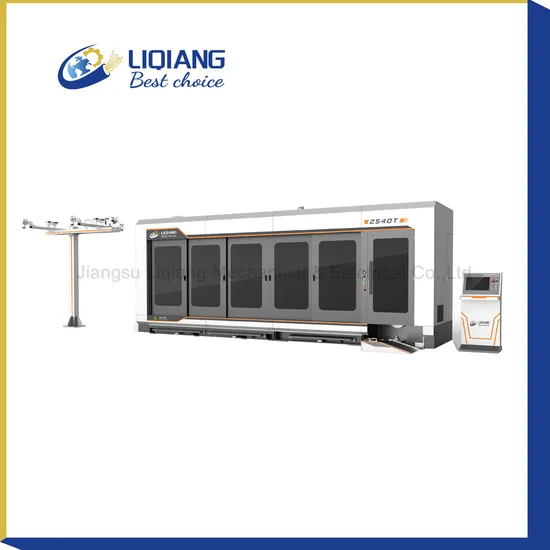

Liqiang 0.15-0.85mm Multi Copper Wire Fine Wire Drawing Machine

Product Description

Liqiang 0.15-0.85mm Fine wire drawing machine with continuous annealing

Model	25-4DT
Usage	Bare copper wire drawing
Quantity of drawing dies	25
Inlet diameter	4*1.6-2mm
Outlet diameter	4*0.15mm-0.85mm
Quantity of drawing dies	25
Slip ratio of last die	8%
Slip ratio of main machine	16%
Max. Drawing speed	1800m/min

Using motor/ main motor	55KW+18.5KW
Dynamic control	Double frequency converters control
Correction system	Automatically control
Annealing method	DC three section annealing
Voltage	380V or Customized
Brake	Pneumatic brake
Brand	Liqiang or OEM
Colour	As customer's need

1)Driven by high precise helical gears; particular oil lubrication mechanism; dual motors drive.2)The capstan and die lubrication system is in emulsion spraying with force from inside of die holders design; In this way, the lubrication is more sufficient and it save space, moreover, it makes operation more convenient.3)Annealing contact copper rings, nickel tubes are made from special alloy; it can ensure a longer service life.4)The annealer control system is in zero length preset voltage design, so that it can ensure stable annealing of wires in the process of machine start and stop.
Liqiang Mechanical & Electrical Co.,Ltd, is a professional wire and cable production manufacture with development design, whole plant planning and technical advice ,manufacture, installation, commissioning and after-sales service in one. Our main products are wire drawing machine, annealing machine, wire bunching machine and other related equipment for bare copper, copper alloy and stainless steel wire, etc.
We believe that perfect high-quality products only come from zero defect production process. Liqiang has adopted the advanced production equipment and technology , scientific & standardized management system and strict testing standards to ensure international advanced level on quality ,structure, performance and appearance. A post-sales service team with versatility and high-efficiency is standing by to provide a full range of services and ensure that the products of your choice are in good working condition all the time. Our products,well trusted and supported ,have been sold throughout China and Southeast Asia, the Middle East , South Africa and other regions.
Liqiang persisted in the principle of " quality wins market, integrity makes for brand" .We make each component with all our mind and energy and to meet multiple requirements all from clients' interests. We hope to create maximum value for the community as well as for clients.
Q: Are you a manufacturer or trade company? A: We are a real wire drawing machine manufacturer, we can support online and offline factory inspoestion anytime. Q:Where is your factory located? A: Our factory is located in Dongtai City, Jiangsu, China. It is not so far from Shanghai airport and Nanjing airport.
If you want to visit our factory, we may pick up you from airport. Q: How many years are your company engaged in the wire drawing machine? A: More than 20 years. We have our own technology develop department and testing department. Q: Can you send your engineer to my country for machine installation, worker training? A: Yes, sure. Our engineers have been to more than 60 countries before. They are very experienced. Q: What's the guarantee time for your machines? A: 12 months since the date of dispatching from our factory. Q: Can you export and supply the customs clearance documents we need? A: We have much experience for exporting. We will arrange all the customs clearances in advance for you. If you are interested in our machines,
please feel free to contact us now,
We will provide you professional solution with reasonable pric
