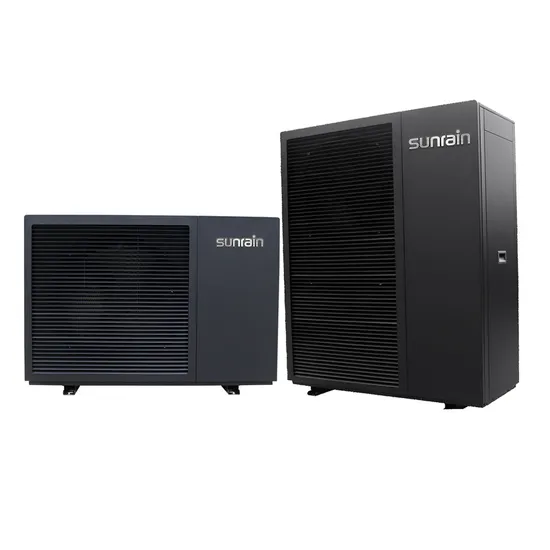

Sunrain Bafa CE Three Phase 12kw Evi Inverter R290 Monoblock Heat Pump for Cold Area

Product Description

Product DescriptionSunrain R290 monoblock air to water heat pump water heater is specially designed for cold area, to satisfy family demand for heating, cooling and hot water. With EVI technology, Sunrain heatpump can have a stable perfomance even under -35ºC.
Key Features
* R290 refrigerant,low GWP(GWP=3) * Energy class: A+++ * Heating+Cooling+DHW * Full DC inverter compressor and fan motor* -30ºC inverter * WIFI smart control * Outlet water temperature up to 75ºC
* BAFA CE certified
* SG ready function


TFT Touch Screen Top Brand Inverter Compressor Blue Hydrophilic Fin Evaporators
Better View More Stable & Durable More Efficiency Product Parameters

Model			BLN-008TC3	BLN-012TC3	BLN-018TC3
Rated voltage / Frequency			380-415V/3N~/50(60)Hz
Heating¹	Capacity	kW	4.1-12.1	4.30-15.20	7.24-21.90
	Input Power	kW	0.79-2.85	0.87-3.73	1.50-5.88
	Input Current	A	1.62-4.57	1.78-6.04	2.82-9.16
	COP	W/W	4.24-5.57	4.07-5.57	3.82-5.59
Heating²	Capacity	kW	4.05-12.15	4.25-14.55	6.36-19.45
	Input Power	kW	1.38-4.06	1.45-4.28	2.15-6.85
	Input Current	A	2.7-6.43	2.84-6.78	3.71-10.60
	COP	W/W	2.99-3.45	2.83-3.45	2.84-3.57
Cooling	Capacity	kW	3.65-8.59	3.65-11.04	4.55-17.20
	Input Power	kW	1.12-3.31	1.12-3.97	1.85-7.31
	Input Current	A	1.97-5.25	1.97-6.30	2.99-11.26
SCOP (Water Temp. At 35ºC)			4.84	4.74	4.79
SCOP (Water Temp. At 55ºC)			3.60	3.70	3.71
Rated Input Power		kW	5.85	5.85	10.5
Rated Input Current		A	10.0	10.0	17.0
Refrigerant Type/Charge/GWP		.../kg	R290/1.05/3	R290/1.05/3	R290/1.4/3
CO2 Equivalent		/	0.0032t	0.0032t	0.0042t
Operation Pressure(Low Side)		MPa	0.8	0.8	0.8
Operation Pressure(High Side)		MPa	3.0	3.0	3.0
Maximum Allowable Pressure		MPa	3.2	3.2	3.2
Electrical Shockproof		/	I	I	I
IP Class		/	IPX4	IPX4	IPX4
Max. Outlet Water Temp.		ºC	75	75	75
Operating Ambient Temperature		ºC	-25~45	-25~45	-25~45
Water Piping Connections		inch	G1	G1	G1-1/4
Rated Water Flow		m³/h	1.40	2.06	3.1
Water Pressure Drop		kPa	20	20	55
Min/Max Water Pressure		MPa	0.1/0.3	0.1/0.3	0.1/0.3
Sound pressure Level		dB(A)	43	54	56
Net Dimensions ( L×W×H )		mm	1287×448×904	1287×448×904	1187×488×1456
Net Weight		kg	134	134	195

Packaging & Shipping Carton Box Carton Box With Pallet
Company ProfileJiangsu Sunrain is a listed company engaged in renewable energy products for more than 26 years. We have 6 productions bases with annual turnover of more than 6 billion. Sunrain can supply a full range of air source heat pumps and heat pump components, like air to water heat pump water heaters, all in one heat pumps, split heat pump water heaters system, swimming pool heat pumps, commercial heat pump and monoblock heat pump for domest heating. It is more safe and flexible to do business with Sunrain.

Big&Modernized Workshop Self Produced Components

High Degree Of Automation Rich Exhibition Experience
After Sales Servicea. 2 years warranty for the whole heat pump
b. Free spare parts provided
c. OEM ODM project solution service availableContact Information
