China Supplier of High Quality Washer Egg Crate Washing Machine

Product Description

1.-China Supplier of High Quality Washer Egg Crate Washing Machine

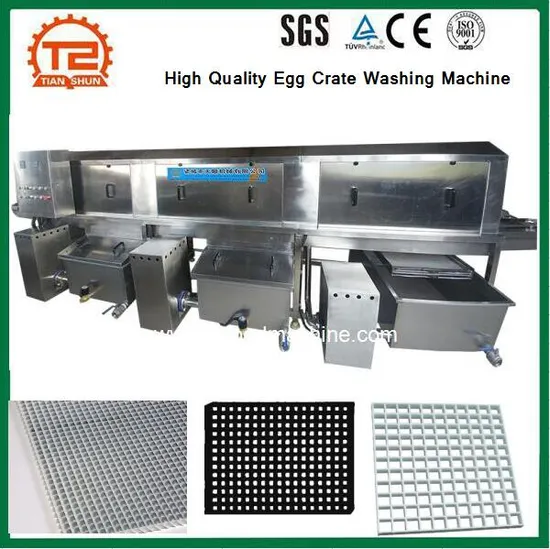

The high quality egg crate washing machine is mainly composed of these parts:
Reducer, water pump, cylinder, bracket, roller, spray pipe, hopper, cover, water tank, valve, drive shaft, motor frame, electric control switch and other components.
The working principle of the crate washing machine:
The washing machine works with three phase asynchronous motor, when the plastic trays/crates are put on the guide rail, the high pressure sprinkler in the water tank sprays the cleaning fluid, to remove the impurities in the trays/crates, then the impurities fall into the water tank together with the cleaning liquid.
The temperature of high-pressure spray water is normally 60ºC.
2.-Applications of High Quality Washer Egg Crate Washing Machine
For cleaning and sterilizing turnover egg crate, turnover basket,dishes,boxes and so on.
3.-Technical Index of High Quality Washer Egg Crate Washing Machine

No.	Item	Value
1	Model	TSXK-60
2	Heating method	Electric heating
3	Sterilization temperature	100 ºC Max
4	Cleaning time(min)	1-10
5	Outline Dimension(mm)	5500*1500*1600
6	Effective Size(mm)	4500*800*600
7	Available Size for Basket(mm)	300-600

4.-Packaging and Delivery

Packaging	With Wrapping film and in wooden case, or according to the customer needs.
Delivery Time	10-15 Working days.
Shipping Type	By sea, railway, etc.

5. -Company Information
Zhucheng Tianshun Machinery Co.,Ltd. has grown into a large, specialized food machinery manufacturing company with over 10 years development. Currently has more than 100 employees, the division of labor is professionalization and specific, there are technical department, after-sales service department, domestic marketing department, international business department, etc. The company has all kinds of welding equipment, machining equipment to meet the needs of different customers.
Main products: Food machinery and complete production lines, including:
Vegetables&fruits cutting machines,
Vegetables&fruits peeling&washing machines,
Food Frying equipment,
Air drying machinery,
Blanching&cooking machine,
Food flavoring machine,
Food coating machine,
Vacuum packing machine.
Complete line.
All of them can be designed semi-automatic and full automatic, and widely used for processing varieties of vegetable, fruits, fish, seafood, snack food, etc. Some of them have pass the CE certificate. All the machines could be customized, and we also provide and design individual machines for customers.
