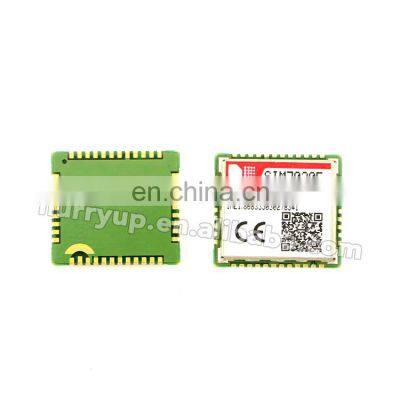

SIMCOM SIM7020 SIM7020E SIM7020G NB-IoT Module

Product Description

Product Description
DescriptionSIM7020XNB-IoT ModuleThe SIM7020 series has powerful expansibility with abundant interfaces including UART, GPIO, I2C etc. The SIM7020 series is designed for applications that need low latency, low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring, E-health etc.Product Advantages● With Power Saving Mode(PSM) and Extended Discontinuous Reception(eDRX), the SIM7020 series can extend battery life up to 10 years● The SIM7020 series provides deeper coverage enhancement compared to GSM● The form factor and AT commands of the SIM7020 series are compatible with SIM800CProduct DetailsSIM7020ESIM7020GForm FactorLCC, 42PINLCC+LGA, 77PINDimensions(mm)17.6*15.7*2.317.6*15.7*2.3Frequency BandsCat-NBB1/B3/B5/B8/B20/B28B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28/B66/B70/B71/B85Temperature-40℃ ~ +85℃-40℃ ~ +85℃Electrical FeaturesSupply Voltage Range(V)2.1~ 3.62.1~ 3.6Power Consumption@PSM(uA)3.43.4@Sleep(mA)0.40.4@Idle(mA)5.65.6@eDRX=655.36s(uA)3030Data TransferNB-IoT(kbps)26.15(DL)/62.5(UL)126(DL)/150(UL)Software FeaturesProtocolTCP/UDP/HTTP/HTTPS/TLS/DTLS/DNS/NTP/PING/LWM2M/COAP/MQTT/MQTTSTCP/UDP/HTTP/HTTPS/TLS/DTLS/DNS/NTP/PING/LWM2M/COAP/MQTT/MQTTSFOTA●●Embedded AT●●Firmware UpgradeUART/FOTAUART/FOTAInterfacesSIM Card1.8V/3.0V1.8V/3.0VUART●●USB●●ADC●●Embedded SIMooCertificationRegulatoryCE/NCC/IMDA/ATEX/RoHS/REACHCE/FCC/GCF/PTCRB/ATEX/RoHS/REACHCarrierDeutsche TelekomTelstra*/Vodafone/Deutsche Telekom●: support; o: optional; * : on goingWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
