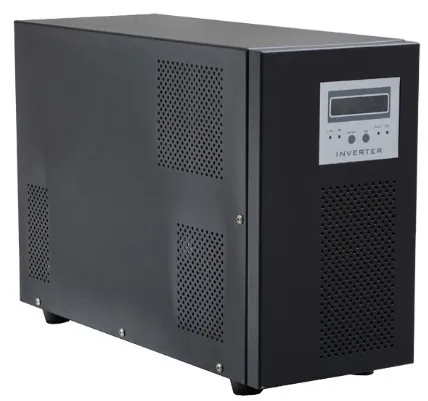

3kw Signal Phase Inverter with Charger
| US$380.00-1,870.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
T1KW-T10KW
Output Power
>1000W
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Type
DC/AC Inverters
Power Factor
0.8
Wave Form
Pure Sine Wave
Frequency Range
45 -65Hz
Input Voltage Range
380V± 20%(3 Phase), Phase Voltage 220V
Rectifier
3 Phase 6 Pulses, 12 Pulses Is Optional
Crest Factor
3: 01
Rated Voltage
380/400/415V Optional
Phase Voltage
200 - 244vac
Transient Response
+/-5%, 10ms
Transport Package
560*230*570mm by Wooden or Plywood Case
Specification
1KW-10KW
Trademark
TF and accept OEM
Origin
Foshan, Guangdong, China
HS Code
85044020
Production Capacity
10, 000PCS/Year
Product Description
3KW signal phase inverter/3KW pure sine wave inverter/3KW 48VDC to 110V220VAC inverterOur competitive advantage:
1. Use copper transformer, can load pump, lift and industrial load;
2. LCD display;
Feature:
Capacity: 1KW--100KW
(1) Super wide input voltage: 285V-475V
(2) Completely controlled by CPU, LCD automatic page turning display
(3) Protection against output short-circuit; Against overload, and when you throw off its load, it will turn on the unit automatically.
(4) Working for single phase and three phase.
110V/220V single phase; 240V/380V/415V/440V option.
(5) with charger built-in, its charging current is 10A----156A.
(6) Different DC voltage: 24V, 48V, 96V, 384V for optional
(7) Make it with 3 PCS PCB box, it is more stable design.
(8) Can take pump or lift, and other industrial use
| Model | T1K | T3K | T5K | T10K | T15K | T20K | T30K | T60K | T100K | |
| Power | 1KW | 3KW | 5KW | 10KW | 15KW | 20KW | 30KW | 60KW | 100KW | |
| Power Factor | 0.8 | |||||||||
| Phase | 3 phase 4 wire and ground | |||||||||
| Wave form | Pure sine wave | |||||||||
| Frequency Range | 45 - 65Hz | |||||||||
| Input | Voltage Range | 380V± 20%(3 phase), phase voltage 220V | ||||||||
| Rectifier | 3 phase 6 pulses, 12 pulses is optional | |||||||||
| Output | Crest Factor | 3: 01 | ||||||||
| Rated voltage | 380/400/415V optional | |||||||||
| Phase voltage | 200 - 244VAC, | |||||||||
| Transient response | +/-5%, 10ms | |||||||||
| Total-harmonic distortion | < 3% linear load, < 5%( nonlinear load) | |||||||||
| Short circuit current | Short current for 0.1s (200% current) | |||||||||
| Overload capacity | Overload 125% for 10 ms, 125%-150% for 1min. automatically resume when load become normal | |||||||||
| Bypass | Type | Static state + manual maintenance bypass | ||||||||
| Input Phase | 3 phase 4 wire and ground | |||||||||
| Input voltage range | 15% - 25% (the front control panel selectable) | |||||||||
| Transfer time | Inverter / bypass transfer switch time(Overload): 0ms inverter / bypass transfer switch time (fault inverter) 1ms | |||||||||
| Remote signaling | Dry contact (battery low, battery discharging, bypass/ fault); output 12Vdc/80mA, Optional parts | |||||||||
| Communication interface | RS232 | |||||||||
| Operate condition | 0-40 degree Celsius, Less than 95%, without condensing | |||||||||
| Noise at 1 M | less than 60 dB | |||||||||
| Degree of protection | IP20 | |||||||||
| Applicable Standards | EN50091-1-EMC EN50091-2liv. A | |||||||||
| Product size(mm) | 560*230*570 | 590*470*730 | 900*600*1380 | 1200*900*1820 | ||||||
| product weight(Kg) | 30 | 40 | 54 | 104 | 125 | 190 | 380 | 690 | 800 | |
