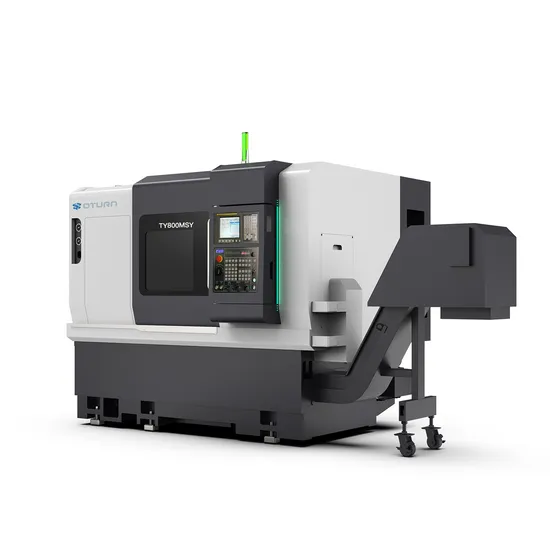

Oturncnc Swiss Type Lathe Ty800msy Double Twin Spindle CNC Lathe with Fanuc Siemens Mitsubishi

Product Description

Product Description
High-strength HT300 one-piece structure casting iron bed, 30-degree step type flat rail structure, application of finite element analysis, excellent overall mechanical rigidity and stability, and can maintain long-term reliable accuracy, processing stability and tool life, stress relief treatment improve accuracy and stability, high-strength roller rail design, drive system adopts screw pre-tension design, improve response rigidity.
Both ends of the workpiece can be processed at the same time in one clamping, which greatly simplifies the manual operation, increases the output and reduces the process. The second spindle is capable of full turning and can express workpieces during machining, reducing cycle time.
1.Direct drive synchronous electric spindle device: magnetic ring type incremental encoder (Sine and cosine) positioning accuracy: 20 arc seconds, C-axis indexing accuracy: 40 arc seconds.
Effectively eliminate the vibration of spindle, and the deflection accuracy of the nose end is within 0.002mm. Improve the surface finish of the workpiece.
The rear-mounted rotor is used to facilitate installation and maintenance.
The spindle motor is equipped with cooling system to suppress the influence of thermal displacement and ensure a constant working temperature of the spindle. The spindle system has passed the strict dynamic balance test. It has good precision retention, high rigidity and high efficiency, so that the machine can not only complete finishing machining, but also rough machining and heavy cutting for users. It is especially suitable for mass production of complex shapes and high finish product.
2.High rigidity integral servo power turret. With rapid and precise tool change performance. The tool holder installation used high-rigidity BMT interface, and the power transmission shaft is driven by servo spindle motor.
3.Y-axis adopts 100MM stroke (±50 from the center line), capable of eccentric milling, drilling and tapping, equipped with a high-torque power turret and a servo-driven C-axis, capable of processing complex parts.
4.The machine is equipped with THK linear guide rail and ball screw. The heat-treated and precision-ground ball screw can ensure the best precision and durability. Each axis adopts a direct transfer shaft structure and a double-anchor pre-relay method, which can minimize thermal displacement and greatly improve machining accuracy. High rigidity, large size, and heavy-duty linear slide rails can keep the accuracy of the machine unaffected when it is impacted, the displacement is smooth and the noise is low, which can prolong the service life.
5.Standard configuration FANUC system, and the feed drive adopts FANUC servo motor.
6.Perfect hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components, greatly reducing the failure rate. The design of the hydraulic and lubrication system is simple and reliable.
7.Using Taiwan rotary chuck, oil cylinder and automatic chip removal device, which can greatly reduce the labor intensity of the operator and realize safe and efficient production. The above functional components can be controlled by programming. At the same time, various special fixtures can be designed and installed according to the special requirements of users. Product Parameters

Item	Unit	800MSY
Max. turning diameter over bed	mm	Φ800
Max. processing diameter	mm	Φ470
Max. processing diameter over tool holder	mm	Φ450
Max. processing length	mm	650
Spindle nose	type	A2-6
Oil cylinder/chuck	/	8″
Spindle bore diameter	mm	Φ66
Bar diameter	mm	Φ52
Max. speed of spindle	rpm	4300
Direct drive spindle motor power	kw	18/22
Spindle motor torque	N.m	91-227
Sub-spindle nose	type	A2-6
Oil cylinder/chuck	/	8″
Sub-spindle bore diameter	mm	Φ66
Bar diameter	mm	Φ52
Max. speed of Sub-spindle	rpm	4300
Sub-spindle motor power	kw	18/22
Sub-spindle motor torque	N.m	91-227
X/Z/Y/S motor power	kw	3.0/3.0/1.8/3.0
X/Z axis travel	mm	280/740
Y/S axis travel		100(±50)/650
X/Z/Y/S axis moving fast	m/min	24/24/8/24
Positioning accuracy	mm	±0.005
Repeatability	mm	±0.003
Slide rail type	/	45/45/35 roller
X/Z/C screw specifications	mm	4012
Power turret type	/	BMT55-12T
Power turret power/torque	Kw/N.m	5.5/35
Max. speed of power tool holder	rpm	6000
Outer diameter tool holder specification	mm	25X25
Inner diameter tool holder specification	mm	Φ40
Adjacent tool change time	sec	0.2
Positioning accuracy	/	±2"
Repeatability	/	±1"
Machine dimension	mm	3500x2250x2100
Machine weight	kg	7000
Cutting fluid tank volume	L	250
Cooling water pump power	W	750
Hydraulic unit box volume	L	40
Hydraulic oil pump motor power	kw	1.5
Lubricant tank volume	L	2
Automatic lubrication pump motor power	W	50
