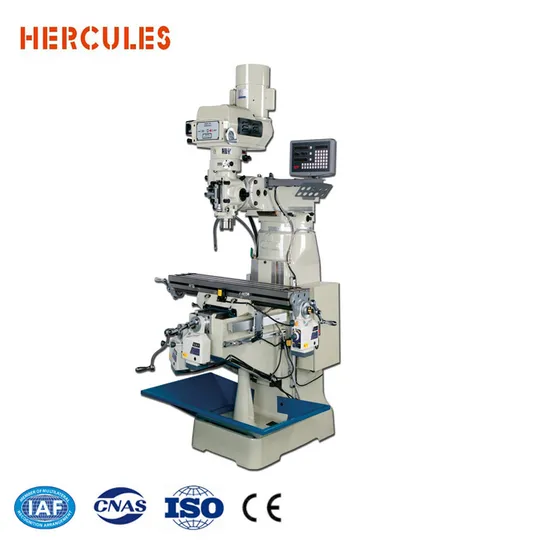

Hard and Temperature-resistant Bridgeport Type Hobby Turret Milling Machine
| US$2,000.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M2V
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Table size
9"*49"
Table load capacity
300kg
Spindle taper
R8 or ISO30
Transport Package
Pallet
Specification
1750*1500*2100mm
Trademark
Hercules or OEM
Origin
China
HS Code
8459699000
Production Capacity
20000/Year
Product Description
Bridgeport Type Vertical Milling Machine--Hobby milling machine M2VFeatures:
Meehanite Casting
Hardened and Ground dovetail guideways for longitudinal axis
Taiwan Variable speed spindle head 60~4200rpm.
Classic Bridgeport type, Taiwan quality control
Smart small machine, meet kinds of tools processing at home
Accessories:
Coolant Pump
Chip Pan
6" Machine Vise
58pcs Clamping Kits
R8 or ISO30 Collet set
DRO
Specification:
| Table size(L*W)(mm) | 1067x230 |
| Max.load of table (kg) | 300 |
| X axis(mm) | 720 660 with power feed |
| Y axis(mm) | 330 |
| Z axis (mm) | 360 |
| Work table T slot (No.-size*pitch) (mm) | 3-15.88x63.5 |
| Distance between spindle and table(mm) | 50-410 |
| Ram travel (mm) | 380 |
| Travel of spindle quill (mm) | 127 |
| Auto crossward feed(mm/rev) | 0.04/0.08/0.15 |
| Spindle speed(rpm)(60Hz) | 80-5440 rpm 16steps |
| Spindle hole taper | R8 / NT30(optional) |
| Main Motor | 3HP |
| Tilt angle for milling head | left and right±45º forward and backward±45º |
| Guiding tracks(X.Y.Z) | △△△ |
| Dimension(L*W*H)(mm) | 1550x1500x2100 |
| Milling head | Round step milling head |
| Weight (kg) | 950 |
Machine Images
