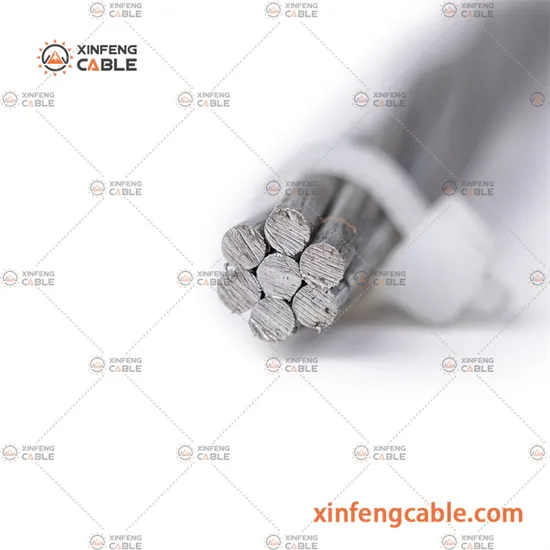

High Tension Overhead ACSR Bare Electric Cable 120/25 mm2

Product Description

Product Description Overhead lines, sometimes referred to as aerial conductors, are often specified where there are significant distances to cover and where these cables are best positioned far out of reach. The distances to cover, the environmental conditions it will face, and the location are all factors in specifying the appropriate cable.
The main classifications of bare conductor are AAC (All aluminum conductor), AAAC (All aluminum Alloy Conductor) or ACSR (aluminum conductor steel reinforced). AAC is most commonly found in urban areas with frequent supports and short spans. It is also used in coastal regions where salt in the air can cause corrosion - the all-aluminum wire providing corrosion resistance - and specified for use in the railway industry for OHL electrification. AAAC tend to be specified where greater mechanical resistance is required and where there is a reduced sag characteristic. The ACSR, with its steel reinforcement provides additional strength and where the spans run for larger distances, such as across rivers.
The advantages of AAC, AAAC and ACSR come in their lightweight properties. These overhead lines have no specified voltage rating - it will depend on the type of installation - although the higher corona limit of ACSR makes it beneficial when used with high voltage and extra-high voltage transmission. The overhead line wires are manufactured in accordance with various national standards and can be sized appropriately - including GB/T1179 ASTM B231, ASTM B399, IEC 61089, DIN 48201, BS 215, BS 3242, BS EN 50182 and Spanish standard UNE 21.018. etc.
Detailed Photos
Product Parameters Aluminum Conductors Steel Reinforced (ACSR)
1. Aplication
ACSR conductors are widely used for electrical power transmission over long distances, since they are ideal for long overhead lines spans. They are also used as a messenger for supporting overhead electrical cables.
2. Structure And Reference Picture
ACSR conduc tors are formed by several wires of aluminum and galvanized steel, stranded in concentric layers. The wire or wires which form the core, are made of galvanized steel and the external layer or layers, are of aluminum. Galvanized steel core consists normally of 1, 7 or 19 wires. The diameters of steel and aluminum wires can be the same, or different.
By varying the relative proportions of aluminum and steel, the required characteristics for any particular application can be reached. A higher U. T. S. Can be obtained, by increasing steel content, and a higher current carrying capacity by increasing aluminum content.
In ACSR Conductor outer layer consist of aluminum strands.
No. of Strands usd for ACSR Conductor is given by 3n²-3n+1 n=no. of layers
Paticular ACSR conductor is choosed for that Transmission Line:
For 11KV and 33 KV Line

Name of Conductor	No. of AL Strand	No. of Steel Strand	Overall Diameter	Resisitance at 20 ºC	Breaking Load	Cuurent Capacity at 75ºC
Rabbit	6	1	10.05mm	0.5524 Ω	18.25 KN	190A
Dog	6	1	14.15mm	0.2792 Ω	32.41 KN	291A

Load Capacity in MVA for Rabbit = 1.732*11*190=3.62MVA
Load Capacity in MVA for Dog =1.732*33*291=16.63 MVA
For 66KV and 132 KV Line

Name of Conductor	No. of AL Strand	No. of Steel Strand	Overall Diameter	Resisitance at 20 ºC	Breaking Load	Cuurent Capacity at 75ºC
Wolf	30	7	18.3mm	0.1871 Ω	67.34 KN	405A
Panther	30	7	21 mm	0.139 Ω	86.67 KN	487A

Load Capacity in MVA for Wolf = 1.732*66*405=46.3 MVA
Load Capacity in MVA for Panther =1.732*132*487=111.34 MVA
For 220KV and 400 KV Line

Name of Conductor	No. of AL Strand	No. of Steel Strand	Overall Diameter	Resisitance at 20 ºC	Breaking Load	Cuurent Capacity at 75ºC
Zebra	54	7	28.62mm	0.06868 Ω	130.32 KN	737A
Moose	54	7	31.77mm	0.05595 Ω	159.6 KN	836A

Load Capacity in MVA for Zebra = 1.732*220*737=280.83 MVA
Load Capacity in MVA for Moose =1.732*400*836=579.18 MVA
3.Electrical properties

Density at 20ºC	Aluminum: 2.703 kg/dm3
	Galvanized Steel: 7.78 kg/dm3
Temperature coefficient at 20°C	Aluminum: 0.00403 °C
Resistivity at 20°C	Aluminum ≤ 0.028264Ω•mm2/m
Coefficient of linear expansion:	Aluminum: 23 x10-6 °C
	Galvanized Steel: 11.5 x10-6 °C

4.Product parameters
Aluminum conductor steel reinforced (ACSR)-BS 215 (This standard as an example, the actual standard is order by clients requirement.)

Code	Nominal Section Area mm2	Stranding No./Diameter	Structure	Maximum DC Resistance At 20ºC Ω/km	Rated Strength kN
		AL mm	Steel mm
Mole	10	6/1.50	1/1.50	2.707	2.707
Squirrel	20	6/2.11	1/2.11	1.368	1.368
Gopher	25	6/2.36	1/2.36	1.093	1.093
Weasel	30	6/2.59	1/2.59	0.9077	0.9077
Fox	35	6/2.79	1/2.79	0.7823	0.7823
Ferret	40	6/3.00	1/3.00	0.6766	0.6766
Rabbit	50	6/3.35	1/3.35	0.5426	0.5426
Mink	60	6/3.66	1/3.66	0.4545	0.4545
Skunk	60	12/2.59	7/2.59	0.4568	0.4568
Beaver	70	6/3.99	1/3.99	0.3825	0.3825
Horse	70	12/2.79	7/2.79	0.3936	0.3936
Racoon	75	6/4.10	1/4.10	0.3622	0.3622
Otter	75	6/4.22	1/4.22	0.3419	0.3419
Cat	80	6/4.50	1/4.50	0.3077	0.3077
Hare	90	6/4.72	1/4.72	0.2733	0.2733
Dog	100	6/4.72	7/1.57	0.2733	0.2733
Hyena	100	7/4.39	7/1.93	0.2728	0.2728
Cougar	100	8/3.05	1/3.05	0.219	0.219
Leopard	125	6/5.28	7/1.75	0.2184	0.2184
Tiger	125	30/2.36	7/2.36	0.2203	0.2203
Dingo	125	18/3.35	1/3.35	0.1814	0.1814
Wolf	150	30/2.59	7/2.59	0.1828	0.1828
Caracal	150	18/3.61	1/3.61	0.1563	0.1563
Lynx	175	30/2.79	7/2.79	0.1576	0.1576
Jaguar	200	18/3.86	1/3.86	0.1367	0.1367
Panther	200	30/3.00	7/3.00	0.1362	0.1362
Lion	225	30/3.18	7/3.18	0.1213	0.1213
Bear	250	30/3.35	7/3.35	0.1093	0.1093
Goat	300	30/3.71	7/3.71	0.08911	0.08911
Sheep	350	30/3.99	7/3.99	0.07704	0.07704
Antelop	350	54/2.97	7/2.97	0.07727	0.07727
Bison	350	54/3.00	7/3.00	0.07573	0.07573
Deer	400	30/4.27	7/4.27	0.06727	0.06727
Zebra	400	54/3.18	7/3.18	0.0674	0.0674
Elk	450	30/4.50	7/4.50	0.06067	0.06067
Camellia	450	54/3.35	7/3.35	0.06073	0.06073
Moose	500	54/3.53	7/3.53	0.0547	0.0547
