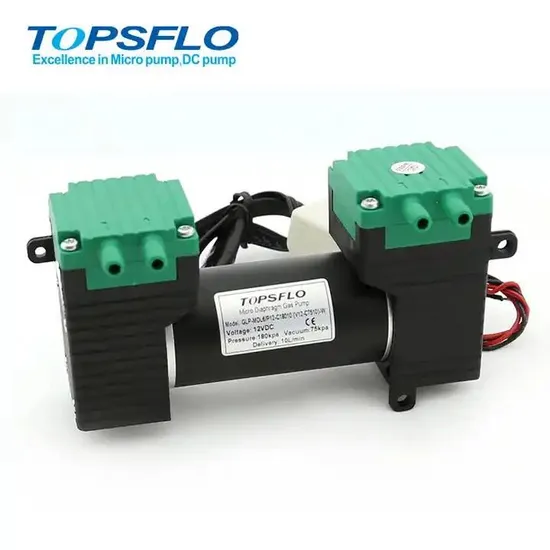

Large Pressure Electric 12V 24V DC Mini Vacuum Pump

Product Description

Large pressure electric 12V 24V DC mini vacuum Pump Specification

Model	Pressure Pump	Vacuum Pump	Rated Voltage	No-load Current	Max Pressure	Max Vacuum	Max Flow
	(Item Number)	(Item Number)	(Vdc)	(A)	(KPa)	(KPa)	(L/min)
TMD40-F	TMD40-F12-P22017( outside controller) in parallel double outputs		12	1.8	220		17
		TMD40-F12-V7517 (outside controller) in parallel double outputs	12	1.8		-75	17
		TMD40-F12-V9512 (outside controller) in series single output	12	1.8		-95	12
" P " means pressure pump, " V " means vacuum pump, "12/24" means different voltages optional.
Pump Weight:450g; Pump Size:131mm*40mm*75mm; Inlet&Outlet:OD 6.5mm/ID 3.4mm,hose suggestion:ID 5.0mm
Super silent noise
Motor type and code: "F"means Coreless brushless DC motor with dual ball bearings + outside controller (long lifetime 15,000hours);pump with outside controller can realize functions of PWM 0~5V speed adjustment, brake, instant starting work ; inner controller is no additional functions.

Product feature
Highest Performance/Size Ratio
High flow 12L/min,17L/min ,high pressure 220kpa ,large vacuum
Performs Quieter
Lasts Reliably Longer
Uncontaminated flow
Little vibration
High level of gas tightness
Extreme chemical resistance
Optimal solution for your application
Typical Application
•Industrial pressure and vacuum applications •Portable Analytical Instruments
•Medical Diagnostic Equipment •Air Quality Sampling Monitors
•Respiration Monitors •Gas or Odor Leak Detectors
•Electrical products, • Industrial products, •Medical analytical instruments, • Chemical instruments •Nasal Aspirator, and so on.
Dimension(mm) & Curve
