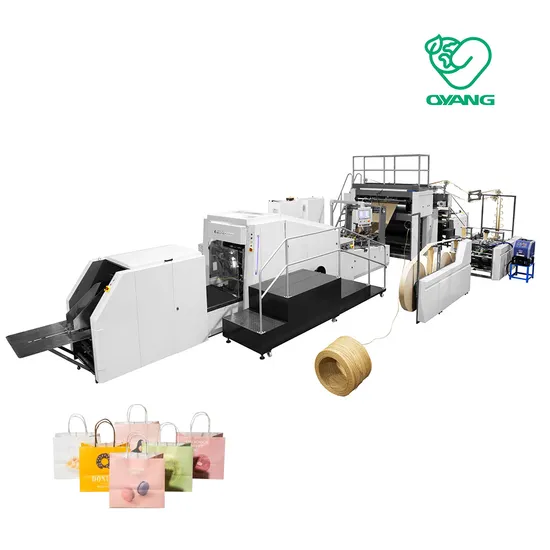

China Paper Bag Forming Shopping Machine Paper Bag Production Line New World a

Product Description

OYANG-16 NEW WORLD A SERIES
Automatic Roll-fed Twist Rope Paper Bag Machine Series Product Parameters Host Machine Parameters

Model No.	A 220	A330	A 400	A 450	A 460	A560
Paper diameter	≤1500mm	≤1500mm	≤1500mm	≤1500mm	≤1500mm	≤1500mm
Core inner diameter	φ76mm	φ76mm	φ76mm	φ76mm	φ76mm	φ76mm
Paper weight	70-140gsm	80-140gsm	80-140gsm	80-140gsm	80-140gsm	90-140gsm
Paper bag width	120-220mm	200-330mm	200-400mm	200-450mm	240-460mm	280-560mm
Paper Bag Width Without handle	80-220mm	150-330mm	150-400mm	150-450mm	220-460mm	280-560mm
Paper tube length	190-350mm	280-430mm	280-550mm	280-550mm	320-650mm	320-650mm
Paper tube length Without handle	190-430mm	280-530mm	280-600mm	280-600mm	320-770mm	320-770mm
Bottom width of paper bag	50-120mm	80−180mm	90-200mm	90−200mm	90-260mm	90-260mm
Paper roll width	290/370-710mm	490/590-1050mm	510/610-1230mm	510/610-1230mm	650/690-1470mm	770-1670mm
Machine Speed	150pcs/min	150pcs/min	150pcs/min	150pcs/min	130pcs/min	100pcs/min
Total power	32KW	32KW	34KW	34KW	34KW	34KW
Machine weight	13000KG	16000KG	18000KG	18000KG	21000KG	22000KG
Machine dimensions	L12×W5×H3.2M	L14×W6×H3.5M	L15×W6×H3.5M	L15×W6×H3.5M	L16×W6×H3.5M	L16×W6×H3.5M

Handle Machine Parameters

Model No.	2HD	3HD	5HD	6HD
Handle rope height	90-110	90-110	95-115	100-120
Handle patch width	40-50	45-50	45-50	45-50
Handle patch length	95	114	152	190
Handle rope diameter.	φ3-5mm	φ4-6mm	φ4-6mm	φ4-6mm
Diameter of Handle Patch Paper Roll	φ1200mm	φ1200mm	φ1200mm	φ1200mm
Handle patch paper roll width	80-100mm	90−100mm	90−100mm	90−100mm
Handle patch weight.	100-140g	100-140g	100-140g	100-140g
Handle separation distance	47	57	76	95

Product Feature Oyang 16- A330 full automatic square bottom paper bag machine is used for the production of a paper bag with a twisted and flat handle loop. Transmission of the handle made by handle making unit, cut, stick, pressed, and then pre-cut, glue, auto handle stick in empty or printed roll paper. Then the main machine will glue the paper with the handle loop to the edge, paper bag tube forming, cut off, indentation, bottom glue, bottom forming, and sealing, bag conveying. the whole process is completed simultaneously at one time. Real realization of full automation production, can effectively save labor costs.
The whole machine adopts the servo-electric control system imported from Japan, which ensures the whole machine can run quickly and stably and effectively reduces the time of paper bag size adjustment. The finished bags produced are of high accuracy, strong stability, simple maintenance, and efficient production, which is the ideal equipment for major printing plants and paper bag manufacturers.
Product Description Part 1 Paper material feeding and convey Unit
1. Roll feeding is equipped with an automatic lifting function, which is mainly convenient for changing roll paper during production, which can be easily completed by switch control.
• Unwind using air shaft
• Feeding is equipped with hydraulic cylinder lifting control system
• Unwinding is equipped with automatic tension control system 2. Fully automatic stroke correction system, the system is mainly to ensure the flatness and stability of the feeding state of the roll paper. Part 2 Twisted Rope Handle Making Unit
The twisted rope handle is fed by two rolls of raw paper and paper rope, and the roll of raw paper and the wound round paper rope are glued with water glue and hot glue; then the pressing device is used to transport and press the hand pull sheet. Close; then cut the handle in half and send it to the sticking mechanism.

Part 3 Handle Convey and Pasting unit
Cut the delivered handle piece and then transfer it to the longitudinal push claw; the offset station will send the cut handle to the designated position of the bag mouth where the paper bag is to be produced; then give the handle and the paper bag a designated position. Water glue and glue, then press and fix the handle pasted on the paper bag and transfer it to the forming unit.
Part 4 Paper bag forming unit
The base paper with the handles pasted and the edge glue applied is made into a tube; the finished paper tube is hauled and transported to a single cutting according to the set requirements; then transferred to the big hub mechanism to open the four-corner bottom, and then the bottom glue is inserted and the bottom is inserted into the bag. The bottom becomes a square shape; then the bag is discharged from the conveying and pressing position.
Part 5 Finished bag collection unit The formed paper bags are pressed and conveyed out of the bag. The bag discharging device receives materials longitudinally, and the receiving device can automatically count the finished products according to the requirements when they are discharged from the bag.
Company Profile Zhejiang Ounuo Machinery Co.,Ltd.is located in Pingyang County Wenzhou City,Zhejiang Province, covering an area of 130000 square metres, 15 years deep ploughing in packaging equipment industry. Invest 200 million imported of Japan stability of the whole machine. MAZAK, OKUMA, Taiwan WELLE etc, the high-precision CNC Machine, to ensure the precision of the components and we offer complete solutions to customer in the eco-friendly bag making project,including paper bag making solutions, nonwoven bag making solutions,nonwoven fabric production line, paper cutlery/moulding machine, pouch making machine and printing machine etc..
Ounuo's Misson: Industry Change Because of Us
Ounuo's Vision (10-15 Years):Responsibility to Promotion Solution of Top Quality and Intelligent Bag Making Industry. Keep in mind the mission and vision and strive to provide world-class quality products and services to customers. Oyang brand is deeply loved by the global market,products in Mexico,Argentina, the United States,
Romania,,Poland,Vietnam,Brazil,the United Arab Emirates,India,Turkey,Egypt,Algeria,Kenya,South Africa etc and more than 168 countries and regions,The market shares for 85%+. FAQ Q: Are you manufacturer or trading company?
A: We are the professional machinery manufacturer in packaging and printing industry for 17+ years covering an area of 130,000 square meters,have more than 400 workers.
Q: Where is your factory located? May I have a visit?
A: Warmly welcome! Our factory is located in Wenzhou city, Zhejiang Province, China.
Q: What is the advantages of your factory compared with other suppliers?
A: 1. Technical strength: We are the leaders of the Chinese packaging machinery industry. We have strong technical strength and can develop and produce high -quality and efficient packaging machines. Mastering advanced technology and technology, we currently have 9 successful packaging and printing projects. We can provide you with a full set of solutions to meet the packaging needs of different industries.
2. Product quality: We pay attention to product quality, and invested 200 million US dollars to introduce Japanese high-level processing equipment MAZAK. From accessories to finished products, we have strict quality control and detection processes to ensure the stability and reliability of the product.
3. Product customization: We can customize design and production according to the needs of customers to meet the special requirements of different customers. Provide personalized solutions to help customers improve production efficiency and reduce costs.
4. After -sales service: After -sales service is one of our biggest advantages. We provide timely and professional technical support and maintenance services to ensure that we can quickly respond to the needs of customers, solve problems, and ensure the normal operation of the equipment.
5. Innovation ability: We continue to carry out technological innovation and product upgrade to meet the changes in the market and customer needs. Continuously improve the performance and functions of products and provide customers with better solutions.
Q: What information should I provide if I want to get a quotation?
A: First, paper type which you wanna make, second, the size of paper bag, third, the thickness of paper bag, after collect the basic information, then we will suggest the right machine model to you!
Q: How long is your machine's warranty period?
All our machine have one year guarantee, starting from finished installation.
Q: How could we do after one year warranty period?
We also can do service for you, but you need pay salary for my technician 100-150USD/day.
Q: How could we do if the parts broken within warranty?
We would express the free replacement parts during the warranty date.
