Renewable Energy Combined Heat and Power CHP System

Product Description

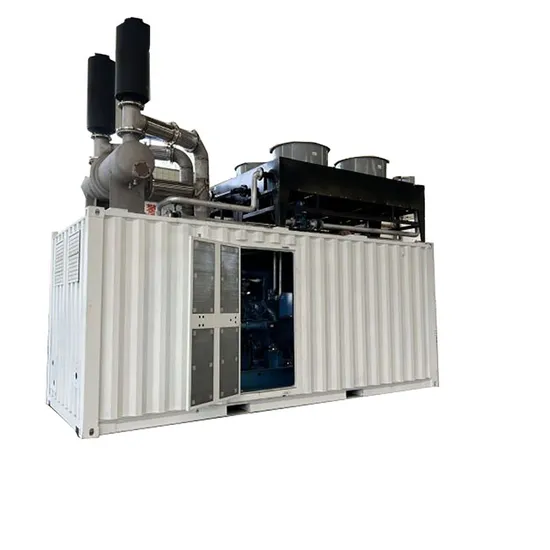

Renewable energy combined heat and power chp system
This series CHP Power Generator Set choose high quality gas engine assembled with alternators (Stamford, Fraday or other famous brand), the control system adopts PLC automatic controller. This series of gas generator can be used in biogas power plant, natural gas power plant, school, hospital, oil field, pig farm, cattle farm, chicken farm, sewage treatment plant, biogas project, as 24-hour uninterrupted power or standby power.
Specification / Data:

Cogeneration Unit	Model	HTG-10/1000GF
	Rated Power	10kW-1000kW
	Standby Power	11kW-1100kW
	Thermal Efficiency	≥80%
	Rated Voltage	400V/230V
	Rated Frequency	50Hz/60Hz
	Type	Open/Silent/Soundproof/Container
Diesel Engine	Engine Brand	Cummins, Deutz, WEICHAI, Ricardo, Steyr, Jichai
Alternator	Type	Brushless
	Brand	Stamford, Faraday, Marathon, Evotec, etc.
	Connection	3-pahse, 4-wire
Controller	Type	Auto PLC Controller
	Brand	Deepsea, SmartGen, ComAp, HT2012 etc.
Fuel		Biogas/Natural Gas/LPG/Biomass Gas
Application		Biogas Power Plant, Pig Farm, Cattle Farm, Chicken Farm, Sewage Treatment Plant, Biogas Project etc.
Delivery		By Sea, By Air, By Train.
Warranty		12 months or 1500 running hours (subject to the earlier)

Requirments for natural gas
1.Methane should be at least 50%
2.The natural gas temperature should be between 0-60 ºC
3. No inpurity should be in the gas. Water in the gas should be less than 20g/Nm3.
4. Heat value should be at least 8500kcal/m3, if less than this value, the power of the engine will be declined.
5. Gas pressure should be 3-100KPa, if the pressure is less than 3KPa, booster fan is necessary.
6.The gas should be dehydrated and desulfurated. Make sure that there is no liquid in the gas. H2S<200mg/Nm3
Application
Our Gas generator
Successful cases
Company Information and Certificates

FAQ: Q1.Are you a factory or trading company?
We have two modern factory. We have 50 factory workers and 5 of them are quality control and engineer guys. Welcome to visit our factory.
Q2. Is Your products the lowest price?
HAITAI take the quality into consideration prior. The price is based on the quality level and the order quantity. We have different quality level products for buyers option and discount is available from us when the order is big.
Q3.What's your warranty?
Re: All our products we offer one year warranty or 1500 hours which comes first.
Q4. If the goods in transit damage, how to do?
First of all, we will use stable packing, the possibility of the goods damaged during the shipping is low. If the goods is damaged during shipping and we covered the insurance, we will claim the insurance company and let them cover the loss. If there is no insurance cover, we will claim the shipping company and some times, we cover the loss of the goods for client.
Q5. Can we add our logo on products?
Yes, there are several ways to do this. We can put the label of your logo on the products or make the silk print of your logo on the products. It is free.
Q6. can we customize product?
OEM and ODM are welcomed from GT. We have rich experiences in this area.
