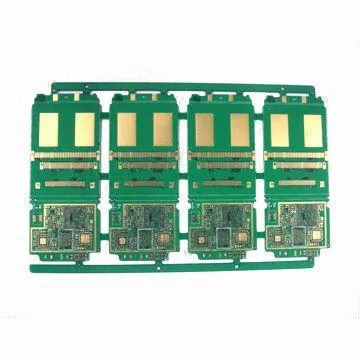

Customized HDI Electronic Toys Contorlling PCB Circuit Board Lay out PCB

Product Description

PCBA Assembly Printed Cirucit Board Provide SMT Lead-Free PCB Assembly
Fabrication of PCB, acquire components and assemble PCB:
Fastline Circuits is capable of providing full turnkey and partial turnkey printed circuit board
assembly services. For full turnkey, we take care of the entire process, including preparation of Printed Circuit Boards, procurement of components, online order tracking, continuous
monitoring of quality and final assembly. Whereas for partial turn-key, the customer can provide the PCBs and certain components, and the remaining parts will be handled by us.
Features-Our Products Advantage
1. Over 10 years of experience manufacturer in PCBA Pcb Assembly and PCB field.
2. Big scale of producing makes sure that your purchase cost is lower.
3. Advanced production line guarantees stable quality and long life span.
4. Design and produce almost any PCB as your requirement.
5. 100% test for all customized PCB products
6. One-stop Service, we can help to purchase the components
Pls see our PCB catalog below:
1. single-sided PCB
2. double sided PCB
3. Multilayer PCB(3-26+ layers)
4. Flexible PCB(FPC)
5. Rigid-flex PCB board
6. Aluminum PCB board for LED(1-4 layers)
7. MCPCB board (1-4 layers)
8.Ceramic PCB(1-4 layers)
9. HDI PCB board
10. High-frequency PCB
11. PCB assembly

PCB Manufacture Capability
Item	Manufacture Capability
Layers	1-26 Layers
HDI	2+N+2
Material Types	Fr-4, Fr-5, High-Tg, Aluminum Based , Halogen Free,
	Isola, Taconic, Arlon, Teflon, Rogers,
Max. Panel Dimension	39000mil * 47000mil (1000mm * 1200mm)
Outline Tolerance	± 4mil (± 0.10mm)
Board Thickness	8mil-236mil (0.2 - 6.0mm)
Board Thickness Tolerance	± 10%
Dielectric Thickness	3mil-8mil ( 0.075mm-0.20mm)
Min. Track Width	3mil ( 0.075mm )
Min. Track Space	3mil ( 0.075mm )
External Cu Thickness	0.5 OZ - 10 OZ ( 17um - 350um)
Internal Cu Thickness	0.5OZ - 6OZ ( 17um - 210um)
Drilling Bit Size ( CNC )	6mil-256mil ( 0.15mm - 6.50mm)
Finished Hole Dimension	4mil-236mil(0.1mm - 6.0mm)
Hole Tolerance	± 2mil (± 0.05mm)
Laser Drilling Hole Size	4mil(0.1mm)
Aspect Ration	16: 1
Solder Mask	Green, Blue, White, Black, Red, Yellow, Purple, etc.
Min Solder mask Bridge	2mil(0.050mm)
Plugged Hole Diameter	8mil-20mil ( 0.20mm-0.50mm)
Beveling	30o - 45o
V-scoring	+/-0.1mm, 15o 30o 45o 60o
Impedance Control	Min. 5% General ± 10%
Surface Finishing	HASL, HASL(lead Free), Immersion Gold
	Immersion Silver, OSP, Hard Gold ( up to 100u" )
Certification	UL RoHS ISO9001: 2000 ISO14000: 2004 SGS
Testing	Flying probe, E-TEST, X-RAY Inspection , AOI
Files	Gerber Protel DXP Auto CAD PADS OrCAD Express PCB etc

PCB advantages:
1 R&D team support
2 UL, RoHS,ISO9001,SGS
3.IPC class2
4.Advanced production line and prompt delivery.
5, Honest Credibility in China.
6. Professional and abundant experience in PCB.
7.Competitive price and good quality.
8. Excellent after-sales service.
Trade Terms:
1. We have no MOQ.
2. Payment Term: T/T or Western Union.
3. Delivery ways: UPS, FedEx, DHL, etc, door to door service by sea or air, etc.
Application:
1. Consumer electronics.
2. Industrial control.
3. medical instrument.
4. fire service implement etc.

Our Service:
1. Reply your enquiry in 2 working hours.
2.Experienced staffs answer all your questions in fluent English.
3.Customized design is avaliable OEM&ODM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
5. Special discount and protection of sales area provided to our distributor.

PCB Prototype Lead Time:
item	General time	Quick Turn
1-2	4 days	1 day
4-6 Layers	6 days	2 days
8-10 Layers	8 days	3 days
12-16 Layers	12 days	4days
18-20 Layers	14 days	5 days
22-26 Layers	16 days	6 days
Note: Base on all data received by us and must be complete and problem-free, Lead time is ready to ship time.

PCBA Technology:
1)Professional Surface-mounting and Through-hole soldering Technology.
2)Various sizes like 1206,0805,0603,0201, 1005 components SMT technology.
3) ICT(In-Circuit Test), FCT(Functional Circuit Test) technology.
4) PCB Assembly With UL, CE, FCC, RoHS Approval.
5) Nitrogen gas reflow soldering technology for SMT.
6) High Standard SMT&Solder Assembly Line.
7) High density interconnected board placement technology capacity.
Types of Assembly: THD (Thru-Hole Device); SMT (Surface-Mount Technology) ; SMT & THD mixed; 2 sided SMT and THD assembly
SMT Line Quantity: 30
SMT Min Pitch-QFP: 0.3mm
BGA-Min Pitch: 0.25mm
Component Package: Reels; Cut tape; Tube and tray; Loose parts and bulk
Board dimensions: Smallest size: 50*50mm ; Largest size: 520*420mm
Board shape: Rectangular; Round; Slots and Cutouts; Complex and Irregular
Board type: Rigid FR-4 ; Rigid-Flex boards ; Aluminum PCB
Assembly process: Lead-Free (RoHS)
Design file format: Gerber RS-274X ; BOM (Bill of Materials) (.xls, .csv, . xlsx)
Testing Procedures: Visual inspection; X-ray Inspection; AOI (Automated Optical Inspection); ICT (In-Circuit Test); Functional testing
Turnaround time: 1-5 workdays for only PCB assembly; 10-16 workdays for full turn-key PCB assembly.
Company Introduction
Fastline is a Leading PCB manufacturer in China. It was found in 2003, serving customers in over 40 countries from various electronic industries, Over 70% of products are exported to America, Europe and other Asia Pacific countries.
Fastline could meet all your PCB manufacturing needs, including High multilayer PCB, Aluminum based PCB, HDI PCB, Rigid-flex PCB, heavy copper PCB, and PCB assembly as well. Our products are widely applied in telecom, industrial control, power electronics, medical instrument, security electronics, aerospace and so on.
And provides "PCB One-stop PCB solution" to meet customers' diverse demands.
Our factories with a facility area of more than 40, 000 square meters with 1000 professional staff, And we have got the approval of ISO9001 certificates. UL Certification and all Products Meet RoHS compliance.
Fastline Circuits is commited to provide superior quality products and services that consistently meet and exceed our customer's requirements on time, every time!
Our Factory

PCB & FR4 PCB
PCBA
FAQ

Q1: Are you a factory or trade company?
A1: We have our own PCB manufacturing & Assembly factory.
Q2: What's your minimum order quantity?
A2: Our MOQ is not the same based on different items. Small orders are also welcome.

Q3: what file we should offer?
A3: PCB: Gerber file is better,( Protel, power PCB, PADs file), PCBA: Gerber file and BOM list.
Q4: No PCB file/GBR file, only have the PCB sample, can you produce it for me?
A4: Yes, we could help you to clone the PCB. Just send the sample PCB to us, we could clone the PCB design and work out it. Q5: What any other information should be offered except for file?
A5: Following specifications are needed for the quotation:
a) Base material
b) Board thickness:
c) Copper thickness
d) Surface treatment:
e) color of solder mask and silkscreen
f) Quantity
Q6: I am very satisfied after I read your information, how can I start to purchase my order?
A6: Please click the "send" at the bottom of this page or contact our sales on Trade Manage online! Q7: What is delivery terms and time? A7: We usually use FOB terms and ship the goods in 7-30 days depending on your order quantity, customization.
More information about PCB, please contact us!
