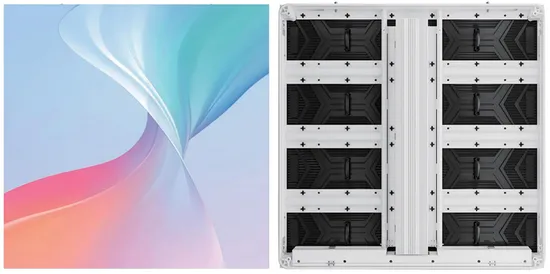

Hafond Light Weight Front Service LED Display for Outdoor Advertising Fos Series

Product Description

Product Name:Outdoor fixed Multi-function FOS series led display P3.9/P4.8//P5.2/P6.25/P7.8/P10.4
Description:Revolutionize your outdoor advertising with our latest LED displays, housed in a sleek profile aluminum box. Its lightweight design ensures easy post-maintenance handling while the energy-saving technology minimizes power consumption. Ultra-thin, space-efficient, and stylish, these displays are an eco-friendly solution that delivers brilliant visuals without compromising on performance or visual impact.
Product Parameters

Module Number	PH3.9	PH4.8	PH5.2	PH6.25	PH7.8	PH10.4
Pixelpitch	3.906mm	4.769mm	5.208mm	6.25mm	7.8125mm	10.416mm
Density	65,536 pixels/m²	43,264 pixels/m²	36,864 pixels/m²	25,600 pixels/m²	16,384 pixels/m	9,216 pixels/m
Led	3in1 SMD	3in1 SMD	3in1 SMD	3in1 SMD	3in1 SMD	3in1SMD
Module Resolution	128x64 pixels	104x52 pixels	96x48 pixels	80x40 pixels	64x32 pixels	48x24 pixels
Module Dimensions	500x250mm (19.69x9.84inch)	500x250mm (19.69x9.84inch)	500x250mm (19.69x9.84inch)	500x250mm (19.69x9.84inch)	500x250mm (19.69x9.84inch)	500x250mm (19.69x9.84inch)
Cabinet Resolution	256x256 pixels	208x208 pixels	192x192 pixels	160x160 pixels	128x128 pixels	96*96 pixels
CabinetDimensions	1000x1000x76mm (39.37x39.37x2.99inch)	1000×1000x76mm (39.37x39.37x2.99inch)	1000x1000×76mm (39.37x39.37x2.99inch)	1000x1000x76mm (39.37x39.37x2.99inch)	1000x1000x76mm (39.37x39.37x2.99inch)	1000x1000x76mm (39.37x39.37x2.99inch)
CabinetWeight	25kg	25kg	25kg	25kg	25kg	25kg
Brightness	5500-8000 nits	5500-8000 nits	5500-8000 nits	5500-8000 nits	5500-8000 nits	5500-8000 nits
MaxPowerConsumption	480w/pane	480w/panel	480wlpane	480w/pane	480w/pane	480w/pane
AvePowerConsumption	160w/panel	160w/panel	160w/pane	160w/panel	160wlpane	160w/pane
ViewingAngle	160°(W)140(H)	160°(W)90(H)	160(W)106(H)	160°(W)90(H)	160°(W)106*(H)	160(W)135°(H)
OperatingPowersource	110-240VAC/50-60Hz	110-240VAC/50-60Hz	110-240VAC/50-60Hz	110-240VAC/50-60Hz	110-240VAC/50-60Hz	110-240VAC/50-60Hz
OperatingTemperature	-20ºC~+50ºC	-20ºC~+50ºC	-20ºC~+50ºC	-20ºC~+50ºC	-20ºC~+50ºC	-20ºC~+50ºC
Refresh Rate	3,840Hz/s	3,840Hz/s	3,840Hz/s	3,840Hz/s	3,840Hz/s	3,840Hz/s
IP grade	IP65	IP65	IP65	IP65	IP65	IP65
Signal input Source	Composite,S- wideo,Component, HDMISDL,HD,VGA,DV	Composite,S- video,Component HDMISDL,HD,VGA,DV	Composite,S- video,Component, HDMISDL,HD,VGA,DV	Composite,S- video,Component, HDMISDL,HD,VGA,DV	Composite,S- video,Component, HDMISDL,HD,VGA,DV	Composite,S- video,Component HDMISDL,HD,VGA,DV
Certificate	CE ROHS FCC	CE ROHS FCC	CE ROHS FCC	CE ROHS FCC	CE ROHS FCC	CE ROHS FCC

Product Description
Front & rear maintenance are available
.
Support different size cabinet assembly

Multiple cabinet dimensions available: 1000*1000mm,1000*750mm, 1000*500mm

Optional bevel design easy for 90 ° splicing
High refresh rate, coherent picture without stutterring
Stable protection, outdoor work all-weather
Application The outdoor multi-function light-weight energy-saving FOS series LED display from
HAFOND excels in various outdoor applications, including billboards, street advertising,
retail storefronts, outdoor events, and digital signage. Its lightweight design and energy efficiency
make it an ideal choice for outdoor installations.

Certifications
Our Advantages Our team memebers have very rich experience working in led display field (since year 2016), and we are all working many years on exporting department, which means we can assist you to make shipment with forwarder, to save your time and energy on importing procedure.
Our products range is wide, range from indoor series to outdoor series, SMD and GOB, can satisfy your different project's requirements. We have professional engineer on assiting you with projects solution, screen installation, screen configuration. What's more, we not only care about quality, service, our price positioning is also very reasonable very affordable in led screen market.
Company Profile
Founded in 2014, HAFOND CO., LTD specializes in the design and manufacturing of high-quality indoor and outdoor LED display solutions. Throughout the years, we've dedicated ourselves to becoming a trusted name in the LED display market, known for our commitment to technology and customer service.
With our products now available in numerous countries and regions, HAFOND CO., LTD prides itself on building lasting relationships with clients, prioritizing their needs, and ensuring their satisfaction with every project. We are not just another LED display provider; we are a partner committed to adding value to your business.
