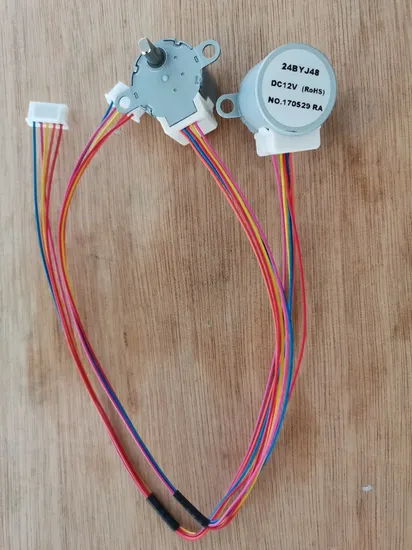

DC 12V Swing Stepping Motor
| US$1.00 | 1,000 Pieces (MOQ) |
Basic Info.
Model NO.
20BYJ46
Number of Stator
Single Phase
Excitation Mode
PM-Permanent Magnet
Function
Control
Number of Poles
None
Operate Mode
The Three Single Phase
Type
Magnetic-Electric
Certification
CCC, RoHS;CE
Brand
Daikin
Transport Package
Standard Export Packing
Specification
two long holes TOTAL L: 38mm 1 side L: 9mm
Trademark
CNTONGDA
Origin
China
HS Code
8501109990
Production Capacity
30000PCS/Month
Product Description
| BYJ Series Stepping Motor Characteristics | |||||||||||
| Model | Rated Voltage(DCV)I | Resistance Ω/Phase ( at 25ºC) | Max.freeload pull-in frequency (PPS) | Max.freeload pull-out frequency (PPS) | Pull-in Torque (mN.m) | Operation frequecny (PPS) | Detent Torque (mN.m) | Temperature Rise(K) | Noise (dB) | Step Angle (1-2phase) | Insulation Class |
| 20BY46 | 12 | 200 | ≥500 | ≥900 | ≥29.4 | 100 | ≥21.6 | ≤60 | ≤40 | 7.5°/85 | E |
| 5 | 60 | ≥500 | ≥900 | ≥29.4 | 100 | ≥21.6 | ≤60 | ≤40 | |||
| 24BYJ48 | 5 | 70 | ≥500 | ≥900 | ≥29.4 | 100 | ≥29.4 | ≤60 | ≤40 | 5.625°/64 | E |
| 12 | 200 | ≥500 | ≥900 | ≥49.0 | 100 | ≥29.4 | ≤60 | ≤40 | |||
| 12 | 250 | ≥500 | ≥900 | ≥49.0 | 100 | ≥29.4 | ≤60 | ≤40 | |||
| 12 | 300 | ≥500 | ≥900 | ≥49.0 | 100 | ≥29.4 | ≤60 | ≤40 | |||
| 12 | 320 | ≥500 | ≥900 | ≥39.2 | 100 | ≥29.4 | ≤60 | ≤40 | |||
| 12 | 380 | ≥500 | ≥800 | ≥29.4 | 100 | ≥29.4 | ≤60 | ≤40 | |||
| 12 | 200 | ≥300 | ≥600 | ≥9.8 | 100 | ≥7.35 | ≤60 | ≤40 | 5.625°/16 | ||
