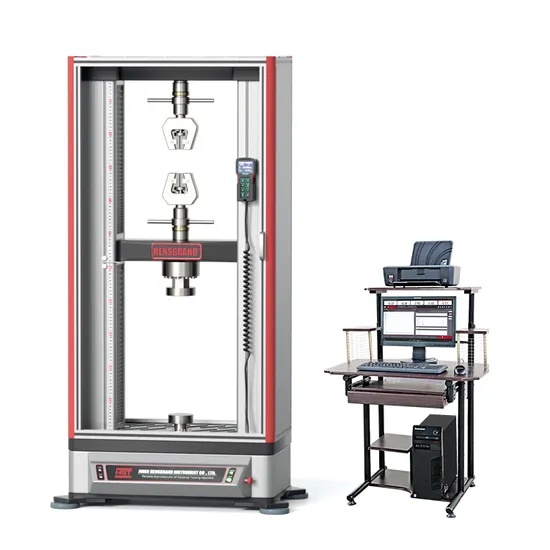

10kN 20kN 30kN 50kN 100kN Computer Control Universal Tensile Testing Machine
Basic Info.
Model NO.
WDW-10E
Max Diameter of Workpiece
500mm
Mass Scope of Workpiece
<900kg
Type
Universal Testing Machine
Maxcapacity
<1000KN
Accuracy Grade
1 or 0.5
Load Way
Electronic Load
Loading Method
Static Load
Display
Computer
Control
Computer Control
Weight
100-500Kg
Power Source
AC220V
Oil Cylinder Position
No
Grips
Customized
Color
Grey
Standard
ISO ASTM
Certificate
CE
OEM
Available
ODM
Available
MOQ
1 Set
Transport Package
Plywood Exporting Package
Specification
350kg 1.35CBM
Trademark
HST
Origin
Jinan, Shandong, China
HS Code
9024101000
Product Description
Product DescriptionApplication
This series material testing machine product group was primarily developed for standardized tests on ma- terials and components.
Used in conjunction with the intuitive HKtest software.
Test Typical: wide range of tension, compression, bending, shearing and low cycle test, include metal, building components, rubber, plastic, spring, high strength steel (HSS), aerospace and automotive structures, screws, nuts,large fasteners, wood products etc.
Standards
ASTMA370, ASTME4, ASTME8, ASTME9, ASTM D638, ASTM D882, ASTM D3039,ASTM, D3479, ASTM E517,ASTM, D695, ASTM D6641, ASTM D3410, ASTM D7791, ASTM D412, ISO6892, ISO527-3, ISO527-4, ISO7438, ISO7500-1, EN10002-4, GB/T228-2002, GB16491-2008, HGT 3844-2008 QBT 11130-1991, GB13-22-1991, HGT 3849-2008, GB6349-1986, GB/T 1040.2-2006, ASTM C165, EN826, EN1606, EN1607, EN12430 etc.
Main specifications
| Items | Model | ||||
| WDW-10E | WDW-20E | WDW-30E | WDW-50E | WDW-100E | |
| Structure | 4 Column and 2 Ball Screw | ||||
| Max. Load(kN) | 10 | 20 | 30 | 50 | 100 |
| Tensile space(mm) | 670 | 770 | 650 | ||
| Compression space(mm) | 900 | 1000 | |||
| Effective test width | 450 | 550 | |||
| Size(mm) | 850 * 590 * 1750 | 840*570*1850 | 950*660*2000 | ||
| Host Weight (kG) | 370 | 420 | 680 | ||
| Power Supply | 220V/50-60Hz | ||||
| Items | Model | ||||
| Model | WDW-200E | WDW-300E | WDW-500E | WDW-600E | |
| Structure | 4 Column and 2 Ball Screw | ||||
| Max. Load(kN) | 200 | 300 | 500 | 600 | |
| Tensile space(mm) | 700 | 700 | 800 | 800 | |
| Compression space(mm) | 1100 | 1100 | 800 | 800 | |
| Effective test width(mm) | 600 | 600 | 700 | 700 | |
| Size(mm) | 1102*870*2395 | 1450*1140*2730 | |||
| Host Weight (kG) | 2200 | 4000 | |||
| Power Supply | 380V/50-60Hz | ||||
| Model | HST WAW-100E | HST WAW-300E | HST WAW-600E | HST WAW-1000E |
| Structure | 6 Column (Four Columns Two Ball Screws) | |||
| Max. Load(KN) | 100 | 300 | 600 | 1000 |
| Load Accuracy | ≤± 1%/ ≤± 0.5% | |||
| Load Range | 2%~100%FS/ / 1%~100% | |||
| Displacement Resolution | 0.01mm | |||
| Max. Tension Test Space(mm) | 780 | 780 | 800 | 950 |
| Max.Compression Test Space(mm) | 550 | 550 | 650 | 700 |
| Column Effective Spacing(mm) | 485 | 485 | 500 | 560 |
| Max. Piston Stroke(mm) | 200 | 250 | 250 | 250 |
| Clamping Method | Hydraulic Clamping | |||
| Round Specimen Clamping Range(mm) | Φ4-Φ10, Φ10-Φ20 | Φ10-Φ20,Φ20-Φ32 | Φ13-Φ26,Φ26-Φ40 | Φ13-Φ26,Φ26-Φ45 |
| Flat Specimen Clamping Range(mm) | 0-15 | 0-15 | 0-15 | 0-20 |
| Flat Specimen Clamping Width(mm) | 80*80 | 80*80 | 90*90 | 100*100 |
| Power Supply | 3-phase,AC380V, 50Hz (Can Be Customized) | |||
Specification:
| Model | LAW-600E | LAW-1000E | LAW-1200E |
| Max. Load(kN) | 600 | 1000 | 1200 |
| Structure | Four Columns Two Ball Screws | ||
| Load Accuracy | ≤± 1%/ ≤± 0.5% | ||
| Load Range | 2%~100%FS/ 1%~100% | ||
| Load Resolution | 1/500000 | ||
| Deformation Measurement Range | 2%~100%FS | ||
| Displacement Resolution | 0.01mm | ||
| Max. Tension Test Space(mm) | 1350 | 1350 | 1350 |
| Column Effective Spacing(mm) | 580 | 580 | 610 |
| Max. Piston Stroke(mm) | 250 | ||
| Clamping Method | Hydraulic Automatic Clamp | ||
| Specimen sizes (mm) | 1*7, Φ9.5-φ21.6 | 1*7, Φ9.5-φ21.6 | 1*19, Φ12.7-φ28.6 |
| Compression Plate Size | Φ 160mm | ||
| Power Supply | 3-phase,AC380V, 50Hz (Can Be Customized) | ||
Specifications:
| Model | HST-YAW2000DH | HST-YAW3000DH |
| Max. Capacity(KN) | 2000 | 3000 |
| Testing space adjust method | Adjusting block | |
| Relative error | ±1% | |
| Max. vertical clearance between platens(mm) | 320 | 340 |
| Distance between two columns(mm) | 430 | 500 |
| Upper and low compression platen (mm) | Φ300 | Φ300 |
| Max. travel of piston(mm) | 120 | |
| Piston displacement speed(mm/min) | 75 | 50 |
| Power supply | AC380V/220V/50Hz/(can be customized) | |
Specifications:
| Model | JBDW-450CY-60/800007000 | JBDW-600CY-60/80 | JBDW-750CY-60/80 | |
| Max. impact energy (J) | 450 | 600 | 750 | |
| The distance between the pendulum shaft and impact point(mm) | 750 | |||
| Impact speed(m/s) | 5.2 | |||
| Raised angle | 150° | |||
| Standard span(mm) | 40+0.2 | |||
| Round angle of the jaw(mm) | R1-1.5 | |||
| Round angle of impact edge(mm) | R2-2.5,R8±0.05(special order) | |||
| Angle accuracy | 0.1° | |||
| Standard specimen dimension(mm) | 55x10x10 , 55x10x7.5 , 55x10x5 | |||
| Thickness of impact knife(mm) | 16 | |||
| Dip angle of supporting surface of supports | 11° | |||
| Cooling way | compressor | |||
| Capacity of sample box | 20 | |||
| Range of low temperature | -60°c/80°c | |||
| Speed of sending specimen | ≤2S | |||
| Power supply | 3phs, 380V, 50Hz Or 220V,60Hz | |||
