Flygoo Oxygen Concentrator Purity Meter Measures Oxygen Purity From 20.5-99.9%
| US$320.00 | 2 Pieces (MOQ) |
Basic Info.
Model NO.
FG-100-O2
Brand
Flygoo
Customized
Customized
Portable
Portable
Certification
CE, RoHS
Gas
O2
Type
Oxygen Purity Analyzer
Model
Fg-100-O2
Range
20.5 % ~99.9 %
Measurement
Ultrasonic
Repeatability
<± 1%
Accuracy
<± 1% Fs
Analog Output
4-20mA
Operating Ambient Humidity
5~80%Rh
Temperature
-40°c~+85°c
Response Time
T90 ≤ 30 Seconds
Embedded Installation
150*75mm
Weight
2.0kg
Power Supply
110-220VAC
Max. Pressure
14psi (1bar)
Input Flow Rate
0.2L-3.0L/Min
Sampling Method
Flow Type
Transport Package
Carton Case
Specification
150*75*120mm
Trademark
FG
Origin
China
HS Code
9027100090
Production Capacity
100 Pieces / Month
Packaging & Delivery
Package Size
20.00cm * 10.00cm * 18.00cm
Package Gross Weight
6.000kg
Product Description

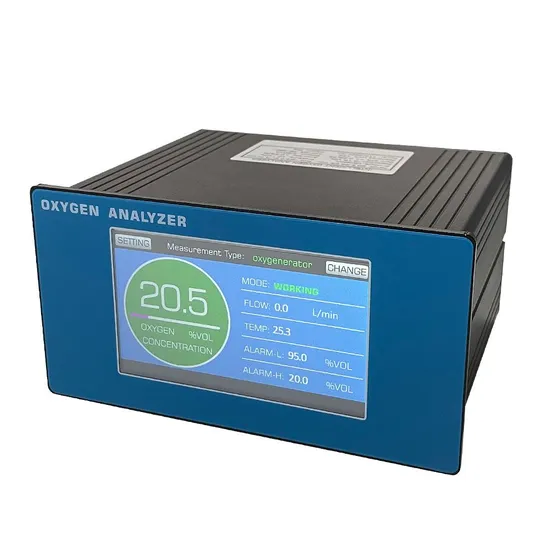

Flygoo Oxygen Concentrator Purity Meter Measures Oxygen Purity From 20.5-99.9%
Product Description Online oxygen purity analyzer measures oxygen purity from 20.5-99.9% at flows up to 3 L/Min. Perfect for verifying oxygen purity from your oxygen generator real-time.
Product Feature 1.The measurement range is 20.5-99.9% O2 2. Adopting original imported gas sensors, with accurate measurement results 3. The entire machine meets EMC design standards 4. Signal output 4-20mA and RS485 digital signals 5. Long calibration interval, high accuracy, stability and reliability 6. Touch screen operation interface 7. Longer service life and faster response speed
Product Parameters
| Model | FG-100-O2 |
| Concentration Indication Range | 20.5 % ~99.9 % |
| Measurement Principle | Ultrasonic |
| Repeatability | <± 1% |
| Measurement Accuracy | <± 1% FS |
| Analog output | 4-20mA |
| Operating Ambient Humidity | 5~80%RH |
| Environmental Temperature | -40°C~+85°C |
| Response Time | T90 ≤ 30 Seconds |
| Dimension | 150*75*120mm |
| Embedded Installation | 150*75mm |
| Weight | 2.0KG |
| Power Supply | 110-220VAC |
| Max. Pressure | 14Psi (1Bar) |
| Input Flow Rate | 0.2L-3.0L/min |
| Sampling method | Flow type |
Front Side
Back Side
