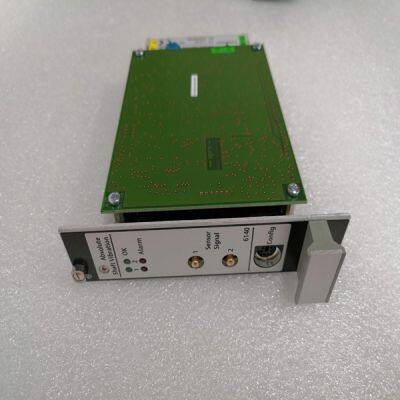

A6140/9199-00058

Product Details

Product Description

Product Description
Brand: EMERSON
Type:A6140/9199-00058
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts of our products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
Bus Supply Characteristics The BUS Supply should have the following characteristics: Must provide safety isolation from the power line. Can be regulated or unregulated. Bus Supply Return is connected to the Control Supply Return and I/O RTN in the drive. Typical BUS Supply: Unregulated, Isolating, step-down transformer with secondary rectified into capacitive filter. BUS Supply Return is connected to earth ground. Wiring from BUS Supply to Drive 10 ft maximum 16 AWG (minimum) Twisted pair Daisy chaining of multiple drive OK. No contactor or switching in the BUS wiring. Control Voltage (J1-1 to J1-2) + 10 VDC to +90 VDC Control Supply Type Isolating Unregulated or Regulated Common GND with bus supply and I/O RTN. 20 watt supply or 1 amp short circuit. Control Supply Wiring Wire control (J1-1) to bus (J1-3) or Wire control (J1-1) to separate supply to preserve status and fault information. (+ 10 VDC to + 30 VDC supply can be shared by Control and I/O) Control Supply Current 20 to 110 mA at 75 VDC 60 to 330 mA at 24 VDC 125 to 660 mA at 12 VDC 6.4.2 Bus Voltage Bus voltage outside the operating range (20 to 90 V) causes an undervoltage or overvoltage fault. Undervoltage and overvoltage faults are self-cleared when the fault conditions are cleared. NOTE Do Not allow the Bus Voltage to exceed + 90 VDC as it can damage the drive. Target design center voltage for unregulated supply is +70 to +75 VDC. This provides 15 to 20 VDC margin for line tolerance, transformer regulation, and regen pump up. Design center voltage for a regulated supply can be up to +80 VDC. 6.4.3 Control Voltage The control voltage range for normal operation is +10 VDC to +90 VDC. The control voltage can either be wired to the bus voltage so one supply can power the drive, or from a separate supply. Separately powering the control from the bus allows the bus to be powered down for safety while drive status and fault information remain available. NOTE: Control and I/O can share a single +10 VDC to +30 VDC power supply. NOTE Do NOT allow the Control Voltage to exceed + 90 VDC as it can damage the drive.Grounding Provide safety isolation with the external bus and control supplies from the power line. NOTE The drive cannot be powered from an electrically Hot supply as it does not contain an isolation barrier. The Ctrl and Bus voltages and non-opto coupled I/O grounds (I/O RTN) are commoned inside the drive. The Ctrl and Bus power supplies share a ground pin (Bus/Ctrl Gnd). Join and connect to the negative terminals of the Ctrl and Bus power supplies. The I/O RTNs are normally connected to the signal ground of the system. (Some of the I/O is opto coupled and have separate returns. Be sure to thoroughly review this document for details.) The power supply negative terminal should be grounded somewhere in the cabinet. The chassis should also be grounded. In normal operation there should be no significant voltage between ground and the Bus/Ctrl Gnd and I/O RTNs. NOTE The maximum voltage allowed between Bus/Ctrl Gnd and chassis is 100 VDC.
