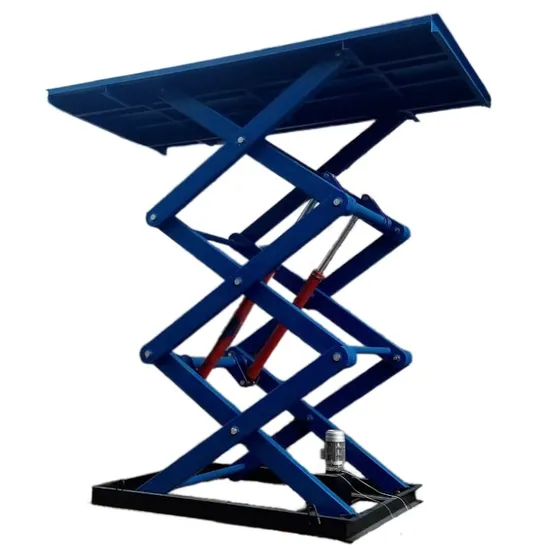

3t Load 1.5m Lifting Height Cargo Lift Platform
| US$3,350.00-6,860.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SJG3-1.5
Application
Warehouse Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
Weight Level
Moves
Stationary
Driven Type
Hydraulic
Running Mode
Stationary
Feature
Explosion-Proof
Certification
CE, ISO 9001
Lifting Height
1500mm
Table Size
3000*1000mm
Capacity
3000kg
Closed Height
720mm
Cylinder
Dia.110*1PC
Main Material
120*60*5mm Steel Tubes
up Frame Size
14# Heavy Steel, Q235
Platform Thickness
4mm Checkered Plate
Handrail Height
900mm, 4PCS
Power
3kw/380V/50Hz
Control
Schnaider Electrics, Two Control Boxes
Spare Parts
Oil Pipes &Gasket, Seal Ring, Travel Switch
Delivery
About 15 Working Days
Payment
T/T;50%Deposit in Advance and 50% Before Shipment.
Transport Package
Plywood Case Packing
Specification
SJG3-1.5
Origin
China
HS Code
8428909090
Production Capacity
50000PCS/Year
Product Description
Stationary Scissor Cargo Lift PlatformStationary scissor lift platforms are widely used machines for many fields, the most popular using are in warehouse,basement,first floor,etc, which for carrying the cargos,cars and so on, to the high floors.
It is design and produce as clients' requirements, as long as telling us the requirements of capacity, platform size, lifting height, we can design, supply drawing and give offer.
Product Parameters
These are the types which we exported to the customers following:
| Model | Capacity(kg) | Table size(m) | Lifting height (m) | Closed height(m) | Power |
| SJG3-4.5 | 3000 | 5.7*2.0 | 4.5 | 0.85 | 4KW/380V |
| SJG0.5-2.7 | 500 | 1.5*1.0 | 2.7 | 0.5 | 1.5KW/380V |
| SJG2-5 | 2000 | 1.75*1.2 | 5 | 1.03 | 3KW/380V |
| SJG1.5-2.4 | 1500 | 2.2*1.5 | 2.4 | 0.45 | 3KW/380V |
| SJG5-3 | 5000 | 3 * 2 | 3 | 0.8 | 4KW/380V |
| SJG1.5-4 | 1500 | 2.5*1.5 | 4 | 1.0 | 3KW/380V |
| SJG4-4.4 | 4000 | 2 * 1 | 4.4 | 1.1 | 4KW/380V |
| SJG2-11 | 2000 | 5.5 * 2.2 | 11 | 1.2 | 5.5KW/380V |
| SJG1.5-4 | 1500 | 1.8 * 2 | 4 | 0.86 | 4KW/380V |
| SJG0.7-0.95 | 700 | 0.95*0.8 | 0.95 | 0.4 | 2.2KW/380V |
| SJG0.2-2.3 | 200 | 1.3*1.0 | 2.3 | 0.48 | 2.2KW/380V |
| SJG3-2.3 | 3000 | 1.6*1.4 | 2.3 | 0.66 | 2.2KW/380V |
| SJG1-5 | 1000 | 1.6*1.5 | 5 | 0.92 | 2.2KW/380V |
| SJG2-6 | 2000 | 2.0*2.0 | 6 | 1.03 | 4KW/380V |
| SJG2-5 | 2000 | 2.1*1.2 | 5 | 0.87 | 4KW/380V |
| SJG3-6.5 | 3000 | 2.2*1.9 | 6.5 | 1.52 | 5.5KW/380V |
| SJG2-5 | 2000 | 2.3*1.4 | 5 | 0.87 | 4KW/380V |
| SJG2-5.15 | 2000 | 2.3*1.44 | 5.15 | 0.87 | 4KW/380V |
| SJG2-4 | 2000 | 2.5*1.5 | 4 | 0.86 | 4KW/380V |
| SJG2-9 | 2000 | 2.5*2.0 | 7.5 | 1.43 | 4KW/380V |
| SJG1.5-7.9 | 1500 | 2.6*2.0 | 7.9 | 1.2 | 4KW/380V |
| SJG2-5.4 | 2000 | 2.9*2.0 | 5.4 | 0.82 | 4KW/380V |
| SJG2-4 | 2000 | 3.0*1.6 | 4 | 0.83 | 4KW/380V |
| SJG2-4.5 | 2000 | 3.0*2.5 | 4.5 | 0.82 | 3KW/380V |
| SJG3-4.5 | 3000 | 4.3*2.8 | 3 | 1.03 | 5.5KW/380V |
| SJG1.5-8.5 | 1500 | 2.25 *1.6 | 8.5 | 1.2 | 4KW/380V |
---
Sample sketch of scissor lift load 3t lifting height 1.5m:
Main Features
★ Design according to clients' requirements, the max load capacity can be 30 tons.
★ Emergency and overload protection devices.
★ Anti-slip checkered steel plate of the paltform surface.
★ Imported or domestic joint venture hydraulic pump, cylinder and seal ring, and other spare parts are available.
★ Controls on the different floors or levels for customers if they need.
★Supply for detailed installation drawings, operation and maintainance manual, hydraulic diagram, electric diagram. Good warranty and service.
