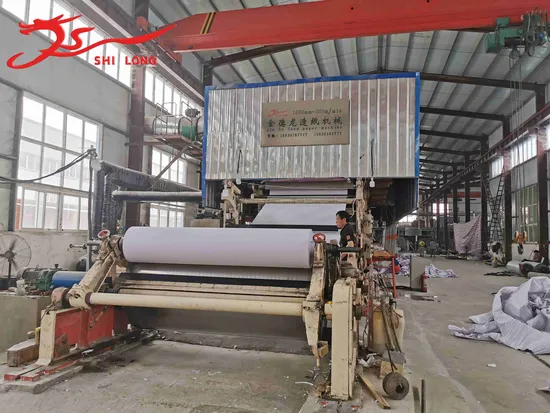

Culture Paper Making Machine 2400mm Fourdrinier Wire Paper Machine

Product Description

Cultural Paper Making Machine 2400mm Writing Paper Manufacturing Machine for Factory Price Product Description Cultural paper machine mainly uses waste paper and wood pulp as raw materials to produce cultural paper, book paper and other common paper. It mainly has the following characteristics:
1) Reliable quality, stable performance, convenient operation, energy conservation, environmental protection.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) It is made up of molding, drying, transmission, pressing, walking platform and reeling parts.
4) Running in a high automatization and intellectualization.
5) Computer PLC control system with easy operation.


Product Parameters

Raw material	Waste paper,waste carton paper
Finished paper	Newspaper,cultural paper,writing paper
Paper width	2400mm
Paper weigth	40-180g/m2
Capacity	20-30T/D
Design speed	300m/min
Working speed	200-250m/min
Drive way	AC frequency conversion,section drive

Detailed Photos 1.Headbox & Wire Section:
(1) Fourdrinier table length is usually between 13m and 24m.(decided by working speed).
(2) It can select open-type headbox when the working speed is less than the 250m/min;
(3 )Select the air-cushioned headbox when the working speed is more than 250m/min.
(4)The dewatering components are usually uses the stainless steel vacuum suction box. Full ceramic girder or inserted ceramic girder.
2.Press Section: (1) The press consists of a vacuum suction device, four rollers twin press and one main press.(2) Four rollers twin press specially suit for making newsprinting paper,culture paper and writing paper.(3 )The main press can improve press nip width dewatering wet sheet strength and finished paper density.
3. Drying Section: (1) It usually uses several dryer cylinder groups with the diameter of Φ1500mm or Φ1800mm. drive: closed gear box each dryer group single drive or single gear box each dryer group multi-points drive.(2) When wet paper enters into dryer section, it can select different leading way and paper orientation according to PM working speed, production basis weight and pulp impurity.(3) The wetting size can increase about 180% finished paper ring crush index.
4.Calendering Section
The calender is used to improve the gloss, smoothness and tightness of the paper, reduce the air permeability and obtain the paper with uniform thickness.
Company Profile Qinyang shilong paper machinery factory is a high-tech enterprise integrating design, production and sales, specializing in the production of paper machinery and pulping equipment. It mainly produces paper machines and papermaking equipment, and can produce various specifications of toilet paper machines, corrugated paper machines, cultural paper writing paper machines, kraft paper machines, garden net paper machines, long net paper machines and stacked net paper machines.
Certifications
Packaging & Shipping
Cooperative customers
FAQ1. How long it will take to get the quotation?--We usually give reply within 24 hours after getting your inquiry. If you are urgent to get the quotation, please feel free to call or tell us by email, then we can reply you as the first priority.2. Can you make paper mill design for us?--Yes, we have professional team with rich experience of paper mill design by CAD software. You only need to tell us your open land dimension, we will make your future paper mill design.3. What's the payment terms?--30% initial payment when place your order, 70% balance payment before shipment.4. How about your machine quality, we are worry about the quality?--Shilong is a mature brand in china, 30 years manufacturing experience of different kinds of paper machines. We strictly manufacture and manage according to IOS9001:2008 System. And can match all the CE standard or more strict standard. Our paper machine is running well in more than 20 countries. 5. Could your engineer teach and train our worker and stay in our factory for long time?--Yes, we will send rich practiced experience engineers to your country to install and test the machine and train your workers, but you should pay them salary.
