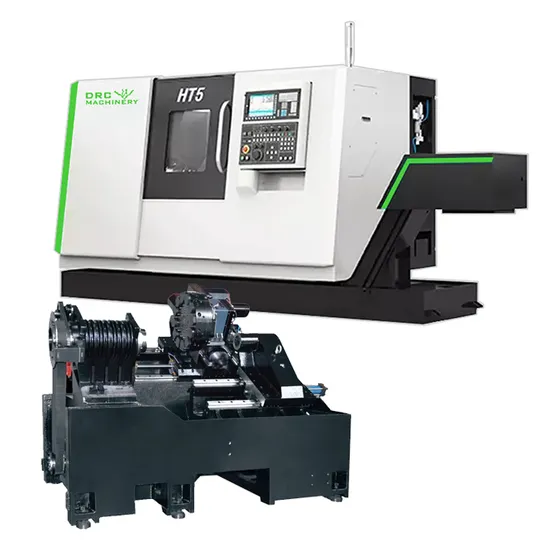

German Turning Center C Y Axis Ht6 Turning Milling Compound CNC Lathe
Basic Info.
Model NO.
HT6 MY
Type
Turret Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE
Condition
New
Spindle Maximum Speed
3000rpm
Chuck Diameter
250mm
Spindle Bore
102mm
Front Bearing Diameter
140mm
Maximum Swing Over Bed
680mm
Transport Package
Packing in Seaworthy Wooden Cases
Specification
Dimension(L*W*H): 5050 * 1900 *2050 mm
Trademark
DRC
Origin
China
Production Capacity
500
Product Description
German CNC turning center C axis and Y axis HT6 MY turning and milling compound centerHT6LMY CNC lathe is a four-axis linkage, fully closed-loop CNC machine tool. The machine machine-electric-hydraulic integrated layout adopts a fully enclosed protective cover, the door opens to the left, and the operating table is located on the left side, and the ergonomic swing design makes the operation more convenient. Each servo feed shaft adopts high-speed silent ball screw, elastic coupling is directly connected, fast moving speed, low noise, high positioning accuracy and repeated positioning accuracy; the servo motor is equipped with an absolute value encoder, no cumulative error, no memory, No need to find a reference point, the position information will not be lost after the power is cut off. The machine tool has strong functions, high precision, reasonable layout, beautiful appearance, easy operation and convenient maintenance.
| Technical date | ||
| Spindle head | type | FL220 h5 |
| Spindle maximum speed | rpm | 3000 |
| Max. Torque | N×m | 420 |
| Spindle power | Kw | 15-18.5 |
| Chuck diameter | mm | 250 |
| Spindle bore | mm | 102 |
| Front bearing diameter | mm | 140 |
| Spindle bearing lubrication | type | Grease |
| Linear motion lubrication | type | Oil |
| Speed range | rpm | 5-3000 |
| Work area | ||
| Maximum swing over bed | mm | 680 |
| Maximum cutting diameter | mm | 465 |
| Maximum cutting length | mm | 1000 |
| Maximum bar capacity | mm | 75 |
| Travel of Z-axis | mm | 1050 |
| Travel of X-axis | mm | 260 |
| Travel of Y-axis | mm | ±60 |
| Ball screw | ||
| X/Y/Z axis ballscrew DxP | mm | 40 x 10/40 x 5/40 x 10 |
| Feed | ||
| Rapid traverse Z | m/min | 24 |
| Rapid traverse X | m/min | 24 |
| Rapid traverseY | m/min | 12 |
| Rapid traverse C | m/min | 100 |
| Feed force | ||
| Feed force X/Z | N | 7500 |
| Number of axis | | 4 |
| Measuring system | ||
| X/ Y/Z axis measuring system | | Absolute rotative |
| (X / Y/Z);VDI/DGQ 3441 Positioning | mm | 0.008/0.008/0.01 |
| (X /Y/ Z);VDI/DGQ 3441 Repeatability | mm | 0.005/0.008/0.008 |
| Tool attachments | ||
| Power turret | | BMT55 |
| No. of tool stations Driven tools | # | 12 |
| T-T time | sec | 0.25/0.5 |
| OD tool size | mm | 25/40 |
| Maximum speed of tool driven | rpm | 3000 |
| Tool driven power | Kw | 3 |
| Max. torque of tool driven | N×m | 45 |
| Electrical specifications | ||
| Voltage | V | 380 ±10% |
| Frequency | Hz | 50 ± 1% |
| Max. installed power | KVA | 50 |
| 400v lie protection fuses | A | 100 |
| Connection cables section | mm2 | 4 x 10 |
| Hydraulic unit | ||
| Max. working pressure | bar | 50 |
| Reservoir capacity | l | 35 |
| Pump flow | I/ in | 24 |
| Coolant system | ||
| Pump delivery/Capacity with tank | l /min | 30/180 |
| Pump pressure | bar | 5 |
| Noise level | ||
| Less than | dB (A) | ≤80 |
| Control system | | |
| FANUC | - | 0iTF plus |
| Net weight | kg | 7800 |
