Automatic Small Toilet Roll Paper Making Machine Production Line Price

Product Description

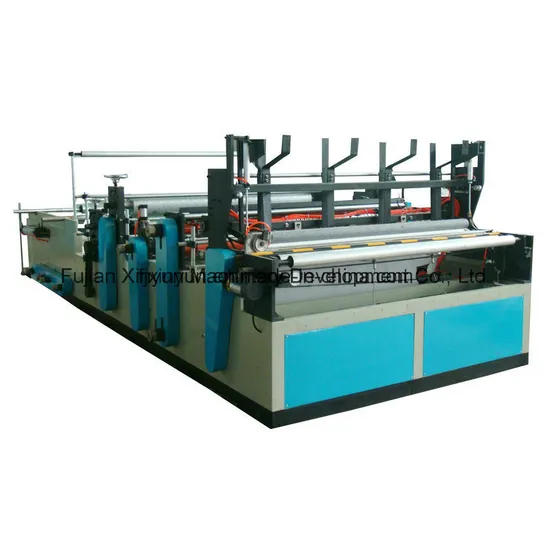

Automatic small toilet roll paper making machine production line price XY-TQ-A-D XY-TQ-A-D Full-automatic toilet paper production line is for converting Jumbo roll paper into samll toilet paper roll, which composed of
1 set of XY-TQ-1575B Full-automatic high-speed rewinding and perforated toilet paper machine(it can be 2 sets according to requirement),
1 set of XY-AI-280 cutting machine,
1 set of XY-AI-398A multi-rolls packing machine,
1 set of XY-SD-A paper core making machine and convey belts.
Production Process: Unwinding---Embossing---Rewinding---Tail gluing---Edge Trimming---Rewinding---Cutting---Packing
Video link: https://youtu.be/NxkkoxSDWUQ
https://youtu.be/x3emU60AIyQ
https://youtu.be/Wv_Dxturul0
Or you will like full automatic toilet paper production line.
Video link: https://youtu.be/D9FlPqfNf5A
Semi automatic toilet paper production line.
Video link: https://youtu.be/W0_i_2OG2y4
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-8 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
If you need more information about these machine,please feel free to contact me!
Welcome to contact us to get more details!
We can design the machine according to your request.

XY-TQ-A-D
Parent roll width	1750mm--2800mm
Parent roll diameter	Up to Φ1200mm
Core inside diameter of parent roll	Φ3"(76.2mm)or as requested by customer
Machine speed	180-220m/min depending on model
Operating speed	150-200m/min, 3 cycles(logs)/min
Finished roll outside diameter	Toilet paper:Φ90-110mm
Perforation pitch	Variable, any size needed
Sheet count	Increments of one sheet
Inner diameter of core of finished product	Φ40-60mm
Quality of raw material	1 or 2 plies , 14-20g
Installed power	7.5Kw~15Kw
*Please point other specifications
