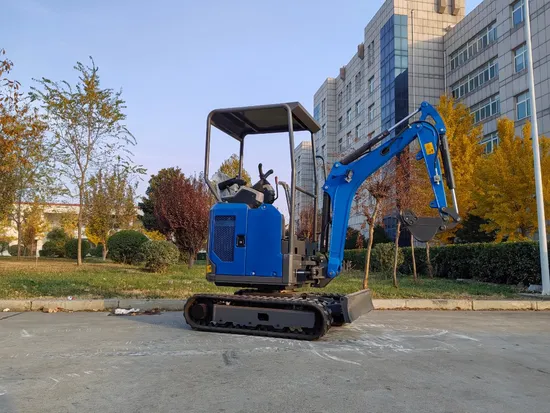

Hydraulic Crawler Excavators Tracked Type Small Micro Mini Excavator with CE Euro 4 Engine Attachments for Excavator Cheap Price

Product Description

Product Description

Bucket Capacity	0.025m3	Engine	KOOP 192F Diesel Engine (Euro 5)
Chassis Width	1100mm	Engine Power	7.0kw
Track Length	1300mm	EPA Engine Optional	Briggs&Stratton gasoline /13.5hp
Gradeability	40o	Max.Digging Height	2550mm
Chassis Ground Clearance	385mm	Max.Dumping Height	1710mm
Track Width	180mm	Max.Digging Depth	1740mm
Volume of fuel tank	3.5L	Max.Digging Radius	3100mm
Overall Dimension	2200*1100*2200mm	Turning Radius	1635mm
Transport Length	2400mm	Bucket excavating force	11KN
Excavator Height	2200mm	Operating Weight	1100kg
Hydraulic flow	40L/Min	Configuration	Valve:Beifang Brand
Hydraulic tank capacity	16L		Pump:KJun Brand
Working pressure	16Mpa		Piston pump
			Eaton Walking Motor

Product Details

1.
Piston pump loadsensitive, soft andpowerful action,low engine temperature, energy andfuel saving.
2.
Double row beadslewing support.High speed, high efficiency, more flexibleand more stable
3.
Double-rotary motor,double rotary support force is large,long life, play abuffer role, soft,comfortable andstable movement
4.
The track length of 41 sections increases the ground contact area and makeswalking more stable.Tailless swing, flexible and convenient
5.
American Eaton walking motor self-braking integrated motor with high efficiency and stable operation
6.
Hammer cut-offvalve,durable and wear-resistant cast steel material,good mechanical perfor-mance,prevent oil dripping and leakage
Company Profile
Jingshi Machinery Equipment Co. , Ltd is a modern enterprise specializing in the research and development, production, and sales of small excavators, mini excavators, ultra small excavators,agricultural excavators, spiral drills, wood grabs,buckets, hydraulic shears, quick couplings, and various excavator accessories. The company is located at No.70 Kaixuan Road, Liuxing Street, Hightech Zone, Jining City with thousands of squaremeters of modern production workshops and research and development technology centers with international advanced levels.
The hydraulic spiral dril developed and produced by the company is used for drilling projects invarious soil layers such as electricity, telecommunications, agriculture, municipal engineering.highways, high-speed railways, construction, petroleum, forestry, etc. The construction efficiency is extremely high, saving labor costs. The excavators developed and produced havegood technology, excellent performance, reasonable structure, simple operation, safe use.elegant and novel design, and high cost-effectiveness. They are particularly suitable for urbanand rural construction, road and bridge pipeline construction, landscaping, farmland renovation and small and medium-sized water conservancy projects. Establish a good market reputationduring the production process. We have professional technicians to provide process design for your products, and dedicated inspectors to produce high-quality products for you. With excellent product quality, thoughtful after-sales service, and honest business style, thecompany has established a good corporate image among numerous users.
Packaging & Shipping

FAQ
1: Are you factory or trading company?
A: We are factory focus in producing small size excavators.
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, Western Union (can be) could accepted
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO.
3: What about the delivery time?
A: 7-20 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occurs first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs .
