Bsj Automatic Rotating Double Winding Polyethylene Plastic Film Blowing Machine

Product Description

Product Description

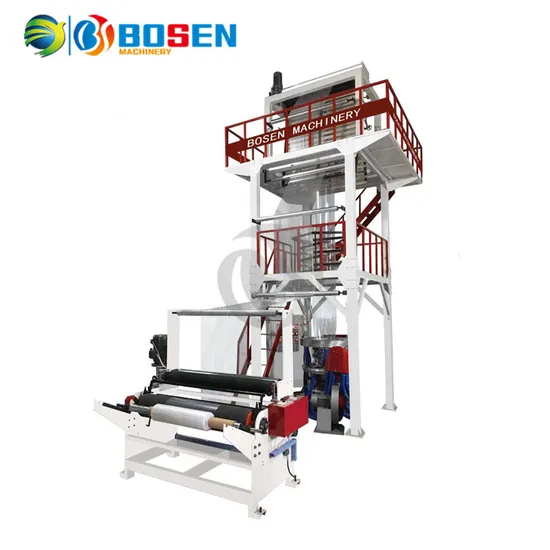

BSJ Automatic Rotating Double Winding Polyethylene Plastic Film Blowing Machine
It is used for blowing PE ( HDPE LDPE) film , shrinkable film which is widely used for as laminating film, packing film ,agriculture film , film for textile, clothing bag,etc.

Detailed Photos
Product Parameters

Model	BSJ-90-2200	BSJ-100-2700	BSJ-120-3200	BSJ-140-4200
Suitable Material	LDPE LLDPE
Max Film Width(mm)	2000	2500	3000	4000
Film Thickness(mm)	LD:0.015-0.15
Max Extrusion Output LD	160kg/hr	200kg/hr	280kg/hr	350kg/hr
Extrusion unit
Gear Box	225	250	250	315
Screw Diameter(mm)	φ90	φ100	φ120	φ120
Screw L/D Ratio	30:01:00
Screw's Material	38 CRMOALA
Barrel's Material	38 CRMOALA
Barrel's Cooling Fan	370W×3	550W×3	550×4	550×4
Thermo Control (zone)	4	5	5	5
Driving Motor (kw)	45	55	75	90
Extrusion Die
Die Size (mm)	LD:φ350/400	LD:φ400/500	LD:φ500/600	LD:φ700/800
Rotary Die Head (mm)	360°Continue Rotary 360°
Thermo Control (zone)	3	4	4	4
Air Ring	1 PCS
Cooling Blower (kw)	5.5	7.5	11	15
Take-UP Unit
Roller Width (mm)	φ165×1600	φ190×2100	φ220×2600	φ220×3200
Take-UP Motor (kw)	1.5	2.2	2.2	2.2
Take-UP Speed(M/min)	5-60	5-60	5-50	5-40
Winding Unit
Type OF Winder	Surface Friction Double Winder
Roller Width (mm)	1600	2100	2600	3200
Winding Motor (kw)	1.6kw	1.5kw	2.2kw	2.2kw
Winding Speed(M/min)	5-60	5-60	5-50	5-40
Voltage	380V, 50HZ, 3PHASE
Cover Dimensions (m)	6.8×2.6×6.5	7.5×3.2×7.5	9×4.2×9	11×5.0×11.5

Certifications
Packaging & Shipping
Company Profile
After Sales Service
1.Guest:Are you a manufacturer or a trade company?
BOSEN: We have our factory for manufacturer and we also trade associated products.We are Wenzhou bosen machinery co. td. We are doing machines since 2000.
2.Cuest: Do you accept speclal design?
BOSEN:Yes, we accept design and manufacture products according to client's special requirements.
3.Guest: What about your packege?
BOSEN:We use film stretch package and contrainer, or you can order with wooden case package.
4.Cuest: How long wil you take before shippng?
BOSEN: It depends on the products that you need,but we guaranteefor shiping as fast as we could. Normally it will take 30 days after we receive the payment.
5.Guest: How can l go to your fectory?
BOSEN: We are in ruiancty Zhejang China. If you want to come,you can take airto Wenzhou air port, Or take train to RuiAn station.

6.Guest: How can l get after-sale service?
BOSEN: One year guarantee time, and 10 years after sale service.
