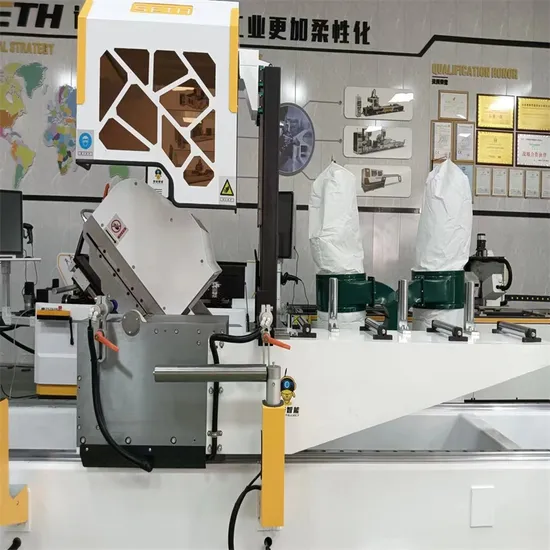

Window Door Making Machine Aluminum Cutting Machine with Dual Head CNC at Any Angle
| US$8,500.00-19,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LJB2B-CNC-500*6000
Condition
New
Certification
ISO, CE, Integrated Casting
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Power Supply
380V/50Hz
Saw Head Motor
2*3.0km 2840r/Min
Working Pressure
0.6~0.8MPa
Air Supply
60L/Min
Cutting Length
410~4300
Cutting Width
Max.210mm
Cutting Height
Max.320mm
Max.Cutting Slop
45° 135X220mm
Cutting Angle
Any Angle From 45 ° to 157.5 °
Feeding Speed
0·3m/Min
Saw Blade Specification
Φ600X4.4X30 Z=144
Overall Dimension
5800X1700X1900mm
Weight
2000kg
Transport Package
Wooden Box
Specification
600*4300
Trademark
Seth
Origin
Jinan
HS Code
8461500090
Production Capacity
500 Units/Month
Packaging & Delivery
Package Size
620.00cm * 210.00cm * 230.00cm
Package Gross Weight
2200.000kg
Product Description
Product Description
CNC Arbitrary angle double head precision cutting saw for aluminum profile
(1). Mainly used for cutting industrial aluminum profiles, aluminum doors and windows, curtain wall materials, and also used for cutting and blanking PVC and wood profiles.
(2) The directly connected blades adopt lever-swing cutting type.The feeding of the blade is driven by hydraulic damping cylinder, with smooth cutting.
(3) The imported high precision blade makes the cutting surface more smooth.
(4)The cutting angle is auto adjustable through the imported servo motor
between 45° to 157.5° Imported control system can accomplish cutting
optimization.
(5)Several profile processing dimensions can be input in one time and
make continuous cutting.
(7)The processing dimension can be directly input, the cutting length can be changed without returning the reference point.
(8)The airproof device under the worktable has wonderful crumbsclearing effect.
(9)The following saw cover keeps it working in the clean environment.
The profile is clamped by two cylinders in every head, and kept the
cutting security.
| Power supply | 380V/50Hz |
| Saw head motor | 2×3.0kW 2840r/min |
| Working pressure | 0.6~0.8MPa |
| Air supply | 60L/min |
| Cutting length | 410~4300mm |
| Cutting width | Max. 210mm |
| Cutting height | Max. 320mm |
| Max. cutting slope | 45°210×280mm 90°210×320mm |
| Cutting angle | 90°, 45° |
| Feeding speed | 0~3m/min |
| Saw blade specification | Ф600×4.4×Ф30 Z=144 (saw blade 500/550/600mm) |
| Overall dimension | 5800×1700×1900mm |
| Weight | 2000kg |
Detailed Photos
