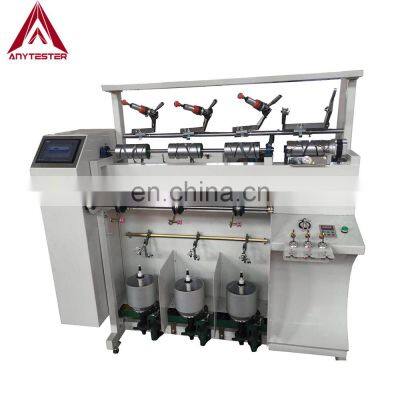

Lab Two-For-One Winding Machine With the function of Winding and Twisting

Product Description

Product Description
Product DescriptionAT207 Lab Two-For-One Winding Machine is a combination machine of winding and twisting. It can wind up to three yarns from three bobbins into one bobbin without twisting and doubly twist yarn with the rate of two twists per turn. It doubles the twisting speed than the traditional twisting device. Features Touch screen control and display; One working position for winding and three working positions for double twisting; Convenient and easy to operate; SpecificationModelAT207Number of spindles1 for winding3 for double twistingGrooved drumO/D82mmPitch: 2.5×147Take-up packageCylindricalMax. package diameter¢280mmMax. length setting999999 meter, electronic settingDrive modeMotor with adjustable speedMax. winding speed1100meter/minuteYarn-guiding traverseStandard 147mmPower supplyAC220V 50Hz, single-phasePacking & DeliveryPackagingSize(mm)6220 (L) * 760 (W) * 1950(D)Weight1800KgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. Contacting usERIC QINWebsiteMobile Phone+86 188 5510 5986Whatsapp+86 188 5510 5986Skype eric-qlkWechat+86 188 5510 5986PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most product
