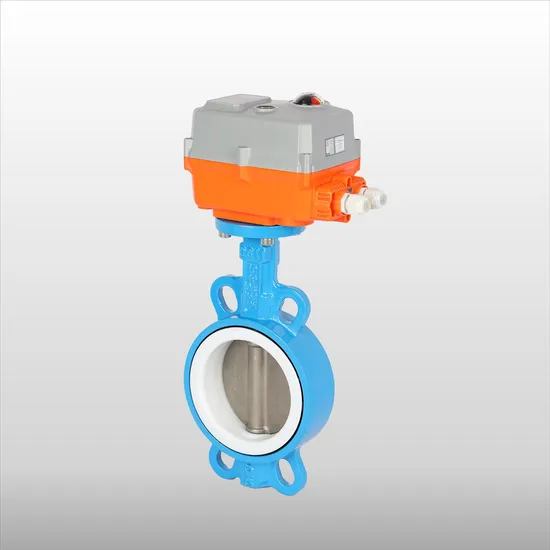

Flange Butterfly Valve Flange Wafer Butterfly Valve Automatic Water Shut off Valve for Water Leak Control

Product Description

Electric Butterfly Valve EPDM Cast Iron
Compact design and light weight, small electrical actuator with fail-safe function (NC/NO)

MTD SERIES ACTUATED VALVE Enclosure level:IP67, Mechanical port:ISO5211 (F03/F05/F07//F10), It can be used up to 500,000times. Housing material:ABS/DIE CASTING ALUMINUM, with manual override
PICTURE	MODEL		ON AND OFF VOLTAGE	TIMES		MODULATING VOLTAGE
	MTD02N-20N Max 24N		AC 24V/AC 110V/AC 220V DC/AC95-265 DC24v,DC12v	10s/15s		AC110v 4-20ma DC24V 4-20ma DC24,AC/DC95-265v 4-20ma
	MTD05N-50N Max60N.		AC 24V/AC 110V/AC 220V DC/AC95-265 DC24v,DC12v	12s/20s		AC110v 4-20ma DC24V 4-20ma DC24,AC/DC95-265v A-20ma
	MTD08N-80N Max96N.		AC 24V/AC 110V/AC 220V, DC/AC95-265, DC24v,DC12v	10s/20s		AC110v 4-20ma DC24V 4-20ma DC24,AC/DC95-265v 4-20ma
	MTD10N-100-110N Max132N		AC 24V/AC 110V/AC 220V, DC/AC95-265, DC24v,DC12v	10s/20s		AC110v 4-20ma DC24V 4-20ma DC24,AC/DC95-265v 4-20ma
	MTD20N-200N Max 24N		AC 24V/AC 110V/AC 220V, DC/AC95-265, DC24v,DC12v	25s		AC110v 4-20ma DC24V 4-20ma DC24,AC/DC95-265v 4-20ma
	MTD40N-400N,Max450N.		AC 24V/AC 110V/AC 220V, DC/AC95-265, DC24v,DC12v	25s		AC110v 4-20ma DC24V 4-20ma DC24,AC/DC95-265v 4-20ma
	MTD100N-1000N		AC 24V/AC 110V/AC 220V, DC/AC95-265, DC24v,DC12v	10s/45s		AC110v 4-20ma DC24V 4-20ma DC24,AC/DC95-265v 4-20ma
MODULATING ACTUATOR INSIDE PARTS		ON AND OFF ACTUATOR INSIDE PARTS MTD valve electric actuators CE/ISO9001

Diemnsion MTD-05NAC Series normal on/off actuator usage instructions
Direct mount [female octagonal output shaft] CE ISO9001
Main Parts

Main parts
					Parts	Material		Parts	Material
				1	Actuator	Heatproof ABS or Casting aluminum	6	Labe	PVC
				2	Indicator	Transparent AS	7	Wrench fixed	Heatproof_ABS
				3	Screw X 6	304	8	Hexagon wrench	Tool stee
				4	Manual shaft	304	9	Waterproof cable connector	NiLon
				5	Oil seal	NBR	10	Lid seal	NBR
	PART 2 ser Manua		Success comes from our persistent pursue of perfect details. Excellence originates from our persistence of win-win philosophy.					Actuator
2

Normal on/off -wiring diagrams
Unique FAQs 1.What is the most common type of actuation for 3/4" valves?
Electric and pneumatic actuators are commonly used, depending on the application requirements and operational environment.
2.How do I choose the right actuator for my 3/4" valve?
Consider factors such as the type of fluid, required response time, frequency of operation, and available energy sources.
3.Can I retrofit a manual valve to an automated system?
Yes, many manual valves can be retrofitted with electric or pneumatic actuators, but compatibility should be verified.
4.What are the maintenance requirements for actuated valves?
Regular inspections of the actuator, valve seals, and connections are necessary to ensure optimal performance and prevent leaks.
5.Are there safety concerns with using actuated valves?
Yes, it's important to implement safety measures such as fail-safe mechanisms and regular system checks to ensure safe operation.
