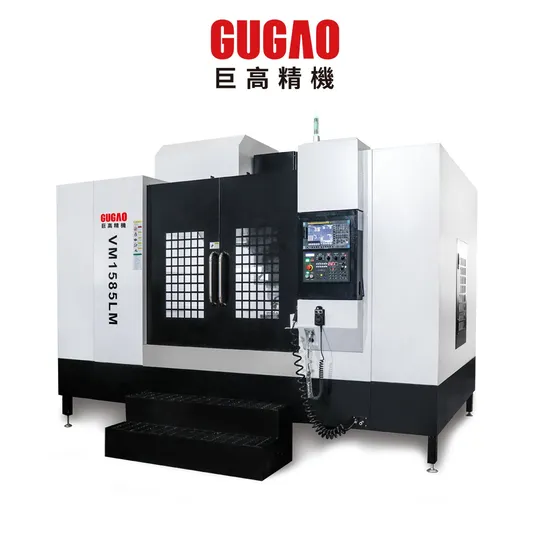

Vm1585lm High-Precision CNC Lathes and Milling Machines with Factory Direct Pricing and Quick Shipment Vmc CNC Machine Center

Product Description

VM1585LM Production Description
Whole machine: The machine tool adopts column fixing and cross slide structure, with X axis at the bottom and Y axis at the top, and the worktable has higher rigidity. The three axes adopt linear rolling guide rails, and the whole machine has high rigidity, high stability and high reliability. The large flow fully enclosed protection has beautiful appearance and is easy to operate and maintain.
Spindle box: It adopts high-speed spindle unit, the spindle adopts BT50 specification, and has central blowing function.
Tool magazine: The tool magazine adopts disc type tool magazine, which has reliable quality and stable performance.
Drive: The three-axis motor and high-precision ball screw adopt direct drive mode, and the ball screw is pre-stretched and installed to improve the transmission rigidity and positioning accuracy. The three axes adopt linear rolling guide rails, and the machine tool has small vibration when feeding at high speed and no creeping when feeding at low speed.
Main Paremeters

Name		Unit	Parameter
Travel	Three axis travel	mm	1500/850/750
	Distance from spindle end face to worktable center	mm	150~900
Worktable	Worktable Size(L×W)	mm	1600×850
	Maximum load-bearing capacity of worktable	kg	1600
	T-shaped slot (width × spacing × quantity)	mm	22×160×5
Spindle	Spindle diameter Spindle bore taper		∅155/BT50
	Max. spindle speed	rpm	8000
	Motor power	kW	15/18.5
Feed Speed	Three axis fast moving speed(X/Y/Z)	m/min	20/20/20
	Three axis feed speed	m/min	10/10/10
Magazine	Magazine capacity		24
	Max tool diameter/length/weight		∅112mm/350mm/15kg
	Maximum tool diameter (full tool/adjacent empty tool)	mm	112/200
	Tool exchange time (T-T)	s	3
Accuracy	(X/Y/Z) Positioning accuracy	mm	0.012
	(X/Y/Z) repositioning accuracy	mm	0.008
Others	Air source/pressure		280L/min 6~8 Bar
	Total electrical capacity	KVA	35
	Water Tank Volume	L	430
	(X×Y×Z)Machine size (X×Y×Z)	mm	4320×4600×3600
	Estimated weight	kg	14500
