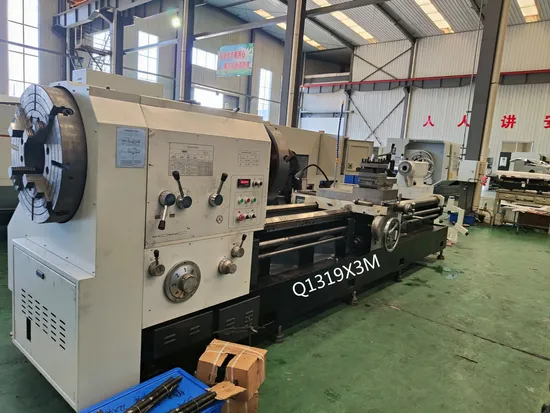

Q1319X3m Oilfied Industrial Pipe Thread Lathe with Two Chuck

Q1319X3m Oilfied Industrial Pipe Thread Lathe with Two Chuck

US$80,000.00 1 Set (MOQ)

Basic Info.

Model NO.
Q1319X3M
Type
Horizontal Lathe
Processing Accessory
Manual
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Normal Precision
Condition
New
Center Distance
3m
Use
Oilfield
Mainly Aim
Machining Thread
Machining Material
Metal and Other
Transport Package
Pallet
Specification
3m
Origin
Dezhou
HS Code
8458110090
Production Capacity
3000

Product Description

Q1319CNC pipe thread lathe
Product Parameters
SPECIFICATION NT Q1313 Q1319C Q1322C Q1325C Q1327C

Capacity		 Swing over bed mm 630/800 630/800 630/800 800 800
Swing over cross slide mm 340/520 340/520 340/520 480 480
Distance between centers mm 1500/3000/6000 more 1500/3000/6000 more 1500/3000/6000 more 1500/3000/6000 more 1500/3000/6000more
Pipe threading range mm 30-126 50-193 50-220 50-250 50-270

Spindle		 Guideway width mm 550 550 550 600 600
Max.load capacity 3 3 3 4 4
Spindle bore mm 130 206 225 255 280
Spindle speed steps FWD.18step/REV.9step NF.4 steps NF.4 steps NF.4 steps
Spindle speed range rpm 30-800 20-600 20-420
Chuck mm φ400 3-jaw manua φ520 4-jaw manual φ630 4jaw manual φ680 4jaw manual
turret turret/tool post Manual 4 position Manual 4 position Manual 4 position
Tool shank size mm 30x30 32x 32 32x32 32x32 32x32
feed X axis travel mm 320/420 320/420 320/420 420 420
Z axis travel mm 1350/2850- 1350/2850- 1350/2850- 1250/2750 1250/2750
X axis feed grade/range mm 64/0.1-1.52 22/0.02-0.45 22/0.02-0.45 22/0.02-0.45 22/0.02-0.45
Z axis feed grade/range mm/r 64/1.6-24.3 26/0.07-1.33 26/0.07-1.33 26/0.07-1.33 26/0.07-1.33
X axis rapid traverse mmi 2300 2300 2300 2300 2300
Z axis rapid traverse mma 4000 4000 4000 4000 4000
Metric thread mm 50/1-24 1-15 1-15 1-15 1-15
Inch thread T.PI 26/14-1 14-1 14-1 14-1 4-1
tailstock quill diameter mm φ100 100 100 φ120 120

Tailstock		 Tailstock taper MT5 WT5 MT5 MT6 MT6
tailstock quill travel mm 250 50 250 250 250
motor Main spindle motor kW 11 11 11 15 15
Rapid transversal motor kW 0.3 0.3 0.3 1.1 1.1
Cootlant pump motor kW 0.125 0.125 0.125 0.125 .125
Dimension Width x Height mm 1500x1500 1550x1540 1650x1550 1700x1600 1700x1600
Length mm 3700/5200 3700/5200 3700/5200 4100/5600 4100/5600
Weight Net weight 4.0/5.2 4.3/5.5 4.5/5.7 8.0/9.0 8.0/9.0
Please note:machine bed length can customize according to real work demand.

SPECIFICATION UNIT Q1327 Q1332 Q1338 Q1343 Q1350
Capacity Swing over bed mm 1000 1000 1000 1000 1200
Swing over cross slide mm 610 610 610 610 710
distance between centers mm 1500/3000/6000 more 1500/3000/6000 more 1500/3000/6000 more 1500/3000/6000 more 1500/3000/6000more
Pipe threading range mm 130-270 190-320 190-380 270-430 330-510

Spindle		 Guideway width mm 755 755 755 755 765
Max.load capacity 6 6 6 6 6
Spindle bore mm 280 330 390 440 520
Spindle speed steps FWD.12 steps FWD . 9step FWD.9 steps FWD.9 steps FWD.9 steps
Spindle speed range pm 16-380 7.5-280 6-205 4.9-180 4.9-180
Chuck mm φ800manual
four jaw		 φ780 electrical four jaw 850 electrical four jaw φ1000 electrical four jaw
Turret turret/tool post Manual 4 station
tool shank size mm 45x45 45x45 45x45 45x45 45x45

feed		 X axis travel mm 520 520 520 520 520
Z axis travel mm 1350/2850-5850 more 1350/2850-5850 more 1350/2850-5850 more 1350/2850-5850 more 1350/2850-5850 more
X axis feed grade/range 40/0.05-1.5 32/0.05-0.75 32/0.05-0.75 32/0.05-0.75 2/0.05-0.75
Z axis feed grade/range mm 40/0.1-3 32/0.1-1.5 32/0.1-1.5 32/0.1-1.5 32/0.1-1.5
X axis rapid traverse Mm/min 1870 1870 1870 187 187
Z axis rapid traverse Mm/min 3740 3740 3740 3740 3740
Metric thread mm 30/1-3 23/1-15 23/1-15 23/1-15 23/1-15
Inch thread T.P.I 27/28-1 22/28-2 22/28-2 2/28-2 2/28-2
tailstock quill diameter mm φ160 φ160 φ160 φ160 φ160

Tailstock		 Tailstock taper MT6 MT6 MT6 MT6 MT6
tailstock quill travel mm 300 300 300 300 300

Motor		 Main spindle motor kW 22 22 22 22 22
Rapid transversal motor kW 1.5 1.5 1.5 1.5 1.5
Coolant pump motor kW 0.126 0.126 0.125 0.125 0.125

Dimension		 Width x Height mm 2100x1600 2100x1650 2100×1700 2100×1700 2100×1850
length mm 4800/6300- 4900/6400- 4900/6400- 000/6500- 5000/6500-
Weight Net weight t 10.0/11.5- 11.5/13.0- 2.8/14- 13.0/14.5- 5.0/16.5-

pay term
Shipped per: BY SHIP
Payment Terms: 30% down payment T/T before order, and 70% TT before exfactory.
Price Terms: FOB Qingdao, china
Delivery Time:Eighty days since received down payment within a week at PI date
Warrenty period of main machines: One years, free part within one year if normal use.
Detailed Photos
