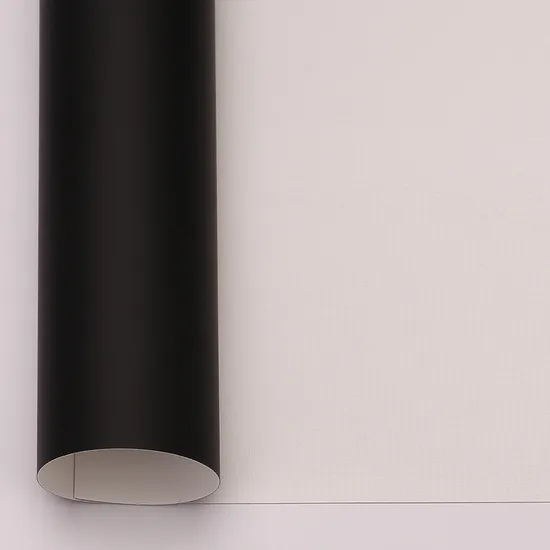

Fiber Glass Projection Fabric for Motorized Screen
Basic Info.
Model NO.
UND-TM008-1
Drive Mode
Fixed Screen
Material
White Plastic
Style
Wall-Mounted
Format
16:9/4:3
Fr
M1/M2/Nfpa701
Gain
1.1
Length
50-100m
View Angle
100
Thickness
0.38mm
Cleanable
Yes
Composition
2 Ply PVC, 1 Ply Super Flat Fabric
Color
White-Black
Mildew Resistant
Yes
Package
Hard Paper Tube
Application
Motorized Screen/Manual Screen/Tripod Screen
Transport Package
Hard Box
Specification
1.85M/2.15M/2.50M/3.20M
Trademark
cnuneed
Origin
China
HS Code
5903109000
Production Capacity
200 Rolls/ Per Month
Product Description
Product Name: Fiber Glass Projection Fabric
Items: UND-TM008-1Introduction: It is made of three layers, that is, high flame resisting black & white PVC with a high-strength and low-contractibility fiber glass base fabric which can enhance the hardness between them. After being treated by special technologies, all the PVC materials are free from extraneous odour. The fabric is in accordance with RoHS standard and its thickness is 0.38mm. Within the recommanded working temperature range, the fabric can keep its recommanded excellent flexibility and resiliency.
| Items | Test Result | Test Method |
| Name | Fiber Glass Projection Fabric | |
| Composition | 2 PLY PVC, 1PLY Fiberglass | |
| Gain | 1.1 | GB_T 13982-2011 |
| View Angle | 100 | GB_T 13982-2011 |
| Color Reproduction | 98% | ISF |
| FR Certification | M2/NFPA701 | GB/T8427-2008/NFPA701 |
| Environment | REACH/ROHS | (EU)2015/863 |
| Temperature Resistance | -20ºC--+60ºC | |
| Width | 1.85M/2.15M/2.50M/3.20M | |
| Application | Motorized Screen/Manual Screen/Tripod Screen/Floor Standing Screen | |
