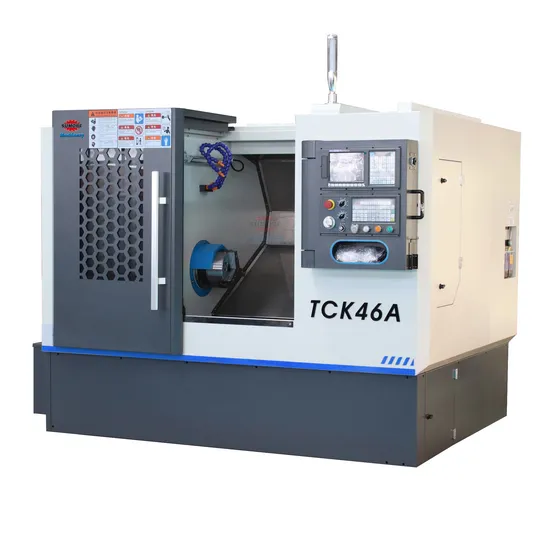

Cheap CNC Lathe Machine for Metal Tck46A Fanuc CNC Torna Lathe 3 Axis From China Tck46A Turret Slant Bed Lathe
| US$5,000.00-20,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
TCK46A
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Max Swing Over Bed mm
460 mm
Distance Between Centers
350 mm
Max. Swing Over Cross Slide
170 mm
Spindle Bore
56 mm
Spindle Spindle Power
3500rpm
Power(Kw)
7.5
Overall Diamension(Lxwxh)
2500X1700X1890 mm
CNC Control System
GSK/Siemens/Fanuc
Machine Weight
3000 Kg
Transport Package
Plywood Box
Trademark
SUMORE
Origin
China
HS Code
8458912090
Production Capacity
10
Packaging & Delivery
Package Size
250.00cm * 170.00cm * 189.00cm
Package Gross Weight
3000.000kg
Product Description
Product DescriptionSumore Torno Slant Bed Cnc Turning Center Machine TCK46A Cnc Machines Lathe For Sale
Product Parameters
| SPECIFICATIONS | Units | TCK46A |
| Swing over bed | mm | 460 |
| Swing over cross slide | mm | 170 |
| Distance between centers | mm | 350 |
| Spindle bore | mm | 56 |
| Bar capacity | mm | 45 |
| Spindle nose type | - | A2-5 |
| Spindle speed steps | - | Stepless |
| Spindle speed range | rpm | 3500 |
| Turret/tool post | - | 8/12 Hydraulic turret |
| Tool size | mm | 25 x 25 |
| X axis travel | mm | 240 |
| Z axis travel | mm | 400 |
| X axis rapid traverse | mm/min | 18000 |
| Z axis rapid traverse | mm/min | 18000 |
| Main spindle motor | kw | 7.5 |
| Tailstock quill diameter | mm | 70 |
| Tailstock quill taper | - | MT5 |
| Tailstock quill travel | mm | 80 |
| Tailstock travel | mm | 200 |
| Guide rail type | - | Slant bed linear rail |
| Machine weight | kg | 3000 |
| Overall dimension | mm | 2500x1700x1890 |
Detailed Photos
Other TCK Series Products:TCK46A, TCK36A,TCK6350,TCK50AY.
Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
