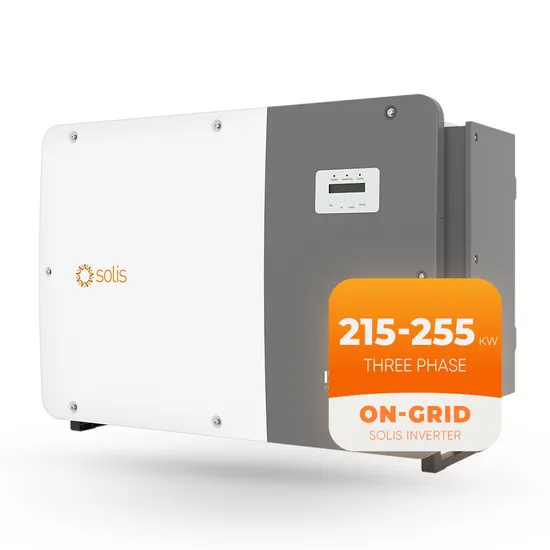

Solis Grid Tied Solar String Inverter 210kw 230kw DC AC Three Phase Inverter Price
Basic Info.
Model NO.
3 Phase 215-255KW
Nature of Source Flow
Active Inverter
Phase
Three
Output Power
>1000W
Certification
SAA, CE, ROHS, ISO9001, CCC
Brand
Solis
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Half-Bridge Type
Nature of Wave String
Sine Wave Inverter
Input Voltage
480-1500 V
Output Voltage
3/PE 800V
Size
1125*770*384 mm
Weight
113 Kg
Product Name
Solis on-Grid Solar Inverter
PV Input Power
250-300kw
MPPT Voltage Range
480-1500V
Rated Output Power
215kw/250kw/255kw
Topology
Transformerless
Communication
RS485, Optional: PLC
Transport Package
Carton Package
Specification
460W*563H*219D (mm)
Trademark
Solis
Origin
China
HS Code
8504403090
Production Capacity
1000pieces/Week
Packaging & Delivery
Package Size
43.00cm * 33.00cm * 13.00cm
Package Gross Weight
11.000kg
Product Description
Product DescriptionTechnical specifications
| Models | 215K-PLUS | 250K | 250K-PLUS | 255K | 255K-PLUS |
| Input DC | |||||
| Max. input voltage | 1500 V | ||||
| Rated voltage | 1080 V | ||||
| Start-up voltage | 500 V | ||||
| MPPT voltage range | 480-1500 V | ||||
| Max. input current | 9*30 A | 14*26 A | 12*30 A | 14*26 A | 12*30 A |
| Max. short circuit current | 9*50 A | 14*40 A | 12*50 A | 14*40 A | 12*50 A |
| MPPT number/Max. input strings number | 9/18 | 14/28 | 12/24 | 14/28 | 12/24 |
| Output AC | |||||
| Output power | 215 kVA @ 30°C / 205 kVA@ 40°C / 195 kVA @ 50°C | 250 kVA @ 30°C / 235 kVA @ 40°C /220 kVA @ 50°C | 255 kVA @ 30°C / 235 kVA @ 40°C /220 kVA @ 50°C | ||
| Rated grid voltage | 3/PE, 800 V | ||||
| Grid voltage range | 640-920 V | ||||
| Rated grid frequency | 50 Hz / 60 Hz | ||||
| Max. output current | 155.2 A | 180.4 A | 184.0 A | ||
| Power factor | >0.99 (0.8 leading - 0.8 lagging) | ||||
| THDi | <3% | ||||
| Efficiency | |||||
| Max. efficiency | 99.0% | ||||
| EU efficiency | 98.8% | 98.7% | 98.8% | 98.7% | 98.8% |
| Protection | |||||
| DC reverse-polarity protection | Yes | ||||
| Short circuit protection | Yes | ||||
| Output over current protection | Yes | ||||
| Surge protection | DC Type II / AC Type II | ||||
| Grid monitoring | Yes | ||||
| Anti-islanding protection | Yes | ||||
| Temperature protection | Yes | ||||
| Strings monitoring | Yes | ||||
| I/V Curve scanning | Yes | ||||
| Night time SVG function | Yes | ||||
| Integrated PID recovery | Yes | ||||
| Integrated DC switch | Yes | ||||
| General Data | |||||
| Dimensions (W*H*D) | 1125*770*384 mm | ||||
| Weight | 109 kg | 113 kg | |||
| Topology | Transformerless | ||||
| Self-consumption (night) | <2 W | ||||
| Operating ambient temperature range | -30 ~ +60°C | ||||
| Relative humidity | 0-100% | ||||
| Ingress protection | IP66 | ||||
| Cooling concept | Intelligent redundant fan-cooling | ||||
| Max. operation altitude | 4000 m | ||||
| Grid connection standard | EN50549, G99, AS4777.2, VDE0126, IEC61727, VDE4110, CEA 2019 | ||||
| Safety/EMC standard | IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4 | ||||
| Features | |||||
| DC connection | MC4 connector | ||||
| AC connection | OT terminal (max. 300 mm²) | ||||
| Display | LCD | ||||
| Communication | RS485, Optional: PLC | ||||
