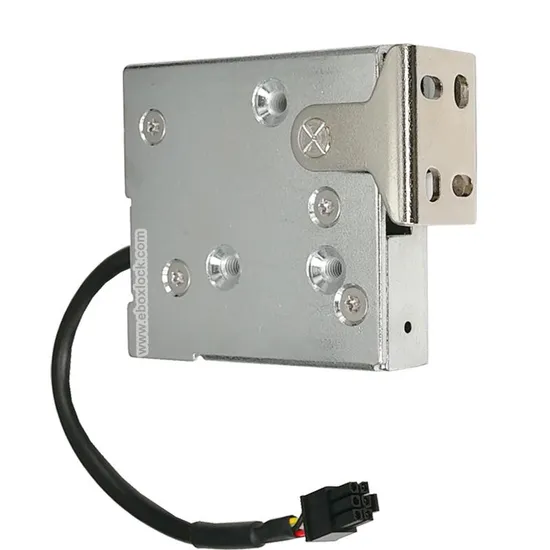

Electronic Rotary Latch for Safe and Vending Machine

Product Description

Superior Heavy Duty Electonic Cabinet Lock MD1220S is a high security access control solution for cabinets, drawers, safe and lockers. Robust all metal construction allows MD series cabinet lock operates against heavy mechanical load. An optional built-in door sensor provides reporting of open/ close status and mechanical kits for manual override in case of power failure.
Surface mounting either vertically or horizontally offers easy and flexible installation. The cabinet lock is compatible with any access control system or standalone cabinet locking With easy push-to-close operation, the lock is designed with internal spring rod to push door open when electrified. It simplifies the access
control of enclosures in a wild variety of applications.
Features
Superior heavy duty metal construction Zinc-plated steel housing­ Surface-mounted compact electric lock Convenient mechanical override enables manual release during power failure Operates against heavy mechanical load Accepts access control signals from wireless RF key fobs or proximity cards, numeric keypads, card readers, Can be fitted to locker, mail box and drawers etc
Specifications

Operation Voltage	12/24VDC intermittent ±10%
Power Consumption	12V DC 2000mA
Operation Mode	Fail Locked
Holding Force	600KG
Maximum power on time	Less than 30 second
Solenoid	Rated for intermittence use
Cycle Rating	More than 1,000,000 times
Working Temperature	-20ºC ~ +60ºC
Dimensions LxWxH	72mm*67mm*18mm
Gross Weight	250g
Protection Class	IP35
Compliance	CE and RoHs certificate

Available options:
Extension cable with a variety of connectors
Plated-steel and stainless steel outer casing options
Mechanical override option for manual unlock in case of power failure
Rear or front mount mechanical override options
Optional push to open strength
Built-in microswitch for door open/close output signal
Able to add customer's model no. and logo
Able to customize cable and connectors for customer

Options for customization
Voltage	Current	Trigger Spring	Mounting holes	Material	Cable	Connector
9V 12VDC 24VDC 48V	1500mA 2000mA	10N 25N 35N	M5x16 thread(standard) M5x25 thru	Steel (standard) Stainless steel	Twisted RVV Flat cable	Molex KF2510 PH RJ11

Applications
The electronic cabinet lock is ideal for various applications as following:
Electronic lockers for storage or delivery
Steel cabinet or metal furniture
Retail display cases and drawers
Filing cabinet
Utility cabinets and drawers
Key cabinet
Museum or retail product display cases
Pharmaceutical cabinets and drawers
Electronic mailbox and lock box
