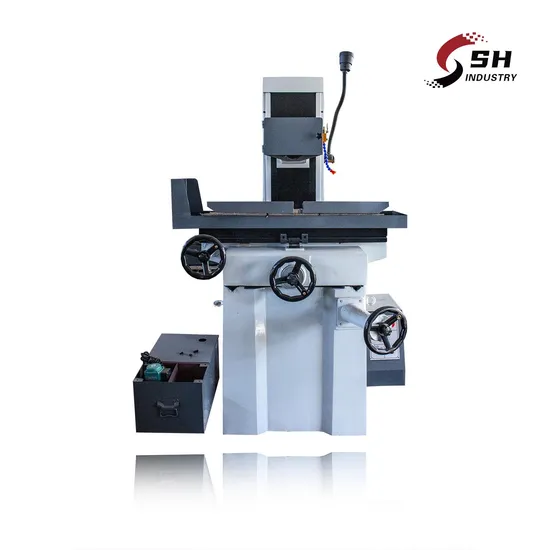

High Precision Grinding M1022 High Quality Metal Manual Machine for Sale

Product Description

Product Description
High Precision Grinding M1022 High Quality Metal Manual Machine for Sale
Product Parameters
The main performance characteristics:1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.2. Worktable ball track using steel materials for high precision steel balls, abrasion resistance, easily moved and labor saving, and can be greatly improve work efficiency.3. Former after skidway through careful scraping flower, not only slide smoothly, and wear-resisting, maintain good accuracy, flexible and convenient operation. manual worktable driven by synchronous belt transmission, wear well.4. The spindle adopts super precision ball bearing P4, after strict selection after the pre pressure measurement, assembled in the greenhouse, and with the labyrinth design completely waterproof, In order to ensure the service life of the bearing and the grinding surface roughness.5. No vibration, low noise motor spindle.6. According to the needs of users with a permanent magnet sucker or electromagnetic sucker.Application:Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.

main technical parameters	Specifications					Units	M1022
	workbench	Worktable size (L * W)				mm	540×250
		Max. travel of table (L * W)				mm	560×260
		Table T slot (slot number x slot width)				mm	1×14
	Grinding head	The grinding wheel size (o. d * w * i. d.)				mm	φ200×20×φ31.75
		Distance spindle center line to working table				mm	420
		Grinding wheel speed			50HZ	r/min	2850
					60HZ	r/min	3360
	The amount of feed	The vertical (up and down) feed handwheel feed			Handwheel per turn	mm	1.25
					Handwheel per lattice	mm	0.01
		Transverse (front and rear) feed handwheel feed			Handwheel per turn	mm	4
					Handwheel per lattice	mm	0.02
	Motor power			Spindle motor		kw	1.5
				Cooling motor		W	40
	working accuracy	The process surface of the base level of the parallel degree				mm	00:00.0
		Surface roughness				μm	Ra0.32
	Machine weight		Net weight			kg	850
			Gross weight			kg	950
	External size (L * w * h)					mm	1680x1140x1760
	Packing size (L * w * h)					mm	1200x1400x1940

Realistic photos
Detailed Photos
Our Advantages
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
