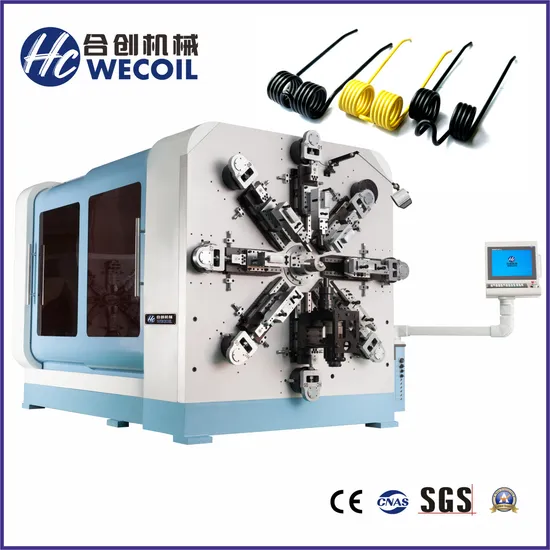

WECOIL HCT-1280 8mm 12-16 axis CNC Camless Agricultural Torsion Spring Machine
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
HCT-1280WZ
Warranty
1-year
Condition
New
Certification
ISO 9001:2000, CE
Automation
Automatic
Suitable for
Rubber, Copper, Carbon Steel, Stainless Steel
Type
Cnc Bending Machine
Number of axis
12-16 axis
Wire size range
3.0-8.0mm
Max outside diameter
130mm
Wire feeding speed
100m/min
Spring index
4
Wire feeding servo motor
15.0kw
Quill servo motor
1.8kw
Wire rotation servo motor
7.5kw
Forming and cutting off servo motor
4.4*8kw
Spinner servo motor
1.8kw
Optional servo cutter servo motor
1.5kw
weight
100000kg
Transport Package
Vacuum Packaging
Specification
L5000*W2300*H2800mm
Trademark
WECOIL
Origin
China
HS Code
84633000
Production Capacity
500 Sets
Product Description
HCT-1280WZ 12 axis Camless CNC Versatile Spring Rotating Forming Machine, is composed by Taiwan computer system and Japan servo motor special designed with no rocker arm and camless, the slide base is separately controlled by eight servo motor, Feeding axis, Quill rotating axis, Wire rotating axis and Spinner axis.The crank connecting link system are include eight knife rest, eight knife rest are separately driven by eight Yaskawa servo motor through VRB reducer, no influence from each other, make the spring forming handy and easy. Controlled the feeding and wire rotation system synchronous through CNC program, at the same time the feeding accuracy can be reach within 0.1mm during wire rotation.It composed of crank connecting link system, feeding and rotating system, coiling straightening system and quill system. It can install the device of hydraulic pressure scissors, low noise; the damage is zero on mandrel and machine. Largely increased the spring making range, it is precise, stable and easy to operate.
It is suitable for making kinds of tension spring, torsion spring, compression spring, scroll spring, tower spring, flat wire spring and such highly difficult springs.
Certificates
Packaging
Please feel free to consult us about your project, thank you!
