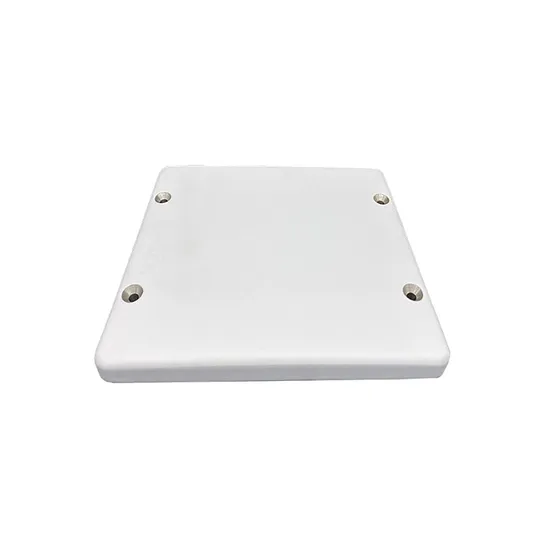

Bd2-B1, GPS-L1 and Glonass G1 Anti-Jamming Antenna for The Satellite Navigation Receiving Terminal Anti-Interference

Bd2-B1, GPS-L1 and Glonass G1 Anti-Jamming Antenna for The Satellite Navigation Receiving Terminal Anti-Interference

US$3,900.00-4,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
SWT-JRT-BG236G
Model No.
Swt-Jrt-Bg236g
Center Frequency
1568 MHz
Output Signal Impedance
50 Ohm
Range of DC Voltage
9V~36V
Range of Working Temperature
- 40 ~ 85
RF Socket
SMA-K
Weight(Kg)
< 1.5 Kg
Transport Package
Standard Packing
Trademark
OEM
Origin
Nanjing, China
Production Capacity
30000pices/Year

Product Description

Bd2-B1, GPS-L1 and Glonass G1 Anti-Jamming Antenna for The Satellite Navigation Receiving Terminal Anti-Interference Product Description
1.It has the ability to receive BDS-B1, GPS-L1,BDS-B2, GPS-L2,GLONASS-G1 frequency navigation signals at the same time.
2.Have the ability to resist the jamming of BDS-B1, GPS-L1 frequency signal
3.It has the ability of receiving and amplifying GLONASS-G1 and BDS-B2,GPS-L2 navigation signals with low noise, and synthesizing the output with BDS-B1 and GPS-L1 navigation signals after anti-jamming.
4.the ant-jamming software can be upgraded online through serial port.
Number of channels4 channels B1/L1,1 channelBDS-B2,1 channel GLONASS-G1Weight0.94kg
Output signal power-60dBm±5dBmDimension175mmx150mmx23.6mm
(Height without connector );
Assemble hole:155mm x 75mm
Anti-interference performance
(ISR)
Three broadband(4MHz):
80dB~85dB;
Single broadband(4MHz):
90dB~95dB
Power SupplyDC9V~DC36V
Communication connectorSerial port, TTL voltagePower consumption10.1W(28V/0.36A)
Working Temperature-40ºC~85ºCPhysical interfaceRF:SMA;
Power supply:J30J-9ZKP

More products
Company Profile
Nanjing Shinewave Technology Co., Ltd. is a company specializing in the research and development, production and sales of RF microwave antennas, active and passive components and subsystems. The company's product field covers a variety of microwave communication devices, including anti-jamming antennas, RF power amplifiers, T/R modules, VCO/DROs, microwave filters, duplexers, frequency sources, and related subsystems, which are widely used in mobile communications, radar, and other fields.
In order to meet the special needs and higher requirements of customers, in addition to standard products, we provide customized product development methods. We always provide the customers with fast and high-quality products and services.Our R&D
Showroom
Participation in exhibitions
Why choose us
Staffing
Over ten years' OEM/ODM experience.
R&D team with doctor,master degree talents.
Products covers a wide range of applications.
TECHNICAL SUPPORT
Fast Response
Provide Project Technical AdviceTo Provide Customers With Quality Pre-Sales/Post-Sales Service
PRODUCT SUPPLY
Full Spectrum Products Available
Customer Needs As A Guide
To Provide Customers With Customized Products And Solutions
PRODUCT QUALITY
All Have Passed Various Performance Tests Before DeliveryTo Ensure That The Product is Good And Stable During Use Certifications

FAQ
Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models but charged.
Q2. What should I do if I don't know about frequency in my country?
Please feel free to contact us with your inquiry, we will find the frequency you need and offer help to your problems.
Q3. Do you accept OEM/ODM order?
Yes, we can customize the brand logo, colors, and frequencies.
Q4.Shipment Date
Sample20 business days
≤50 pcs60 business days
>50 pcs90 business days
>200 pcsNegotiate

Q5: Delivery Date of the sample by DHL/FedEx
USA/Canada/Europe/Asia3-5 days
Middle East/Latin American5-7 days
African3-7 days
