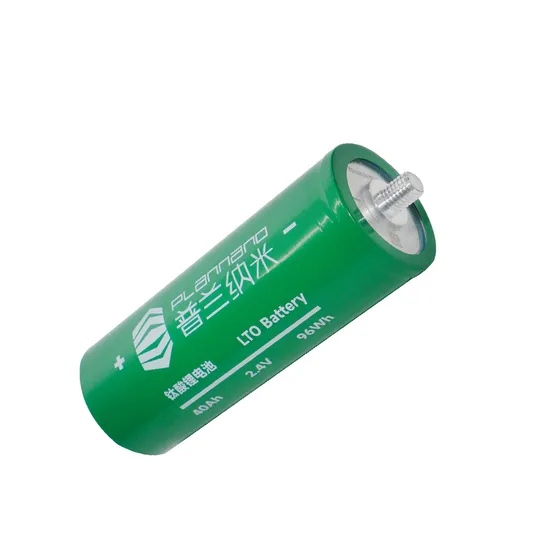

60165 2.4V 40ah Lithium Battery, Lithium Titanate Lithium-Ion Battery

60165 2.4V 40ah Lithium Battery, Lithium Titanate Lithium-Ion Battery

US$37.27
1-99 Pieces
US$36.57
100-499 Pieces
US$35.86
500-999 Pieces
US$35.16
1,000+ Pieces

Basic Info.

Model NO.
PLITR60165CSTB-40Ah-2.4V
Power
Unrestricted
Waterproof
Not Waterproof
IP Rating
IP54
Life
30000h
Electric Current Type
AC and DC
Input Voltage
Customizable
Diffuser
Unrestricted
Shell Material
Heat Shrink Sleeve
LED Chips
Unrestricted
Certification
CE, RoHS
Application
Stage, Swimming Pool, Fountain
Model
Plitr60138xstb-40ah-2.4V
Nominal Energy
96wh
Weight
1050g
Working Temperature
-40~+65
Transport Package
Oversea Carton Box
Specification
60*138mm
Trademark
Plannano
Origin
Tianjin
HS Code
8507600090
Production Capacity
100000pieces/Year

Packaging & Delivery

Package Size
19.36cm * 6.05cm * 6.05cm
Package Gross Weight
1.050kg

Product Description


Model PLITR60165XWLA-40Ah-2.4V
Nominal capacity 40Ah
Rated vlotage V 2.4V
Resistance ≤0.3 mΩ( AC , 1000 Hz
Energy Density 86.4Wh/kg
Dimension (Height*Diameter) 60*165
Nominal Energy 96Wh
Max. Constant Charging Current 6C1A 240A
Max. Constant Disc harging Current 8C1A 320 A
Operating temprature range -40ºC~60ºC
RT Cycle Life 25000

FAQ
Q1: What's inquiry reply time?
A1: We will reply your inquiry as soon as possible within 6 hours (maybe big time difference between us).
Q2: What's warranty?
A2: For the batteries, we have 2 years warranty. If any quality problems on our side occured during this warranty period,
we will replace them at our cost (including the shipping cost).
Q3: What's price?
A3: We provide reasonable price and recommend suitable batteries to our customers.
Q4: What's delivery time?
A4: We give 7~15 days delivery time for battery orders.
Q5: What's MOQ?
A5: We can accept small MOQ at the beginning to help customer enter into market firstly.
Q6: What's service?
A6: Our policy is to provide more faster & safer & easier service for our customers.
We can provide Technical Support.
We can accept TT, Western Union,etc. .
We can provide others service etc. .
Q7: What's marketing supports?
A7: We are willing to help you do the marketing together.
We can provide different free products, and we can also support you do some attractive suitable local advertisement.

Company Profile
Tianjin Plannano Technologies Ltd, Co. was founded by Professor Chen Yongsheng, an internationally renowned nanomaterial expert from Nankai University. It has three wholly-owned subsidiaries: Pulan Energy, Pulan Energy Storage, and Semi Technology.
Plannano is committed to the development and application of new nanomaterials in the field of new energy. It has outstanding technical advantages and rich process experi-ence in the fields of dry electrodes, LTO all-tab batteries, energy storage systems, and all-solid-state batteries. With its own R&D team, it can realize technical R&D and product development such as material preparation characterization, capacitor and battery cell assembly evaluation, energy storage system assembly test, and solid-state battery development.
Plannano has four major categories of main products, including supercapacitors, LTO batteries, industrial and commercial energy storage systems,and large-scale energy storage systems. Our products are exported to more than 50 countries and regions around the world and are widely praised by customers.
As the global leader in dry electrodes and safe energy storage systems, Plannano will utilize dry electrodes and LTO battery as the foundation, and all-solid-state batteries as the breakthrough, to accelerate green development and set sail for a zero-carbon future.
LTO Battery Series Features
Through innovative graphene modification technology and nanomaterials technology, Plannano has overcome the industrial problem of producing gases at high temperatures, with advanced technology, simplified process and low cost, which is more than 20% lower than the production cost of general products in the market.
Plannano LTO batteries can operate at -40°C to 60°C in ultra-low temperature harsh environments and have excellent multiplier performance:30C (high power charge/discharge).
The cycle lifes of the Plannano LTO battery can reach 30000 times, greatly reducing full life cycle operating costs.
Product model
Different kinds of cells like 20ah,30ah,35ah,37ah,40ah 45ah and 18650.
Different types like 18650,32140,60100,60138,60165 and 66160.
Application scenarios
1. Electric Vehicles (EVs) and Hybrid Electric Vehicles (HEVs)
The application of lithium titanate batteries in electric and hybrid vehicles is becoming increasingly widespread. Due to its high safety, long lifespan, and fast charging ability, LTO batteries are particularly suitable for these vehicles.
2. Public transportation
Lithium titanate batteries are also used in buses and trams. Its fast charging characteristics enable public transportation vehicles to charge in a short period of time, reduce parking time, and improve operational efficiency.
3. Energy Storage System (ESS)
LTO batteries are used in energy storage systems to balance grid loads and store energy from renewable energy sources such as solar and wind. Its high cycle life and fast charging and discharging characteristics make it very popular in the energy storage field.
4. Industrial applications
The applications of lithium titanate batteries in the industrial field include backup power sources, high-power tools, and electric forklifts. Its long lifespan and high power density make it an ideal choice for these applications.
5. Communication base station
LTO batteries are used as backup power sources in communication base stations to ensure continuous operation of communication equipment in the event of power grid failures. Its fast charging and long lifespan characteristics have made it widely used in this field.
6. Aerospace
Lithium titanate batteries are also used in the aerospace industry to provide efficient and reliable power for satellites, drones, and other aerospace equipment.
7. Medical equipment
In medical equipment, lithium titanate batteries are used for portable medical and emergency equipment, providing stable and reliable power supply.
