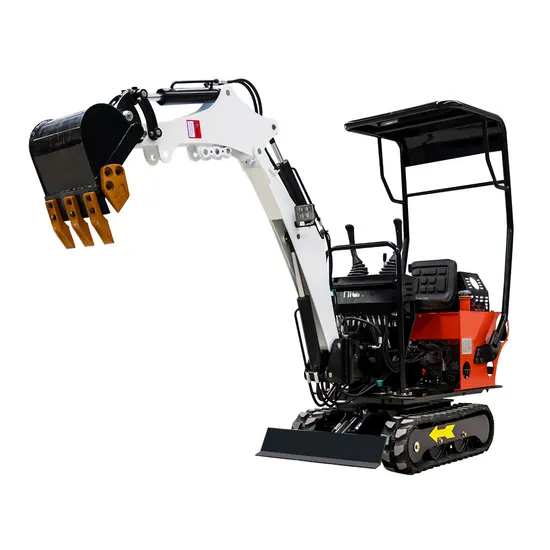

Top Selling Product 0.8 Ton Mini Excavator China Micro Excavator
| US$3,400.00-4,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
08
Usage
Special Excavator
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
>1.5m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Rated Speed
2.2 Km/H
Maximum Digging Height
2350 mm
Maximum Digging Depth
1200 mm
Max Digging Radius
2450 mm
MOQ
One Unit
Application
Construction Digging
Transport Package
Packed in Wooden Case
Specification
2430*720/780*1300mm(L*W*H)
Trademark
MDL
Origin
China
Product Description
0.8 ton Excavator
Product Parameters
| Performance Parameter | |
| Rated power | 12 HP |
| Bucket Capacity | 0.025 m3 |
| Engine Model | changchai |
| Weight | 650 kg |
| Max. digging force | 7.5 KN |
| Pump form | Single gear pump |
| Set working pressure | 14 Mpa |
| Swing speed | 12 rpm |
| Travel speed | 2.2 Km/h |
| Gradeability | 30° |
| Ground pressure | 19 Kpa |
| Working Range | |
| Max. dgging distance | 2450 mm |
| Max.digging depth | 1200 mm |
| Max.diging height | 2350 mm |
| Max.dumping height | 1600 mm |
| Min.Swing radius | 1100 mm |
| Max. Upgrade height of blldozer blade | 120 mm |
| Max. Digging depth of blldozer blade | 200 mm |
| Dimensions | |
| Total width | 720-780 mm |
| Total height | 1300 mm |
| Total length | 2430 mm |
| Min. ground clearance | 80 mm |
| Track ground length | 1140 mm |
| Track width | 150 mm |
Detailed Photos
Company Profile
Packaging & Shipping
FAQ
1.What kind terms of payment can be accepted?For terms of payment, L/C, T/T, Western Union (can be) could accepted.2. What certificates are availble in Machinery?For the certificate, we have ISO,EPA,SGS and CE.3.What about the delivery time?7-20 days after receiving the deposit.4.What about the warranty time?12 months after shipment or 2000 working hours, whichever occurs first.5.What about the Minum Order Quantity?The MOQ is 1 pcs.
6.How to show your manufacture to customers?It depends on you,if you have time,you can come to visit our manufacture. If you do not have time,then we can have vedio call,then show you around our workshop. Our workshop is working from 8:00 am to 5:00pm in Beijing Time!
