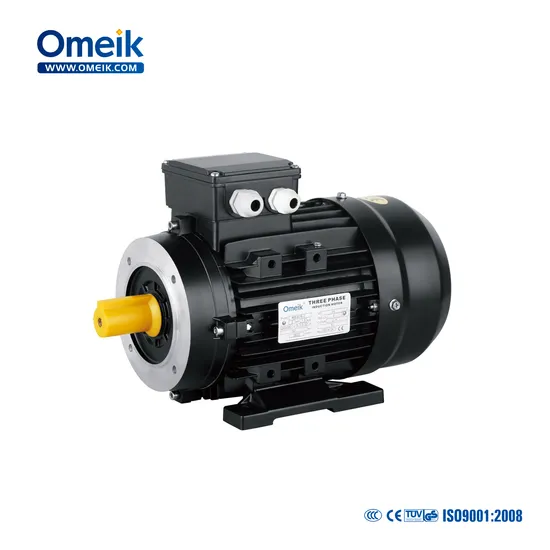

High Quality Low Price Low Noise Three Phase Aluminium Housing Induction Electric AC Motor

High Quality Low Price Low Noise Three Phase Aluminium Housing Induction Electric AC Motor

US$50.00 50 Pieces (MOQ)

Basic Info.

Model NO.
MS71-2
Number of Stator
Three-Phase
Rotor Structure
Winding Type
Casing Protection
Closed Type
Number of Poles
2
Starting Mode
Auto-induction Voltage-reduced Starting
Certification
ISO9001, CCC, CE
Brand
Omeik/OEM
Voltage
220V/380V, Any Voltage Available
Frequency
50Hz, 60Hz, 50/60Hz
Color
Green/ Blue/Black Any Color Available
Certificate
Ce
Transport Package
Carton Box / Plywood Case
Specification
100% COPPER WIRE
Trademark
OMEIK/OEM
Origin
Ningde, China
HS Code
8501520000
Production Capacity
10000PCS/Month

Product Description

1. MS series electric motors adopt the latest design and high quality material. MS series motors are conform to the IEC standard in function, appearance, output and other requirements.
2. The efficiency of MS series motors meet EFF2 standard in E. U., and can reach the EFF1 standard if requested.
3. MS series motors have a lot of advantages including high, energy saving, low noise, little vibration, light weight, small volume, reliable operation, up-to-date appearance, convenient operation and maintenance.

Specification as below:
TYPE Output (kW) Volt(V) Current (A) Speed(r/min) Eff(%) Power Factor Tstart/Tn Tmax/Tn Ist/In Weight(kg)
MS561-2 0.09 220/380 0.57/0.33 2800 62 0.68 2.3 2.4 6 4.6
MS562-2 0.12 220/380 0.67/0.38 2800 67 0.71 2.3 2.4 6 4.8
MS631-2 0.18 220/380 0.91/0.53 2800 69 0.75 2.2 2.4 6 5
MS632-2 0.25 220/380 1.17/1.68 2800 72 0.78 2.2 2.4 6 5.3
MS711-2 0.37 220/380 1.65/0.95 2800 74 0.8 2.2 2.4 6 6.5
MS712-2 0.55 220/380 2.33/1.35 2800 76 0.82 2.2 2.4 6 7
MS801-2 0.75 220/380 3.03/1.75 2800 77 0.85 2.2 2.4 6 9.5
MS802-2 1.1 220/380 4.42/2.55 2800 77 0.85 2.2 2.4 6 11
MS90S-2 1.5 220/380 6.01/3.84 2800 77 0.85 2.2 2.4 6 14.5
MS90L-2 2.2 220/380 8.61/4.98 2800 78 0.86 2.2 2.4 6 17
MS100L-2 3 220/380 11.1/6.4 2870 82 0.87 2.2 2.3 7 24.5
MS112M-2 4 380/660 8.2/4.7 2890 86 0.87 2.2 2.3 7 30
MS132S1-2 5.5 380/660 11/6.3 2900 86 0.88 2 2.2 7 42
MS132S2-2 7.5 380/660 15/8.6 2900 86 0.88 2 2.2 7 50
MS561-4 0.06 220/380 0.49/0.28 1400 56 0.58 2.3 2.4 6 4.6
MS562-4 0.09 220/380 0.67/0.39 1400 58 0.61 2.3 2.4 6 4.8
MS631-4 0.12 220/380 0.84/0.48 1400 60 0.63 2.2 2.4 6 4.8
MS632-4 0.18 220/380 1.12/0.65 1400 64 0.66 2.2 2.4 6 5
MS711-4 0.25 220/380 1.44/0.83 1400 67 0.68 2.2 2.4 6 6.3
MS712-4 0.37 220/380 1.94/1.12 1400 70 0.72 2.2 2.4 6 7
MS801-4 0.55 220/380 2.69/1.56 1400 74 0.73 2.2 2.4 6 9.5
MS802-4 0.75 220/380 3.48/2.01 1400 76 0.75 2.2 2.4 6 11
MS90S-4 1.1 220/380 4.74/2.75 1400 78 0.78 2.2 2.4 6 14.5
MS90L-4 1.5 220/380 6.31/3.65 1400 79 0.79 2.2 2.4 6 16
MS100L1-4 2.2 220/380 8.6/5.0 1430 81 0.82 2.2 2.3 7 23
MS100L2-4 3 220/380 11.7/6.8 1430 83 0.81 2.2 2.3 7 27
MS112M-4 4 380/660 8.8/5.1 1440 85 0.82 2.2 2.3 7 33.5
MS132S-4 5.5 380/660 12/6.9 1440 86 0.84 2.2 2.2 7 49.5
MS132M-4 7.5 380/660 15/8.6 1440 87 0.85 2.2 2.2 7 57.5
MS90S-6 0.75 220/380 4.0/2.3 910 73 0.7 2.2 2.2 5.5 14.5
MS90L-6 1.1 220/380 5.5/3.2 910 74 0.72 2.2 2.2 5.5 17
MS100L-6 1.5 220/380 6.9/4.0 940 78 0.74 2.2 2.2 6 22.5
MS112M-6 2.2 220/380 9.7/5.6 940 81 0.74 2.2 2.2 6 29
MS132S-6 3 220/380 12.4/7.2 960 83 0.76 2 2 6.5 48
MS132M1-6 4 380/660 9.4/5.4 960 84 0.77 2 2 6.5 49
MS132M2-6 5.5 380/660 13/7.5 960 85 0.78 2 2 6.5 57.5

SPARE PARTS:
PACKING WAYS
FAQ Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.
Q: What certifiicates do you have?
A: We have CE, ISO. And we can apply
