Universal Vertical Milling Machine Tool 4# Mill Machine
| US$4,600.00-5,600.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
KMS1054VS
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
ISO 9001
Condition
New
Working Surface of Table
254X1270(10"X50")mm
Tee Slot (Number and Width)
3X16mm
Max.Table Load
350kg
Longitudinal/ Cross/ Vertical Travel
700X405X405mm
Spindle Travel
100mm
Spindle Bore
R8/ISO30/ISO40
Distance From Spindle Nose to Table Surf
62~450mm
Range of Spindle Speed
65~4750rpm
Power of Spindle Motor
2.2kw
Typical Control System
Siemens 808/Fanuc Oi
Transport Package
Non-Fumigation Plywood Case
Specification
1430X1570X2300mm
Trademark
Kaite
Origin
China
HS Code
8459619000
Production Capacity
60 Sets/Month
Product Description
1. Picture2. Parameters
| Parameters | Unit | KMS1054S |
| Working Surface of Table | mm | 254X1372(10"X54") |
| Tee Slot (Number and Width) | mm | 3X16 |
| Max.Table Load | kgs | 300 |
| Longitudinal/ Cross/ Vertical Travel | mm | 920X410X400 |
| Spindle Travel | mm | 127 |
| Spindle Bore | R8/ISO30 | |
| Distance from Spindle Nose to Table Surface | mm | 172~756 |
| Max.Swivel of Milling Head | ° | 45°(F&R) 90°(R&L) |
| Range of Spindle Speed | rpm | 800~5440(16 steps) |
| Power of Spindle Motor | kw | 2.2 |
| Ram Travel | mm | 458 |
| Net Weight | kgs | 1250 |
| Gross Weight | kgs | 1450 |
| Packing Dimension | mm | 2300X1540X2000 |
3. Standard Accessories
| 1 | Hand lube pump |
| 2 | Drawbar |
| 3 | Toolbox with tools |
| 4 | Way cover |
| 5 | Operation manual |
| 6 | Simplified electrical box |
| 7 | Work light |
4.Optional Accessories
5. Company & Factory
Nantong Kaite Machine Tool Co., Ltd.
A Sino-US joint venture machine tool company with KENT INDUSTRIAL (USA) INC.
KAITE specializes in manufacturing precision surface grinding and milling machine since 1999.
KAITE supply the USA quality machines and with China price.
KAITE is located in Nantong city, Jiangsu Province where near Shanghai city and welcome to visit us!

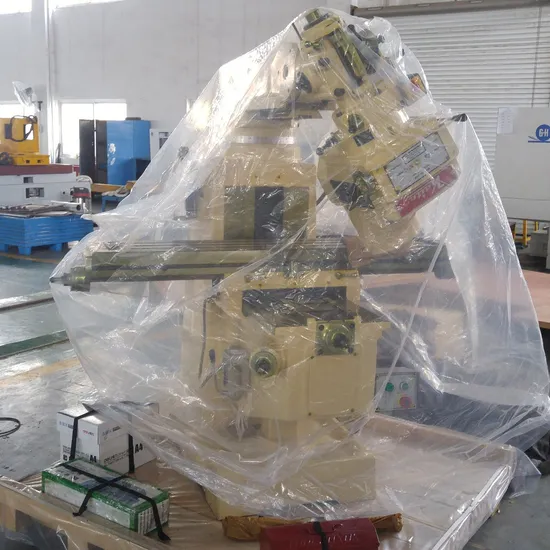

6. Delivery Picture
