Feed Drivetrain Thickness Planer for Board Solid Wood

Product Description

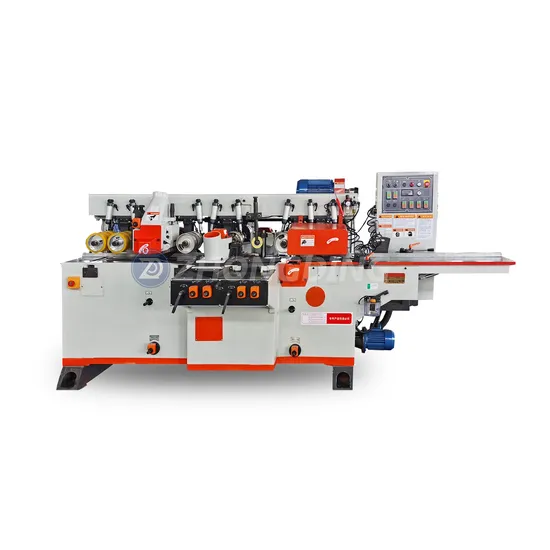

Wood Four Sided Planer with Four Axis Planing Woodworking Machine
MB4023
Product Description
We have different models, here are the details:

Model	MB4015	MB4023	MB6023
Working width	20-150mm	20-230mm	20-230mm
Working thickness	8-100mm	8-125mm	10-125mm
Feeding speed	5-30m/min	5-20m/min	5-20m/min
Feeding power	2.2kw	2.2kw	3kw
Lower horizontal shaft power	3kw	4kw	4~5.5kw
Upper horizontal shaft power	4kw	7.5kw	7.5~5.5kw
Max. Blade mounting dia.		120mm bottom 1, 140/rest, 140/base 1, 140/base 2, 140/rest	120mm bottom 1, 140/rest, 140/base 1, 140/base 2, 140/rest
Left and right vertical shafts power	3kw~3kw	5.5~5.5kw	5.5~5.5kw
Beam lifting power	0.37kw	0.75kw	0.75kw
Air pressure	0.3-0.4Mpa	0.3-0.4Mpa	0.3-0.4Mpa
Total power	15.57kw	25.45kw	37.25kw
Overall dimension		3100*1600*1600mm	3600*1600*1600mm
Weight	1300kg	2500kgs	3400kg

Detailed Photos
High quality materials are used in all our components:
The usage effect is shown in the figure below:
Certifications
Company Profile
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years.We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance,spare parts and technical advice.
We are committed to providing one-stop service for factory production.
Relying on the favorable geographical advantages of Qingdao Industrial Park,we have formed a series of panel-type furniture equipment such as table saws,edge banding machines,and CNC routers,as well as solid wood woodworking machines such as polishing machines,palner machine, press machine etc,which have been exported to lots of countries and regions,such as Europe,Russia,Southeast Asia,Middle East,North America,and Australia.Bring our products and services for more than 66 countrys people and customers.
We have established 7 complete system to gurantee all process of orders with timely and effective supervision and feedback.Our company has got ISO9001 international system certificate and CE security certificate for different kinds of machines.
Packaging & Shipping
Safe, thoughtful, meticulous, comprehensive packaging and transportation.
