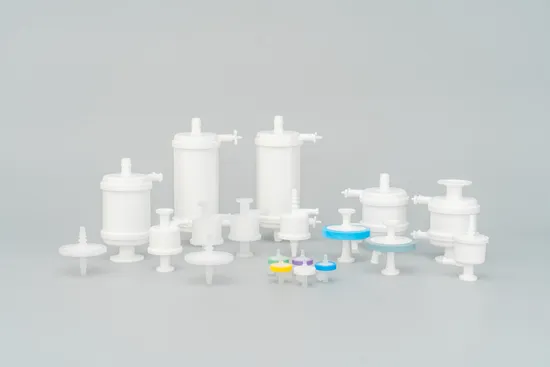

180cm2 550cm2 2′′ 4′′ 5′′ 10′′ 20′′ Hydrophobic PTFE Capusle/ Disk/Syringe Filter for Gas Filtration

Product Description

Shanghai GeShi Fluid Equipment Technology Co., Ltd
Shanghai GeShi, established in 1993, is a high-tech enterprise, specializing in the research, development and production of purification technologies such as filtration consumables & equipment, filtration & water treatment engineering. In December 2021, GeShi formally joined Shanghai LePure Biotech Co. Ltd. As an important part in the downstream of purification technology in pharmaceutical industry, we provide high-quality process solutions, and driven by technological innovation, GeShi has become one of the most trusted partners of global pharmaceutical enterprises.
Overview of GeShi Site
Total area: 11000m² , Including production area of 3000m²
Capacity expected to be 1,000,000 sets Product: gas & liquid capsules, cartridges, syringe, disc, integrity tester, filter housing and pharmaceutical special equipment, etc.
QMS: ISO 9001:2015
CNAS Accreditation
Steriazation:Capusle:Pre-sterilized: gamma irradiated before delivery.
Auclaving version: Non-sterile delivery, autoclavable
Cartridge:
30 cycles, 134ºC,30min,SIP or autoclaving
Max. Positive Pressure Difference ≤0.35 bar
Biologicat Information
Endotoxin <0.25EU/ml
Biocompatibilty: compliance with USP<87><88>
Order Infomaiton
LeSiever® capsule

Regin	Industry	Filter type	Material	Final Pore Size	Derivative	sterilization	Filter size	Connector	Packing
International	A-Hydrophobic membrane in Pharmaceutical Industry B-Hydrophilic membrane in Pharmaceutical Industry E- Electronic Industry F- F&B Industry	1.capsule 2.disk 3.syringe filter	S-PES Hydrophilic H-PES Hydrophobic F-PTFE Hydrophobic T-PTFE Hydrophilic V-PVDF Hydrophobic D-PVDF Hydrophilic N-Nylon 6 M-Nylon-66 P-PP G-GF C-CA E-MCE membrane			D- Gamma irradiable A- Autoclavable S- presterilization (Gamma)	D2- 25mm (syringe) D5- 50mm (disk) S1- 180cm² S2-180cm² (trap) S3-300cm² S5- 550cm² 02- 2inch 04- 4inch 05- 5inch 10- 10inch 20- 20inch	L- Luer(for D2) N- HB Stepped 1/4-1/2" 0- 1/4" (6.4mm)HB H- 1/2" (12.7mm)HB B- 3/4" (19.1mm)HB F- 3/4" (19.1mm)TC	1- 1pc/pk 3- 3pcs/pk 4- 4pcs/pk 6- 6pcs/pk X- 10pcs/pk Y-50pcs/pk

LeSiever® cartridge

Regin	Industry	Filter type	Material	Final pore size	Derivative	Up endcap	Filter size	Center tube and Connector	Gasket
International	1-Pharmaceu-tical Industry 2- Electronic Industry 3- F&B Industry	D-Filter Cartridge	S-PES Hydrophilic H-PES Hydrophobic F-PTFE Hydrophobic T-PTFE Hydrophilic V-PVDF Hydrophobic D-PVDF Hydrophilic N-Nylon 6 M-Nylon-66 P-PP G-GF C-CA			S- Triangular fin Z- Cylindrical sharp corner P- Flat end cap LP- Two flat port LHP- Two flat with steel PLP- one flat endcap, one flat port G- Heat resistanc	25-2.5 inch 05-5 inch 10-10 inch 20-20 inch 30-30 inch	H- SS center tube T- Hear resistance center tube D-222 E-226 DN- SS in 222 EN- SS in 226 SE-Small 226 SD-Small 222 P4-Pall 4440 M8-MP 5112 SF-Sartorius 15 H- SS center tube	S-Silicone rubber V-Fluorine rubber Y-EPDM rubber F-Nitrile butadiene rubber (NBR) WV-Outer tetrafluoroethylene rubber
